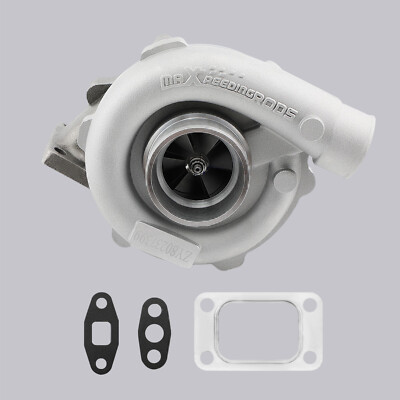

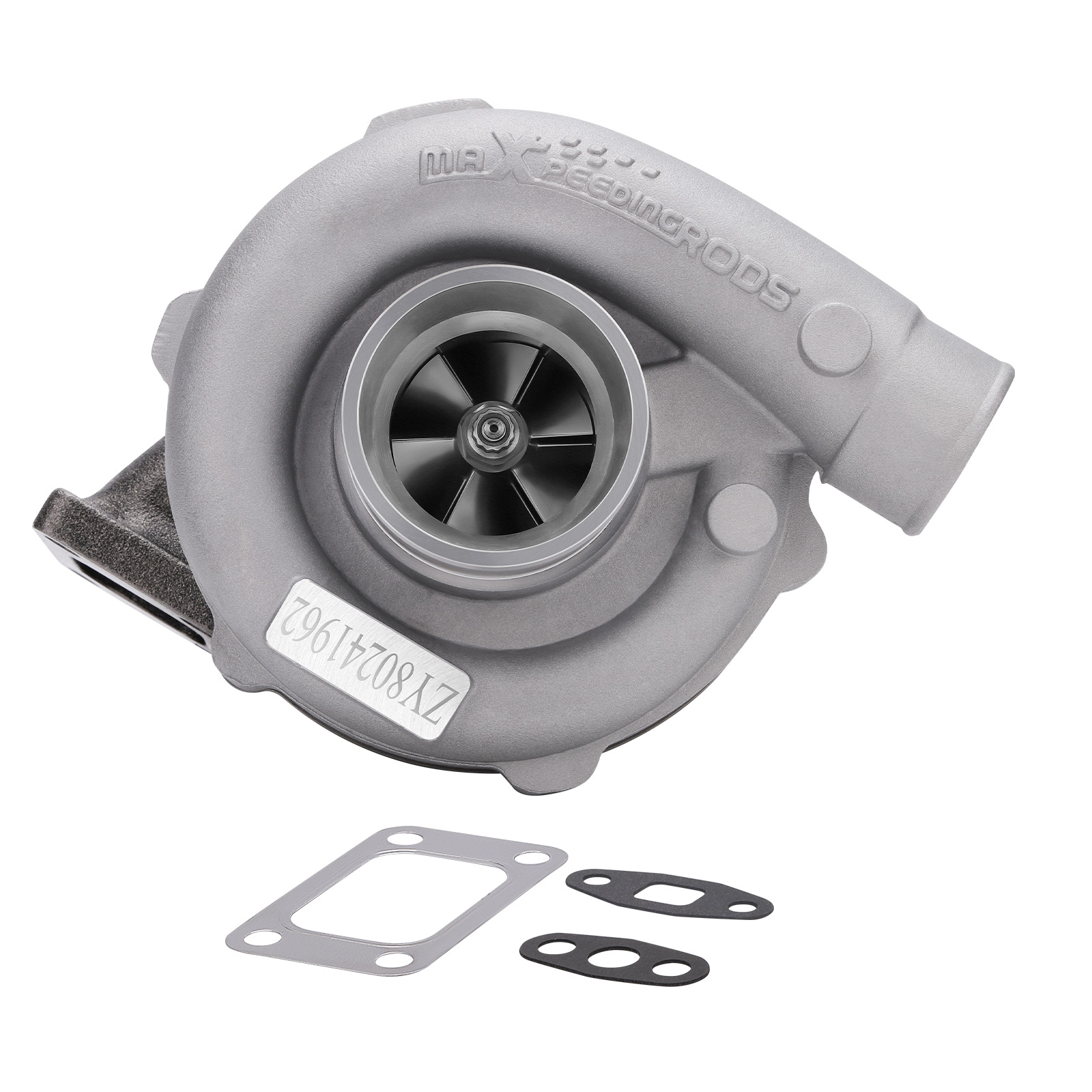

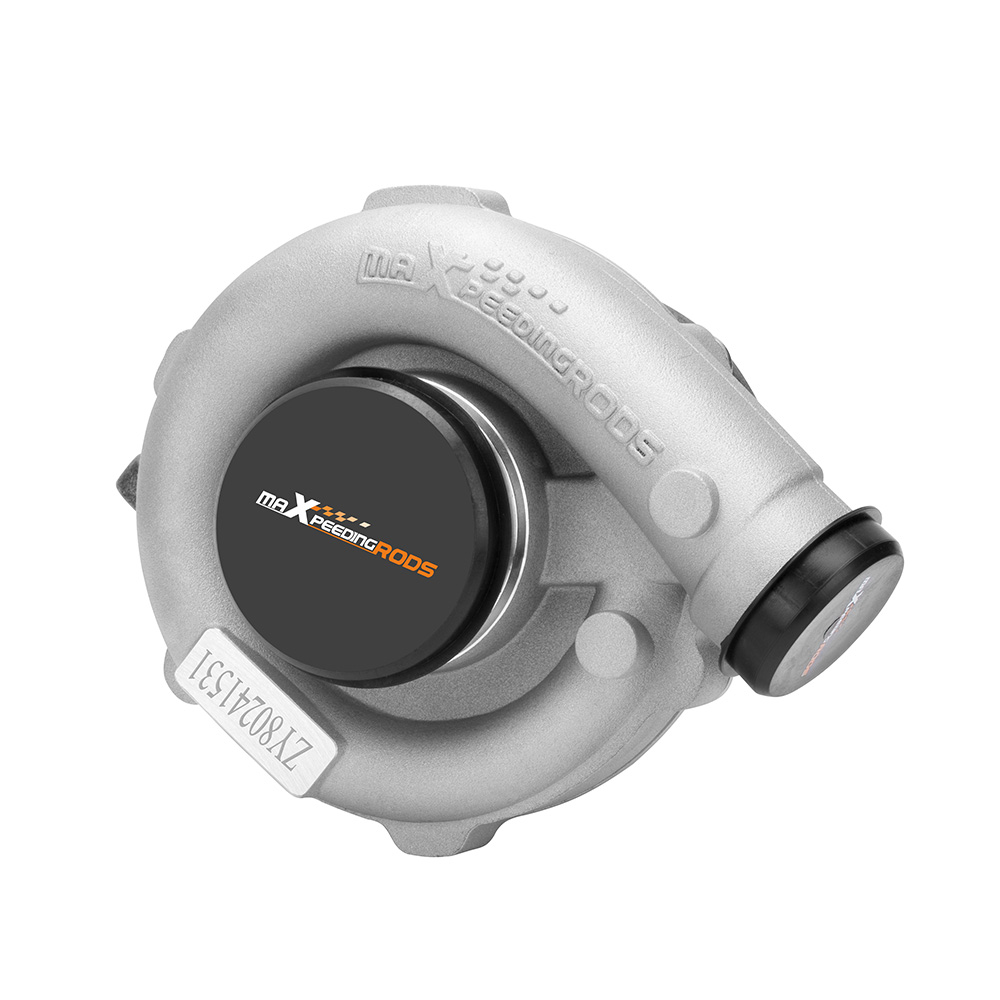

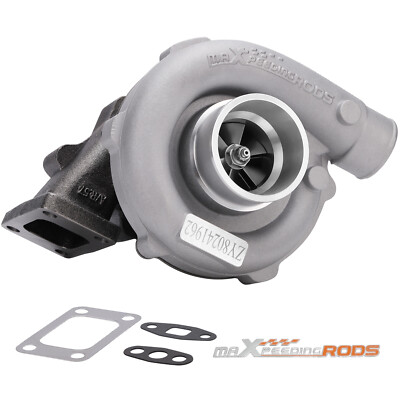

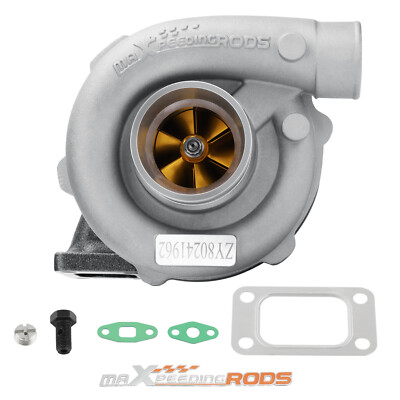

T3/T4 T04E 0.57 A/R Turbine For Ford 98-99 Turbocharger 400+HP 5 Bolts Flange
T3/T4 T04E 0.57 A/R Turbine For Ford 98-99 Turbocharger 400+HP 5 Bolts Flange
Fit for:
This item fits: Universal Application ( Modification might be required for some vehicles )
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18(1.2Bar)
Specific:

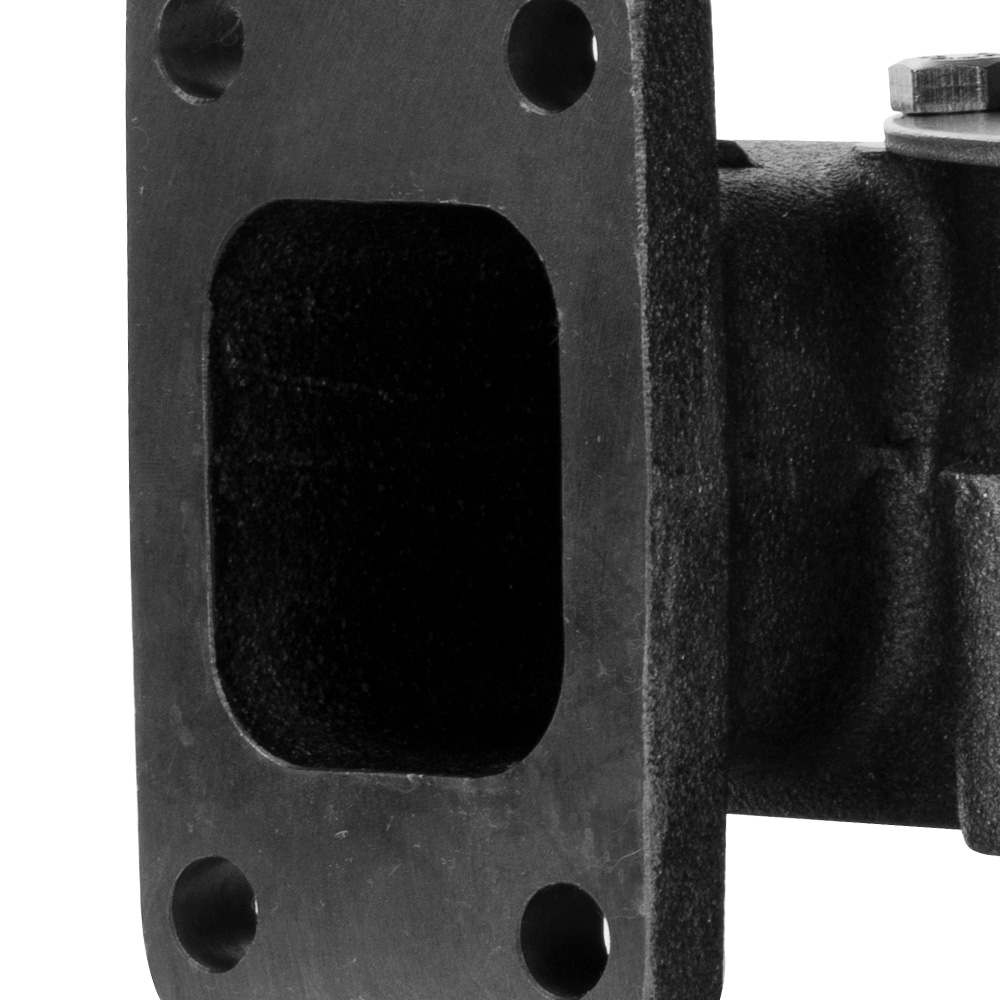

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

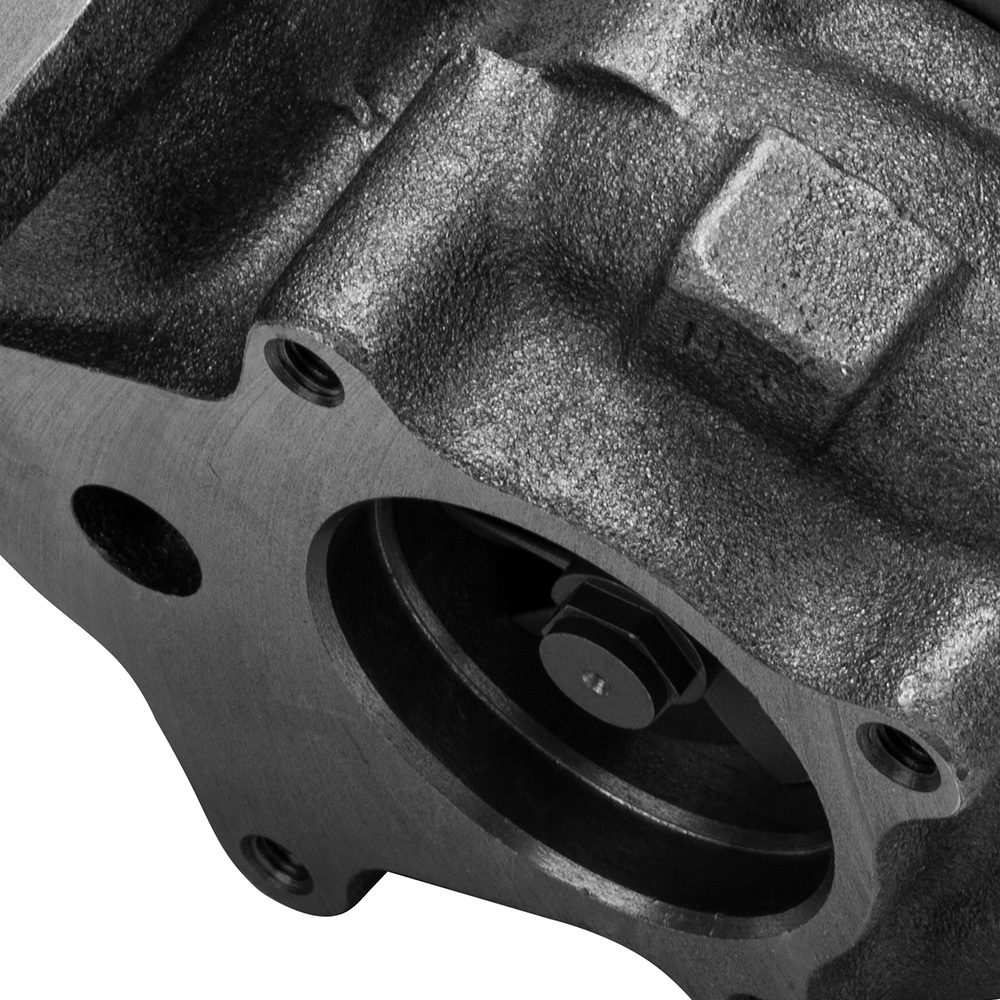

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Wastegate: w/o Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm

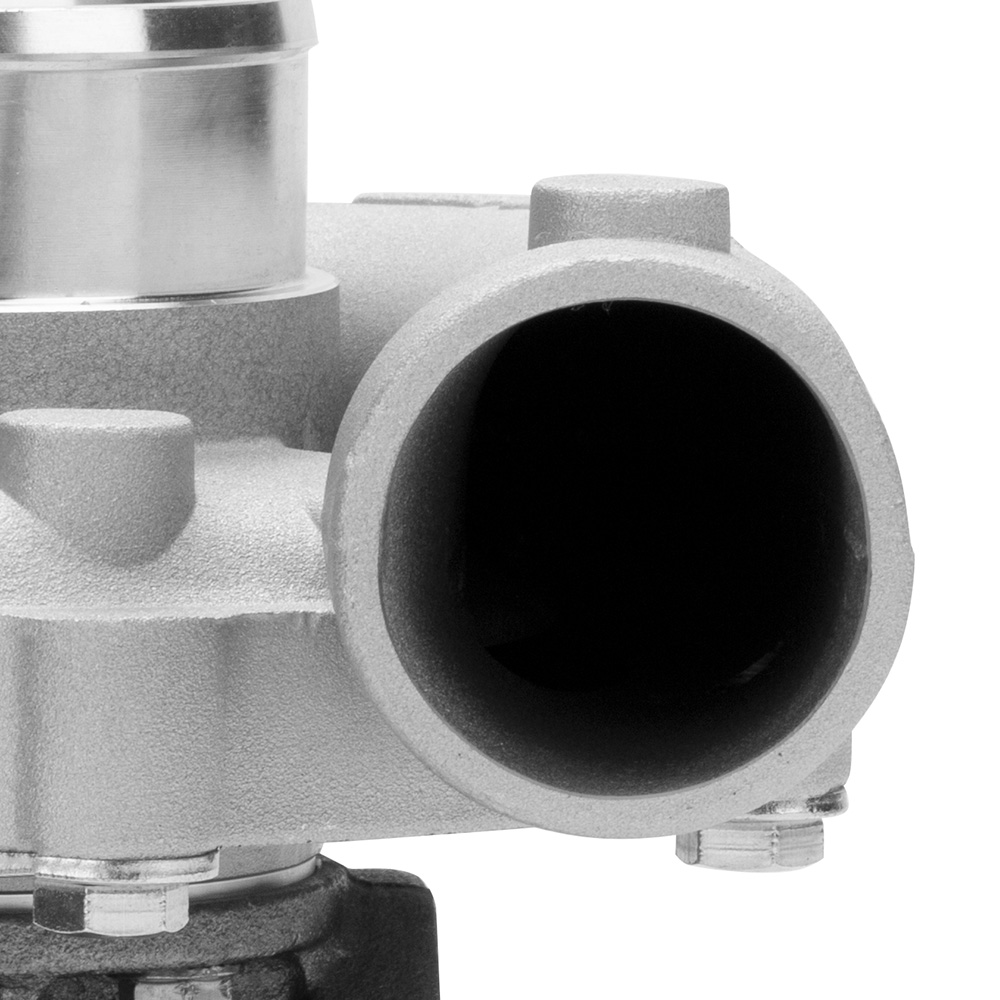

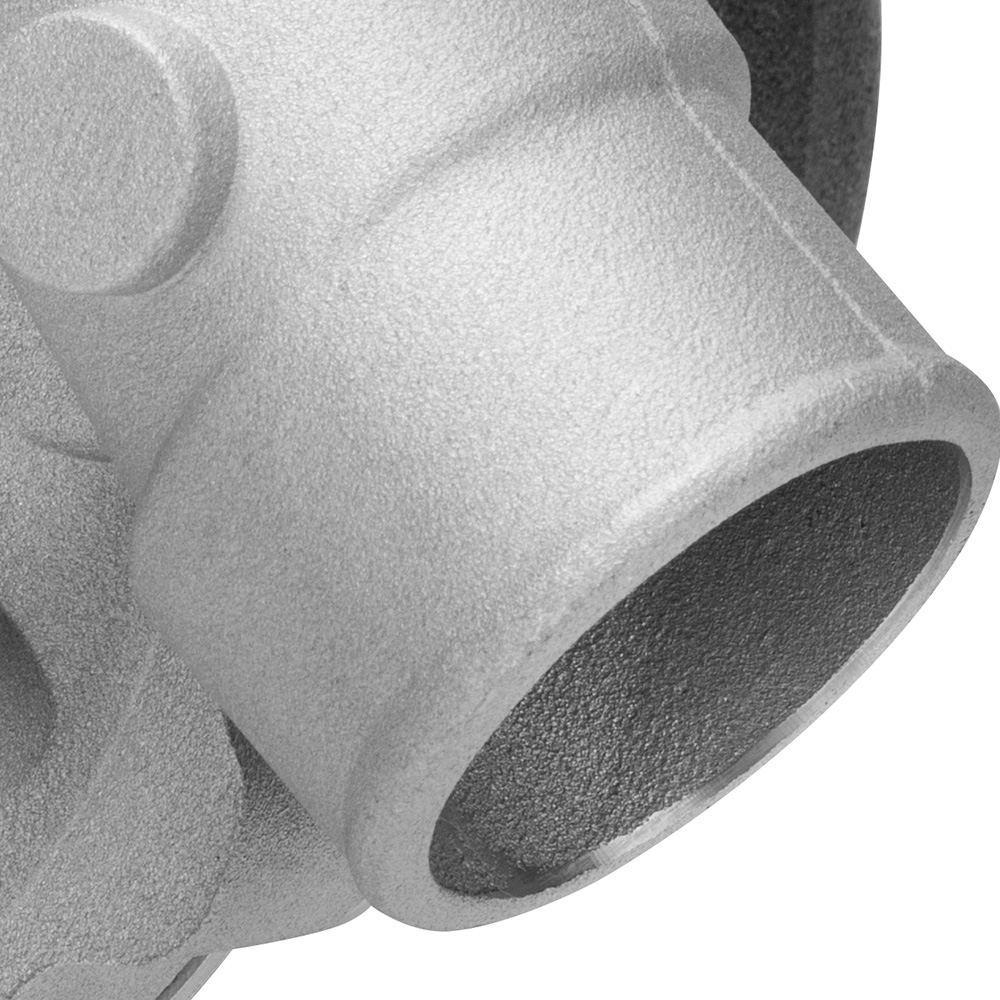

Compressor outlet: 42mm (inside diameter) , 52mm(Outer diameter)
Compressor inlet: 68 mm (inside diameter), 77mm(Outer diameter)
Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing/Journal Bearing
Trust Bearing: 270 degree
Hosepower: Up to 400+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: Brand New
Product Size:23x 22x 18 cm
Package Weight: 7620g
Key Features:
*Product Material

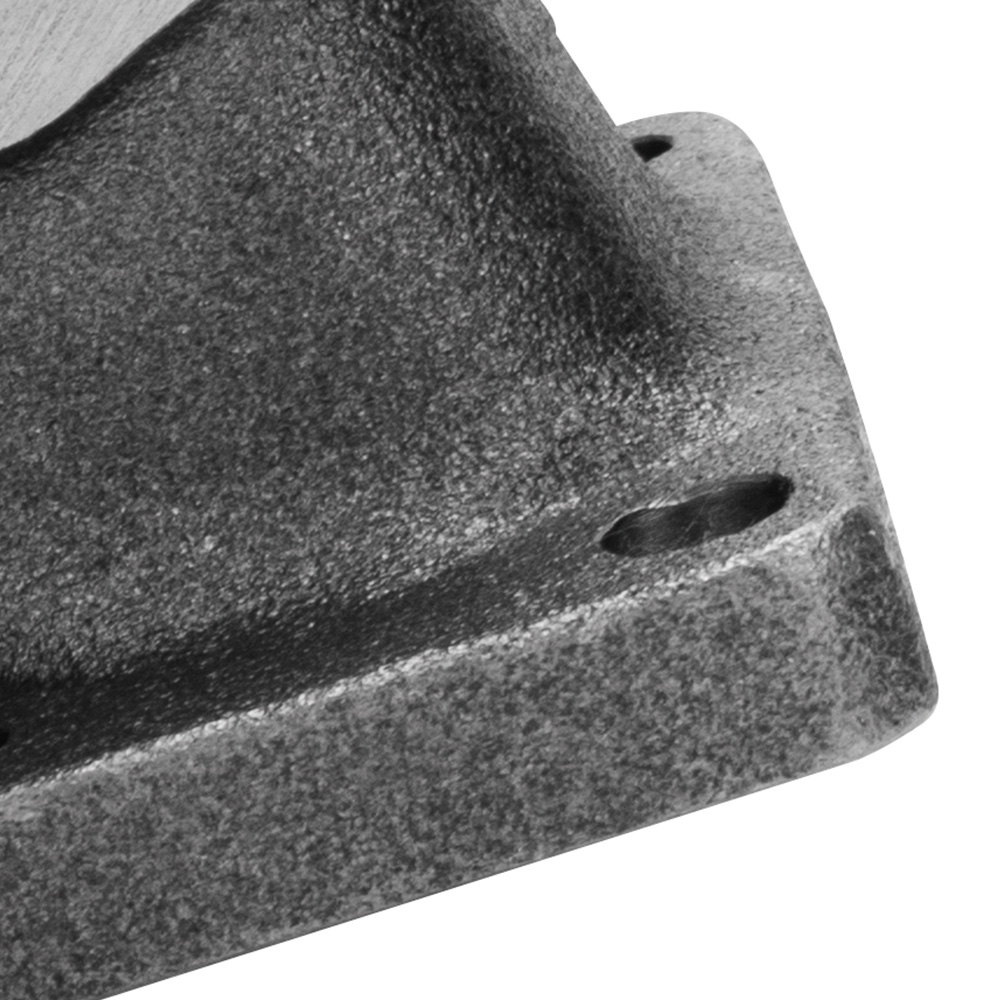

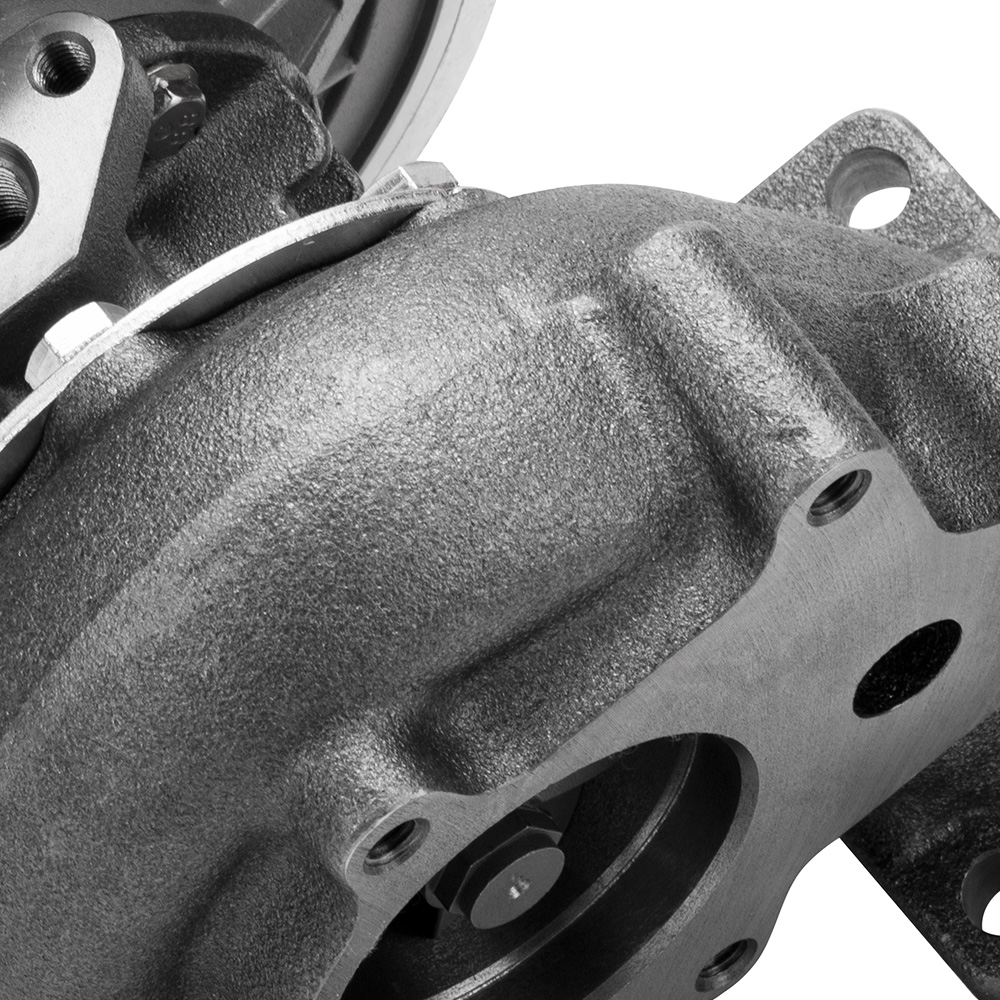

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

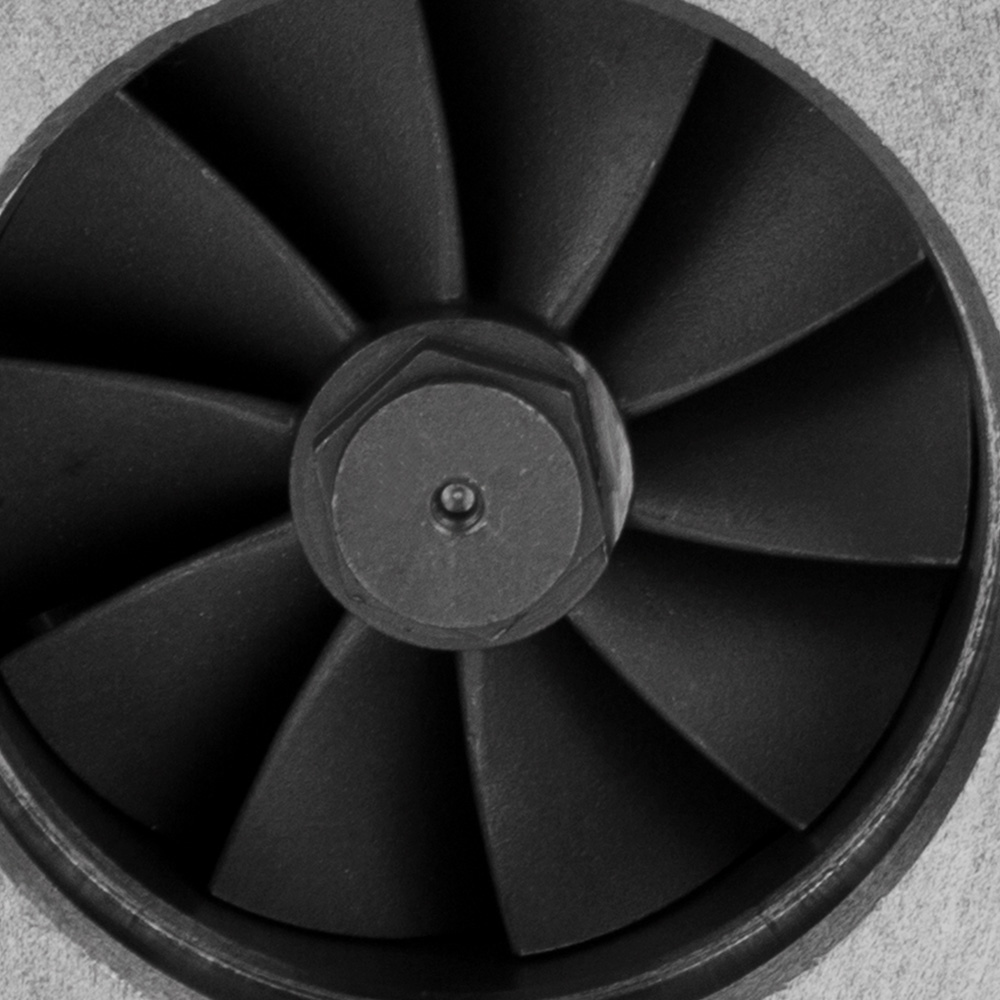

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: L104 aluminum with lightweight

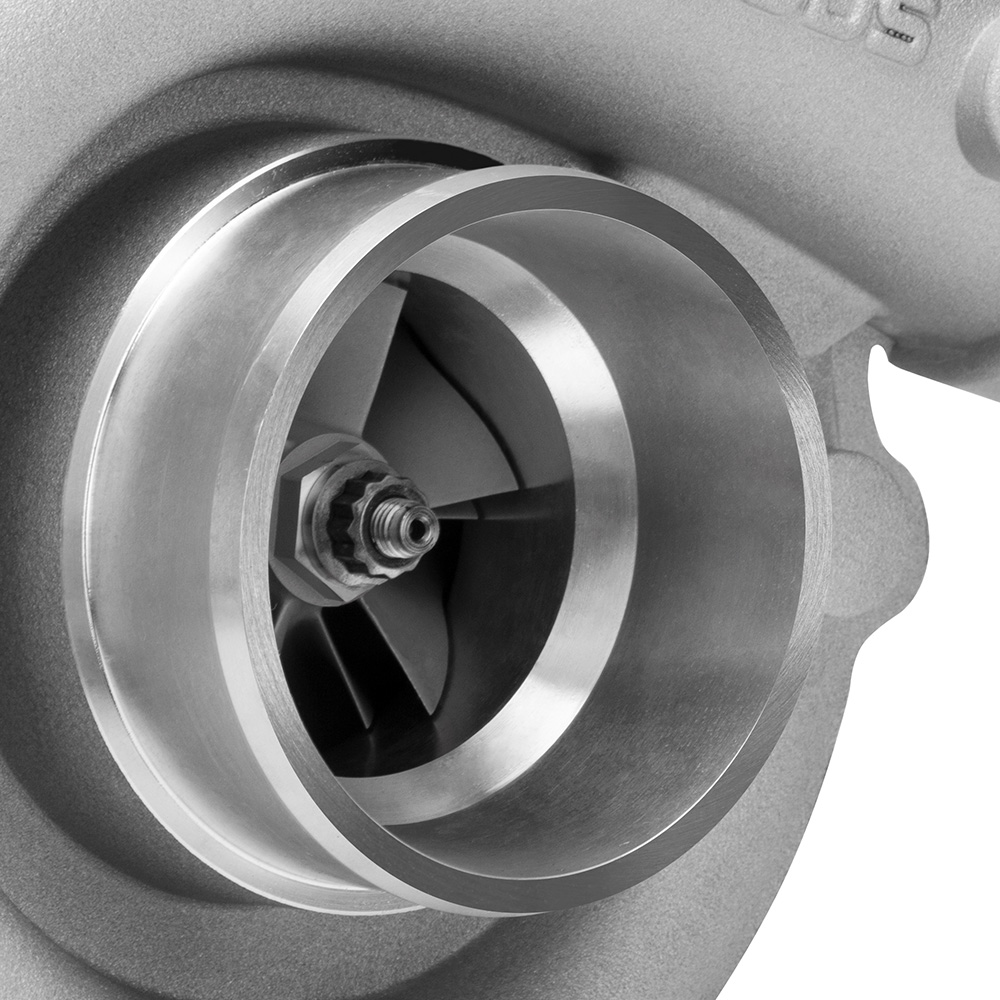

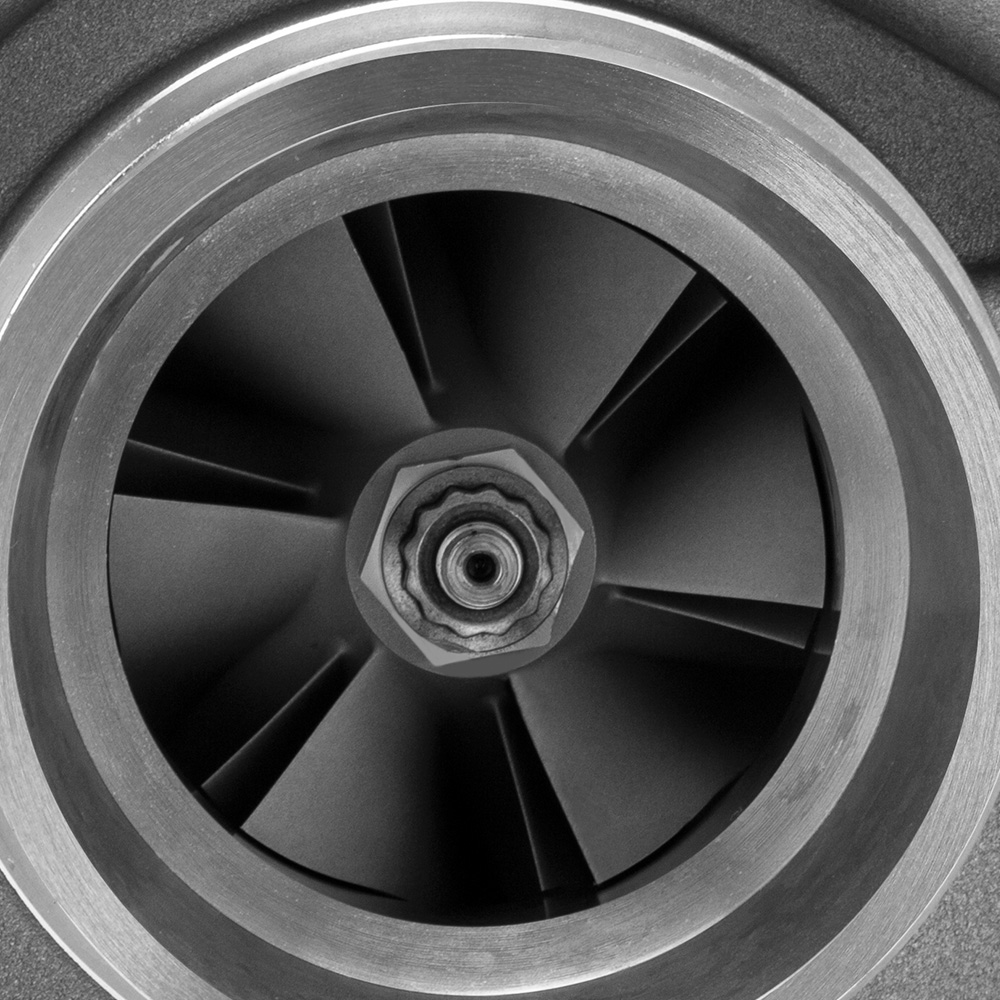

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

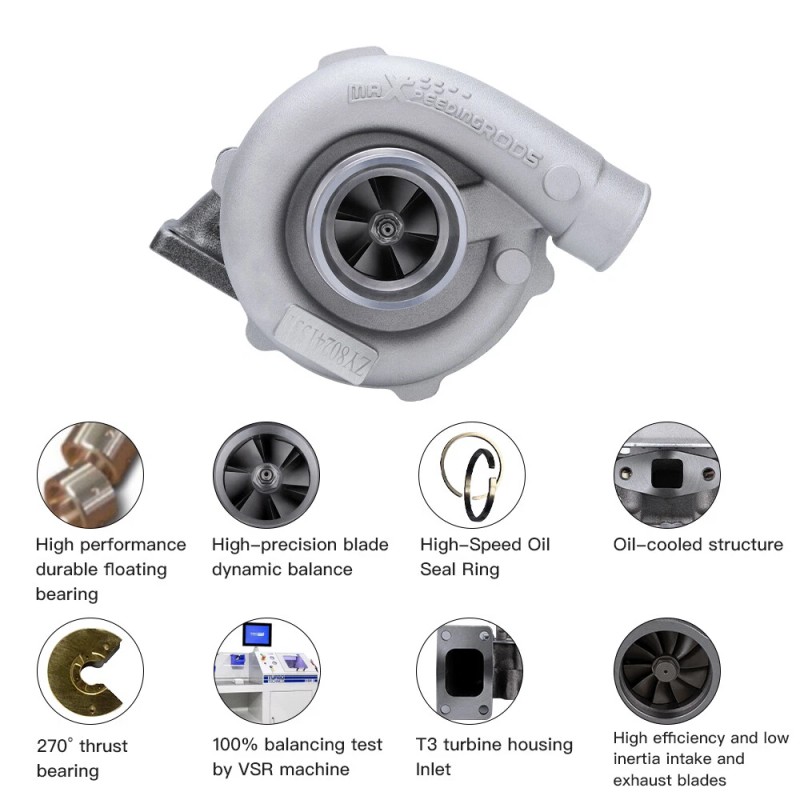

*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Tips before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
NOTE:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Most orders are shipped within 1 business day as payment received!
● For detailed shipping fee to your place, please provide us your shipping address and zip code via eBay message.
● Please provide physical shipping address & telephone number for delivery, and we don’t ship to P. O. Box.
● The domestic shipping is usually 2-5 business days and international shipping is 5-10 business days depending on your location.
Notice:
● All items are double checked the condition and packing before shipping, please check the parcels carefully when they arrive and refuse to sign the package and open the shipping damage case with shipping company immediately if there is something wrong with the parcel.
Parautoecommerce offers the best warranty service from our factory directly.
● We provided a minimum two years for most of our parts, even longer manufacturer’s warranty for some parts.
● We only offer the highest quality parts and accessories available, but in some rare cases there are manufacturer’s defects, We warranty all items to be free from defects in material and workmanship for the period specified on your invoice. It begins from the date purchased.
● If the item sold should prove defective in material or workmanship within the warranty period, please contact us immediately.
Notice:
● This warranty does not cover any expenses incurred in the removal and / or re-installation of the item.
● Specifically, this warranty does not cover any expenses for time, rental, or other parts not purchased from us, or any labor.
● This warranty covers fixing or replacing the item only.
● This warranty is offered only to the original purchaser of the item and is not transferable.
● This warranty does not apply, and will be voided, if the item sold has been damaged by abuse, misuse, accident, neglect, or alteration.
● Our warranty will be null and void if the item fails due to improper installation or use.
● If you need warranty assistance, or just have questions, please do not hesitate to contact us.
Parautoecommerce offers the best warranty service from factory directly.
● All our products are 100% brand new unless otherwise stated in the product description section.
● Parautoecommerce offers a minimum two years, unlimited mileage warranty on most of parts sold, some parts are otherwise noted longer manufacturer’s warranty.
● The warranty covers the part purchased, but does not cover labor or additional expenses.
● We only offer the highest quality parts and accessories available and we are not responsible for any illegal issues that caused by the improper usage of our products.
● Please arrives with damage, you may refuse to take the package, product will be returned back to us at no charge; any other cases, please contact us for instruction.
● We understand that sometimes you need to make a return or an exchange, so we make it easy.
● All we ask is you send it back in the same condition it was received - new and un-used within 30 days of date of purchase.
● Return Policy is 30 days free .
● We cannot accept returns on used or installed items.
● All return and cancellation shipping and handling fees of all the orders are non-refundable.
● No returns will be accepted after 30 days of date of purchase.
● Whatever your return reason or exchange is, please contact us for return instruction and return authorization number first; Our customer service team will provide you the professional solution and solve your problem promptly.
● Your 100% satisfaction is our top priority, our goal is for you to be happy with your purchase.
Brand: | maXpeedingrods |
---|---|
Isin: | IJAAN3FAG21P |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
-
Category
- Coilover/Shock Absorber
- Turbochargers
- Brake Calipers
- Injector Harness
- Valve Parts
- Ignition Coilpacks
- Oil Line
- Sunshade
- Connectingrods
- Air Suspension
- Steeringparts
- Carburetors
- Exhaust Manifold
- Oxygen Sensor
- Air Bag
- Camber Plates
- Control arm
- Engine Gaskets
- Oil Pump
- Hydraulic Roller Lifters
- Smog Air Pumps
- Turbo Cartridges
- oilcooler
- Cylinderpistonkit
- Transmission
- Engine Motor
- Air Fuel Ratio Sensor
- Starter Motor
- Air Intake Hose
- Timing Tool Kit
- fuelpump
- Windshield Wiper Motor
- Glass Hinge
- Other
Parautoecommerce

T3/T4 T04E 0.57 A/R Turbine For Ford 98-99 Turbocharger 400+HP 5 Bolts Flange
T3/T4 T04E 0.57 A/R Turbine For Ford 98-99 Turbocharger 400+HP 5 Bolts Flange
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

Fit for:
This item fits: Universal Application ( Modification might be required for some vehicles )
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18(1.2Bar)
Specific:
Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Wastegate: w/o Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm (inside diameter) , 52mm(Outer diameter)
Compressor inlet: 68 mm (inside diameter), 77mm(Outer diameter)
Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing/Journal Bearing
Trust Bearing: 270 degree
Hosepower: Up to 400+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: Brand New
Product Size:23x 22x 18 cm
Package Weight: 7620g
Key Features:
*Product Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: L104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Tips before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
NOTE:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Most orders are shipped within 1 business day as payment received!
● For detailed shipping fee to your place, please provide us your shipping address and zip code via eBay message.
● Please provide physical shipping address & telephone number for delivery, and we don’t ship to P. O. Box.
● The domestic shipping is usually 2-5 business days and international shipping is 5-10 business days depending on your location.
Notice:
● All items are double checked the condition and packing before shipping, please check the parcels carefully when they arrive and refuse to sign the package and open the shipping damage case with shipping company immediately if there is something wrong with the parcel.
Parautoecommerce offers the best warranty service from our factory directly.
● We provided a minimum two years for most of our parts, even longer manufacturer’s warranty for some parts.
● We only offer the highest quality parts and accessories available, but in some rare cases there are manufacturer’s defects, We warranty all items to be free from defects in material and workmanship for the period specified on your invoice. It begins from the date purchased.
● If the item sold should prove defective in material or workmanship within the warranty period, please contact us immediately.
Notice:
● This warranty does not cover any expenses incurred in the removal and / or re-installation of the item.
● Specifically, this warranty does not cover any expenses for time, rental, or other parts not purchased from us, or any labor.
● This warranty covers fixing or replacing the item only.
● This warranty is offered only to the original purchaser of the item and is not transferable.
● This warranty does not apply, and will be voided, if the item sold has been damaged by abuse, misuse, accident, neglect, or alteration.
● Our warranty will be null and void if the item fails due to improper installation or use.
● If you need warranty assistance, or just have questions, please do not hesitate to contact us.
Parautoecommerce offers the best warranty service from factory directly.
● All our products are 100% brand new unless otherwise stated in the product description section.
● Parautoecommerce offers a minimum two years, unlimited mileage warranty on most of parts sold, some parts are otherwise noted longer manufacturer’s warranty.
● The warranty covers the part purchased, but does not cover labor or additional expenses.
● We only offer the highest quality parts and accessories available and we are not responsible for any illegal issues that caused by the improper usage of our products.
● Please arrives with damage, you may refuse to take the package, product will be returned back to us at no charge; any other cases, please contact us for instruction.
● We understand that sometimes you need to make a return or an exchange, so we make it easy.
● All we ask is you send it back in the same condition it was received - new and un-used within 30 days of date of purchase.
● Return Policy is 30 days free .
● We cannot accept returns on used or installed items.
● All return and cancellation shipping and handling fees of all the orders are non-refundable.
● No returns will be accepted after 30 days of date of purchase.
● Whatever your return reason or exchange is, please contact us for return instruction and return authorization number first; Our customer service team will provide you the professional solution and solve your problem promptly.
● Your 100% satisfaction is our top priority, our goal is for you to be happy with your purchase.
- Application: for 1.5L to 2.5L any 4/6 cylinder engine
- Brand: maXpeedingrods
- Color: Silver
- Compressor A/R: 0.5
- Compressor Inducer /Exducer (MM): 52.7 / 76
- Compressor Trim: 48.1
- Cooling Type: Oil Cooled
- Features: Individual
- Finish: Matte
- Interchange Part Number: T04E, T3, T4
- Manufacturer Part Number: ISAUKQ
- Manufacturer Warranty: 2 Year
- Materials: Cast Iron/Steel Turbo Housing/ Aluminum Controller
- Note2: This is universal application turbo,, so modification might be required for some vehicles
- OE/OEM Part Number: Universal Turbocharger for 1.5L to 2.5L any 4/6 cylinder engine, T3 T4 T04E Turbo, turbocharger t3/t4, turbo t3 t4, t3 t4, 57 trim turbo, Turbo,Turbocharger,Turbocharger,Turbolader,Turbocompresor, Turbine,Universal Turbo, turbosuperchargers,Aftermarket Turbo, Boost Up to 400+HP

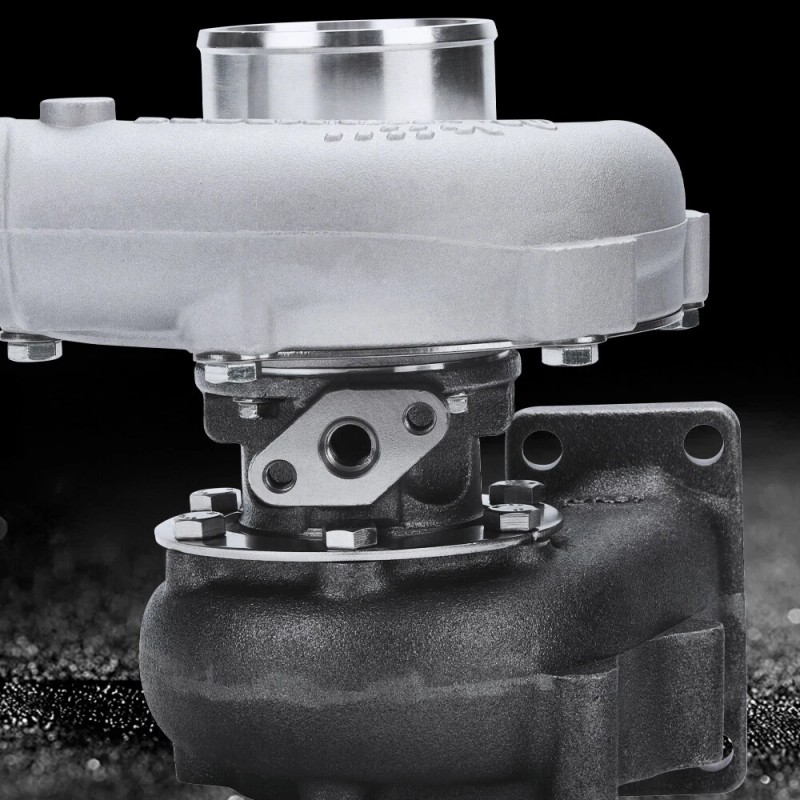

- Oil Inlet: M12*1.25
- Oil Outlet: 2*M8*1.25
- Performance Part: Yes
- Superseded Part Number: universal turbo, t04e turbocharger
- Trust Bearing: 270 degree
- Turbine A/R: 0.57
- Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
- Turbine Inducer / Exducer (mm): 64.8 / 55.8
- Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
- Turbine Trim: 74.2

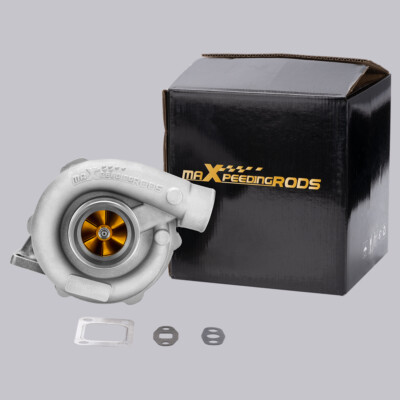

- Type: Turbocharger
- Universal Fitment: Yes
- UPC: 6941503344762
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
Shipping Method | Estimated Delivery | Cost |
---|---|---|
Free Shipping (US) | 5–10 business days | Free, available on eligible items |
Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
