NanoPC-T6 LTS Mini Computer WiFi Router, Office Home Smart IoT Gateway, Rockchip RK3588 CPU 6Tops NPU, with 2X PCle 2.5G Ethernet Port for AI edge computing, Support M.2 NVMe SSD Module (4+32GB)
NanoPC-T6 LTS Mini Computer WiFi Router, Office Home Smart IoT Gateway, Rockchip RK3588 CPU 6Tops NPU, with 2X PCle 2.5G Ethernet Port for AI edge computing, Support M.2 NVMe SSD Module (4+32GB)
NanoPC-T6 LTS Mini Computer WiFi Router, Office Home Smart IoT Gateway, Rockchip RK3588 CPU 6Tops NPU, with 2X PCle 2.5G Ethernet Port for AI edge computing, Support M.2 NVMe SSD Module (4+32GB)
- [Office Home Smart IoT Gateway] The NanoPC-T6 LTS is an open-sourced mini smart IoT gateway device with two 2.5G Ethernet ports. It is integrated with Rockchip RK3588 high performance CPU, 64-bit 4/8/16GB LPDDR4x RAM at 2133MHz, and 32/64GB eMMC flash, Mali-G610 MP4 GPU, 6TOPs NPU. NanoPC-T6 LTS computer wifi router also supports GPU and VPU acceleration.
- [Rich Hardware Resources] NanoPC-T6 LTS mini wifi router has 2x HDMI output ports and 1x HDMI IN port. T6 has one M.2 B-Key slot that supports an M.2 NVME SSD disk, one M.2 E-Key that supports M.2 2230 WiFi module. It has one USB 3.0 and two USB 2.0 ports, and one full-featured USB-C port that is powered by DC-12V. And it can also supports booting with TF cards and using 4G LTE USB module.
- [8K Video Decoders and Encoders] NanoPC-T6 computer wifi router has two HDMI output interfaces and one HDMI IN interface, it can decode and play video streams up to 8K60p H.265/VP9, 8K30p H264 and other formats of video, and can record video streams 4k60p H.265 format video. Able to obtain high-frequency game graphics and the fun of best-selling games.
- [Embedded Custom Development] NanoPC-T6 mini wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
- [Support Multi-OS Software] NanoPC-T6 computer mini wifi router supports booting with TF cards and eMMC Flash, and works with operating systems such as FriendlyWrt, Android TV, Debian, Ubuntu OpenMediaVault etc and works with headless systems as well. NanoPC-T6 LTS is a one-for-all high performance open source platform for edge computing.
- [Wiki] GettingStarted:"https://wiki.friendlyelec.com/wiki/index.php/NanoPC-T6#Get_Started". Any after-Sales supporting, please ask a question and contact us by click "Waypondev" store or leave the message in our forum by "forum.youyeetoo .com/".
| Brand: | WayPonDEV |
|---|---|
| Size: | 64-bit 4GB/8GB/16GB LPDDR4X |
| Color: | 4+32GB |
| Manufacturer: | WayPonDEV |
| Part Number: | 1VKM11T |
| Isin: | INOALGPBRZ6B |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
-Specification-
SoC: Rockchip RK3588
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4/8/16GB LPDDR4X at 2133MHz
Flash: 32/64GB eMMC, at HS400 mode,1 x MicroSD Slot: support up to SDR104 mode

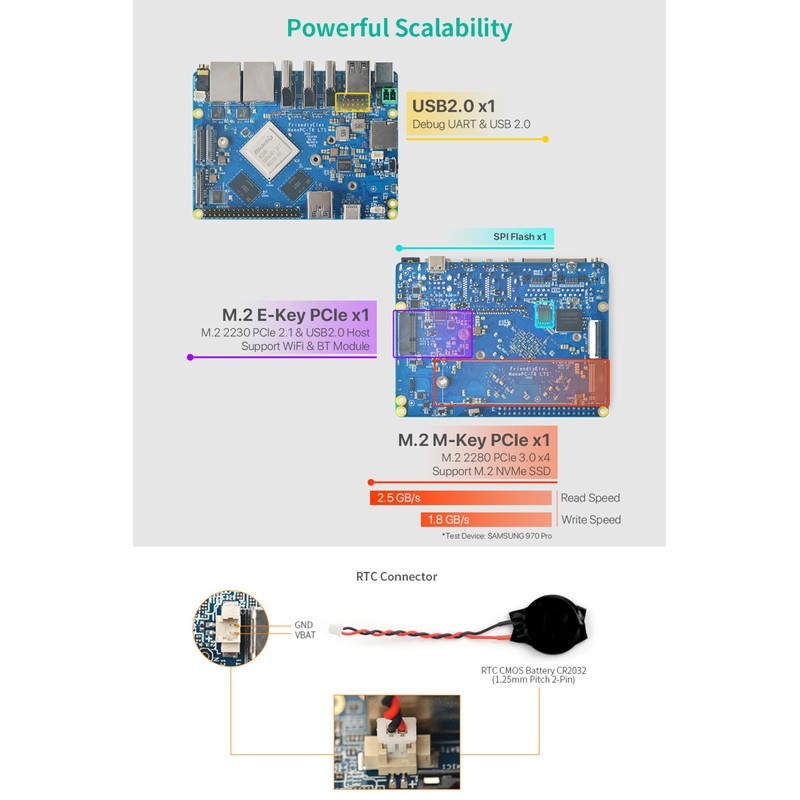

PCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/s
Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity:
Ethernet:

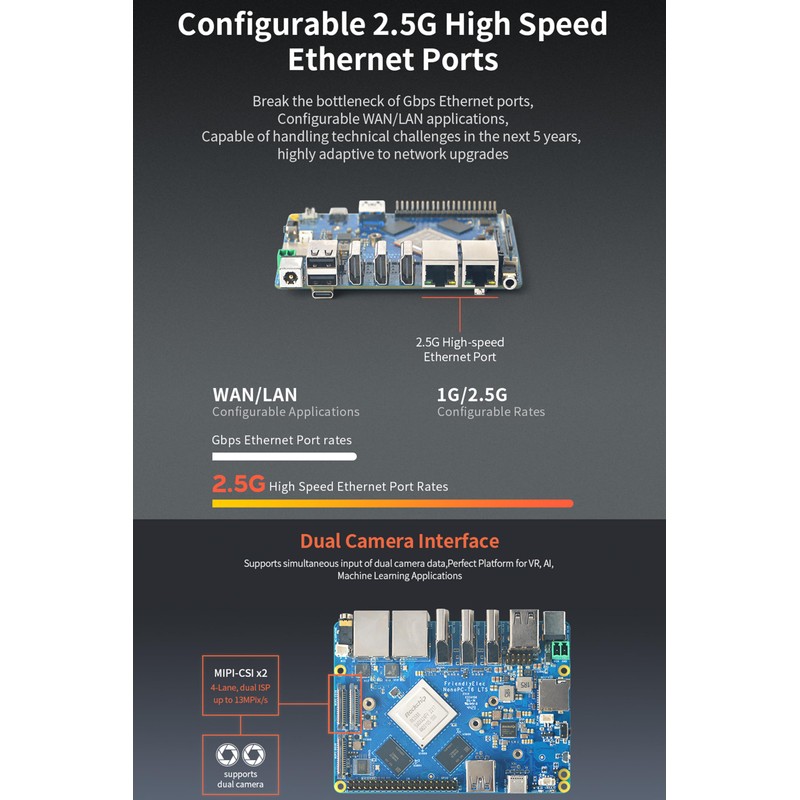

2 x PCle 2.5G Ethernet, RTL8125BG chip
PCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and Bluetooth Module
Onboard M3 PCB nutfor mounting M.2 2230 module.
Video Input:

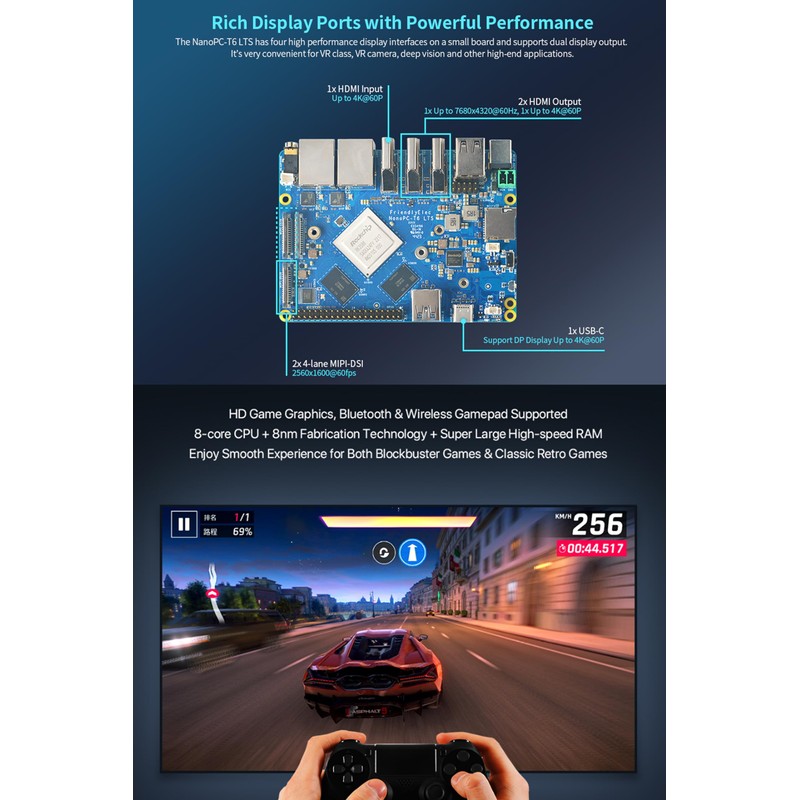

1 x Standard HDMI input port, up to 4Kp60
2 x 4-lane MIPI-CSI, compatible with MIPI V1.2
Video Output:
2 x Standard HDMI output ports:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
Support RGB/YUV(up to 10bit) format
2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
USB:
2 x USB 2.0,Type-A
1 x USB 3.0,Type A
1 x USB-C: Full function USB Type-C port, support DP display up to 4Kp60, USB 3.0
Pin-header:
GPIO: 40-pin 2.54mm header connector, up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOs
GPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host
-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
OpenMediaVault
Kernel Version:Linux-5.10-LTS, U-boot-2017.09
-Package Content-

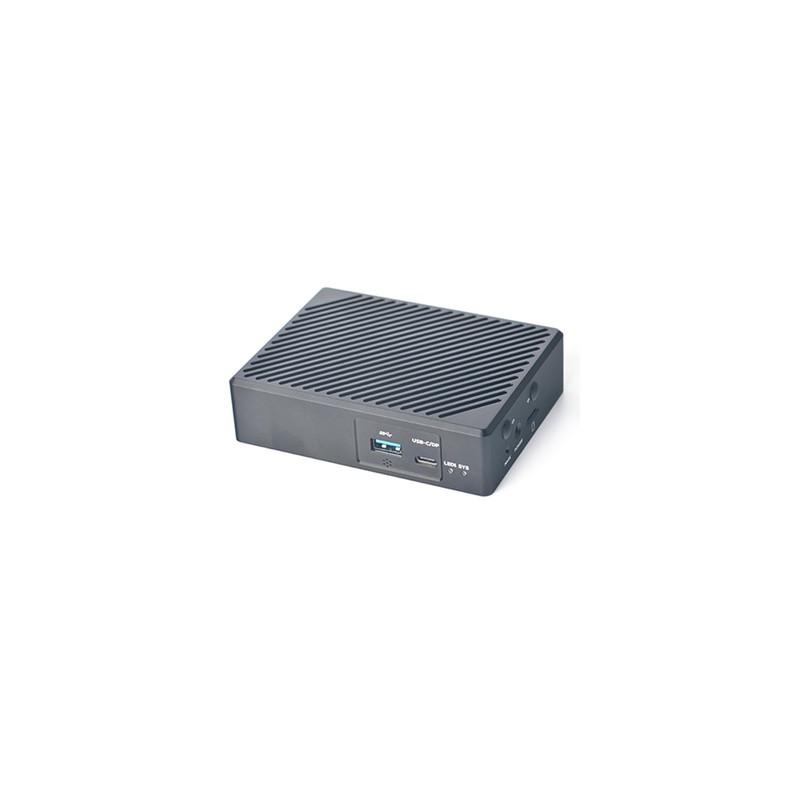

NanoPC-T6 Mini Wifi Router x1(with CNC Metal Case )
12V 2A Power Supply x1
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f------>@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
