Nassau PER FOOT 3/3 With #8 Ground + 18/6 Copper TC-ER-JP 100 Amp Generator Cable 600V

Brand: Nassau

PER FOOT 3/3 With #8 Ground + 18/6 Copper UL Type TC-ER-JP Generator Cable Black 600V

Click Thumbnails to Enlarge


APPLICATION

- 3/3 With #8 Ground + 18/6  all in one Generator cable for connecting a generator to a transfer switch. JP (Joist Pull) rated per the 2017 NEC 336.10(9). Black jacket and color coded inner conductors.

CONDUCTOR

- Element 1: Annealed bare copper Class C
- Element 2: Annealed bare copper Class K
- Element 3: Annealed bare copper Class C

INSULATION

- Element 1, 2 & 3: Polyvinylchloride (PVC) & Nylon

ASSEMBLY

- All 3 Elements or Conductors are cabled together with Non Hygroscopic Polypropylene fillers as required for a circular cross-section with a clear mylar binder tape and jacketed.

JACKET

- Sunlight resistant and direct burial approved PVC with ripcord rated 75°C wet or dry per UL 1277.

COLOR CODE

- Element 1: Black, White, Red
- Element 2: Black, Red, Yellow, Yellow/Black, Blue, White
- Element 3: Green Ground

STANDARDS

- UL Listed as TC-ER-JP per UL Standard 1277
- Rated 75°C wet or dry to meet UL 83 for THHN/THWN
- Meets cold bend test at -40°C
- ICEA S-73-532
- Meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
- REACH compliant per Regulation (EC) No 1907/2006 (197) Updated January 15, 2019
- Cable is suitable for use in Class I Division 2 hazardous locations
- Element 1 & 2 conductors pass UL VW-1 flame test, rated THWN/VW-1
- ASTM B3, B174, B801

DISCLAIMER

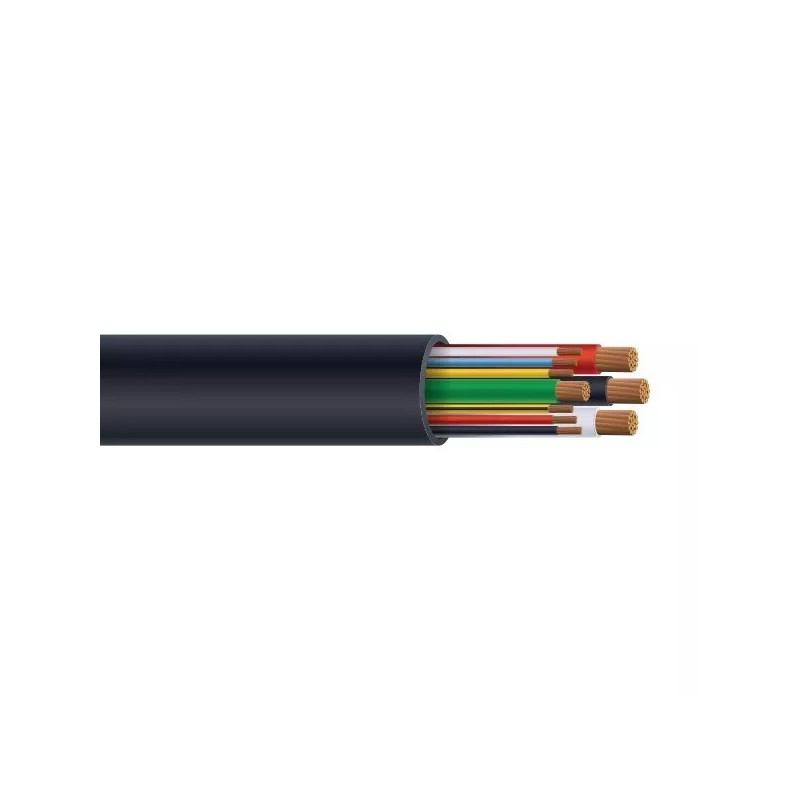

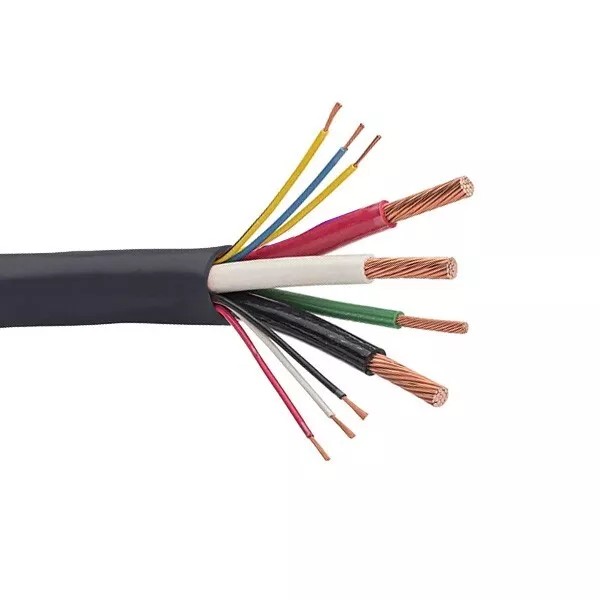

- Picture May Not Represent Actual Cable and is Only Used As a Representation Please Refer to The Specifications for Product Accuracy.

PRODUCT SPECIFICATIONS

Element 1: Size AWG 3
Element 1: Number of Conductors 3
Element 2: Size AWG 18
Element 2: Number of Conductors 6
Element 3: Size AWG 8
Element 3: Number of Conductors 1
Jacket Thickness 0.080
Overall Diameter 0.951
Ampacity 100 Amps
Rating 17kW - 24kW
Weight (Lbs/1000ft) 865
