OSOYOO 1x Nano at+mega+328P Module CH340 5V/16M USB-C Micro-Controller Board for Arduino Nano V3.0

Brand: OSOYOO

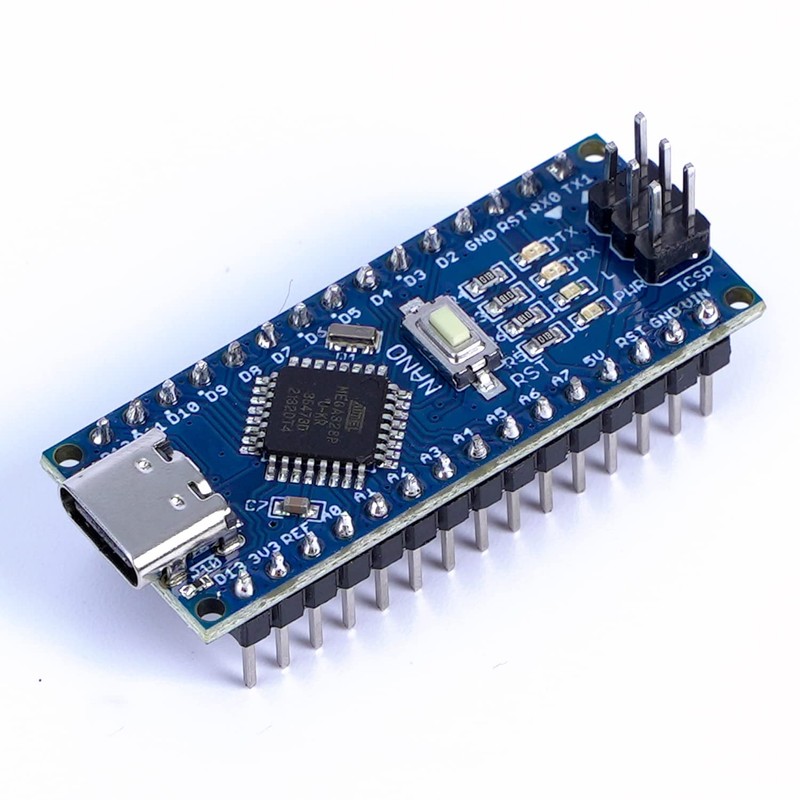

  • OSOYOO Nano board is tiny and breadboard friendly microcontrollers. It works the same as original Nano and is very cost-effective for beginners to get started.
  • The OSOYOO Nano Using Atmel Atmega+328P-AU as MCU, Support ISP download; Support USB-C download and Power.Compatible with Arduino Nano V3.0 fully compatible with Windows, Mac and Linux operating system.

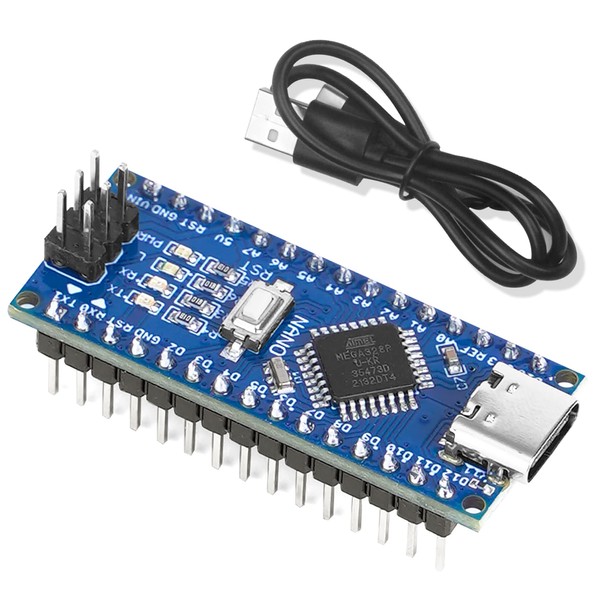

  • The OSOYOO Nano can be powered via USB-C connection,included USB-C to USB-A cable and USB-C to USB-C cable. 6-12V unregulated external power supply , or 5V regulated external power supply.The Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.
  • The OSOYOO Nano has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a power USB-C jack, an ICSP port and a reset button.

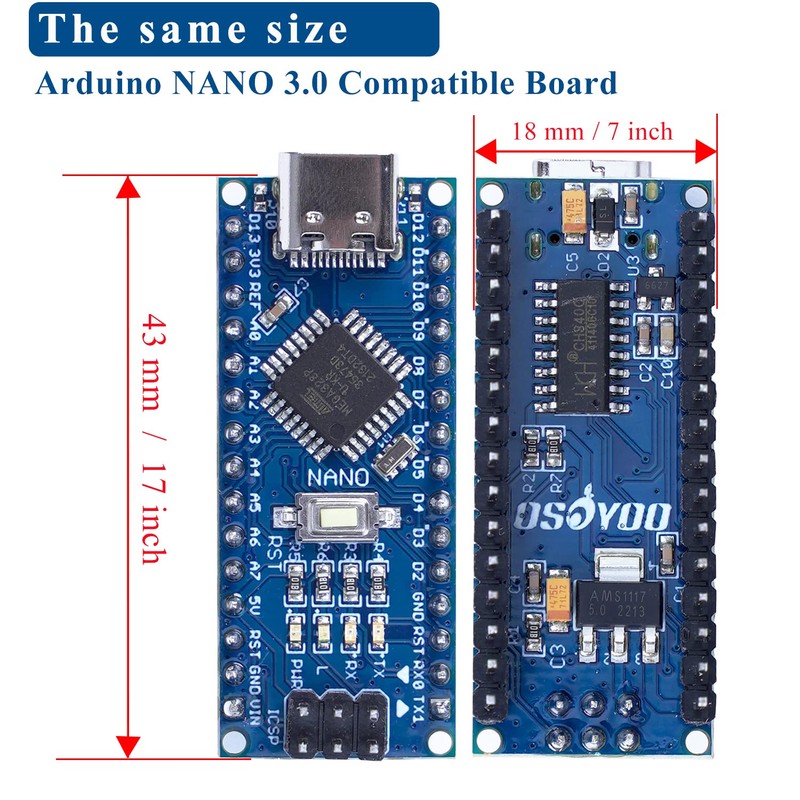

  • The OSOYOO Nano has a variety of facilities for communicating with a PC or other microcontrollers, and fully compatible with Windows, Mac and Linux operating system.This board especially is breadboard friendly and is very easy to handle the connections.
Brand: OSOYOO

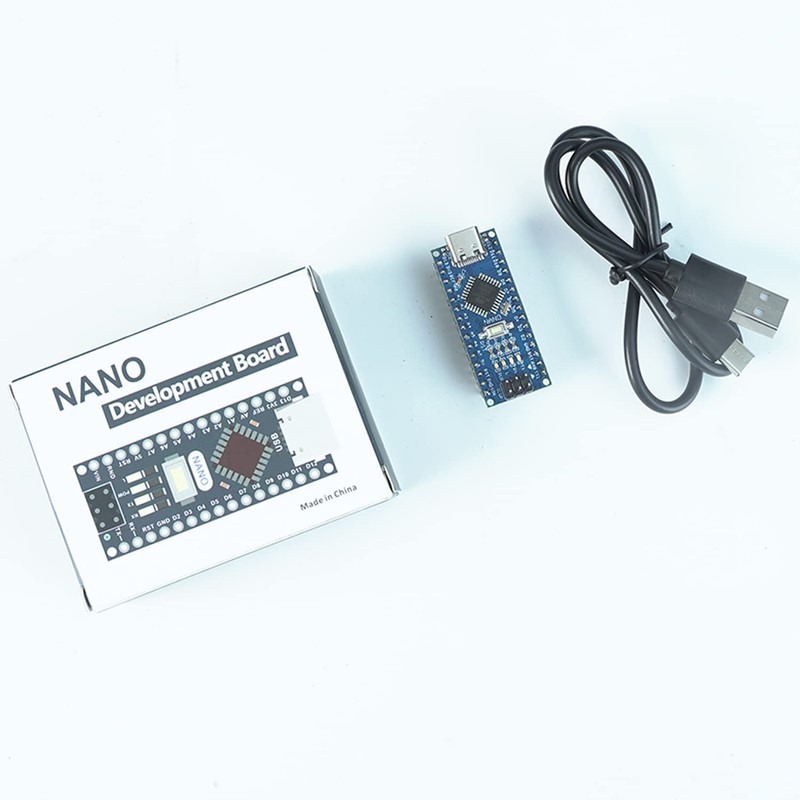

Size: 1x Nano + 1x cable
Manufacturer: OSOYOO
Part Number: W3YLW1B
Isin: IHRFR50P6RTE

$22.89

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
OSOYOO 1x Nano at+mega+328P Module CH340 5V/16M USB-C Micro-Controller Board for Arduino Nano V3.0

OSOYOO 1x Nano at+mega+328P Module CH340 5V/16M USB-C Micro-Controller Board ...

$22.89

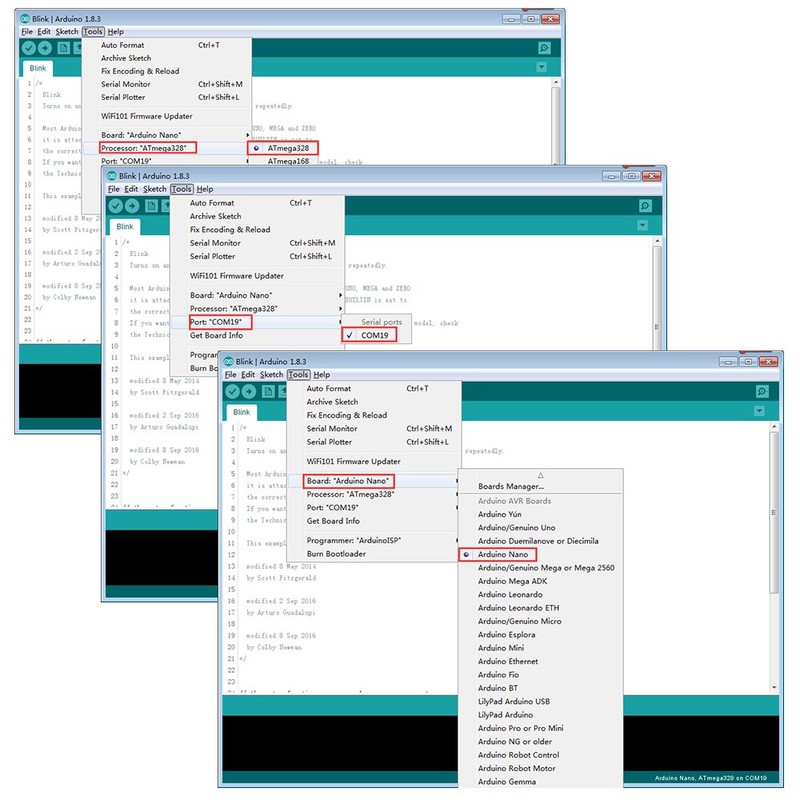

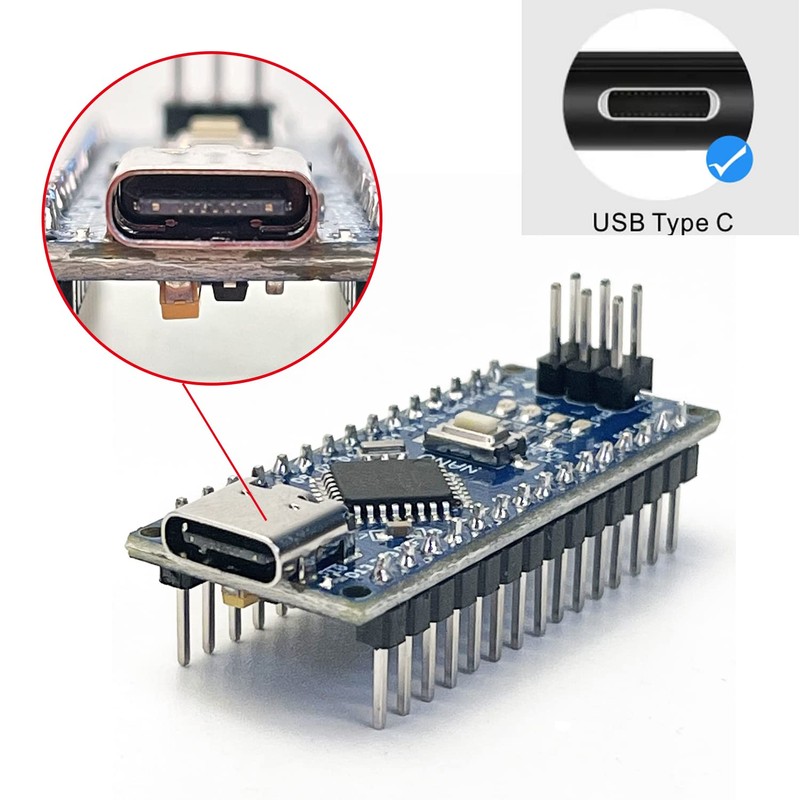

Microcontroller 8 bit AVR family microcontroller. CH340 USB Chip The CH340 chip on the Nano is only powered if the board is being powered over USB. Memory The MCU has 32 KB, (also with 2 KB used for the bootloader. The MCU has 2 KB of SRAM and 1 KB of EEPROM. Classic LED Project with Nano Board This example project shows the simplest thing you can do with an Nano to see physical output: it blinks the on-board LED just like the star in the sky. Input and Output Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. Some pins have specialized functions: Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the CH340C USB chip. Easy using-with USB-C cable To provide excellent service for customers Power The Arduino Nano can be powered via the USB-C connection, 6-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. Technical specifications : Microcontroller: Atmel Atmega328P-AU Architecture: AVR Flash Memory: 32 KB of which 2 KB used by bootloader SRAM: 2 KB; EEPROM: 1 KB Clock Speed: 16 MHz; USB to Serial convert chip:CH340C USB – Type C port for power, programming and debugging 8 Analog I/O inputs:A0 ~ A7(each of which provide 10 bits of resolution) 14 Digital I/O Pins:TX,RX,D2 ~ D13. 1 pairs of TTL level serial transceiver ports RX / TX. 6 PWM Output:D3, D5, D6, D9, D10, D11. DC Current per I/O Pins: 40 mA (I/O Pins) Input Voltage: 7-12 V; Power Consumption: 19 mA Package Include : 3x Nano Board or 1xNano board and 1x USB-C Cable PCB Size: 18 x 43 mm Weight: 8 g
