OUKANING High Torque 110V 15RPM 90K Low Speed AC Gear Reducer Motor Reversible + Governor
OUKANING High Torque 110V 15RPM 90K Low Speed AC Gear Reducer Motor Reversible + Governor
OUKANING High Torque 110V 15RPM 90K Low Speed AC Gear Reducer Motor Reversible + Governor
Specifications
Model: M206-401
Motor Material: Alloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, Aluminum
Reducer Material: Copper, Alloy Aluminum, Alloy Steel, Lubricating Grease
Gear Surface Treatment: Nitriding
Reversible: Yes
Number of Items: 1
Power: 6W
Governor Power: 6W
Power Source: Corded Electric
Rated Voltage: AC 110V
Capacitance: 3uF
Ratio: 90:1(90K)
Motor Wire Length: 40cm/15.7in
Governor Wire Length: 80cm/31.5in
No-load Speed: About 15RPM, 2.9NM
Shaft Diameter: 8mm/0.31in
Shaft Length: 29mm/1.14in
Key Depth: 25mm/0.98inch
Through-hole: ∅5.5
High Torque 110V 15RPM 90K Low Speed AC Gear Reducer Motor Reversible + Governor
Description

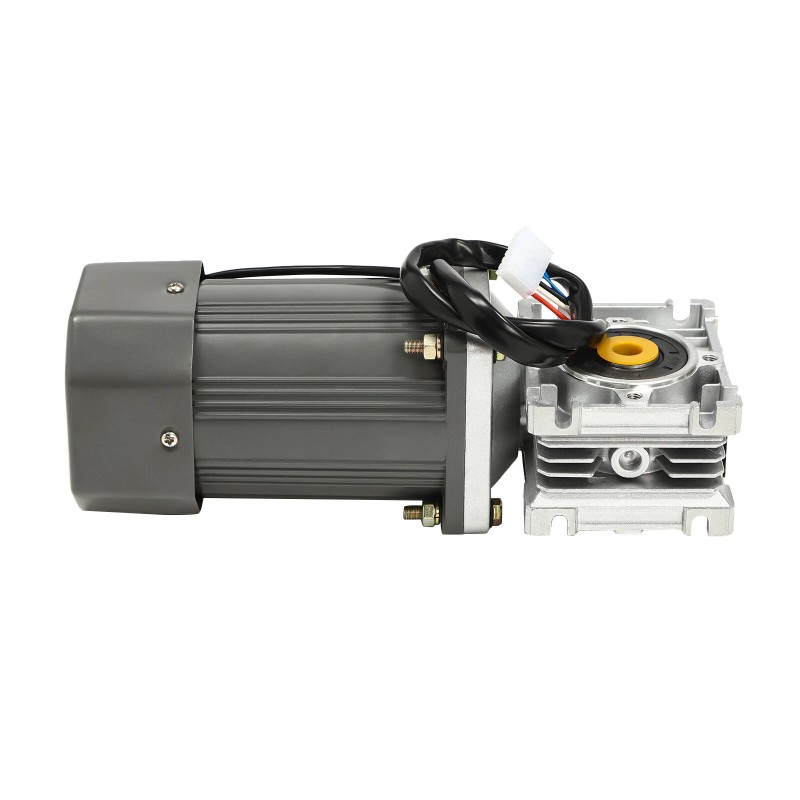

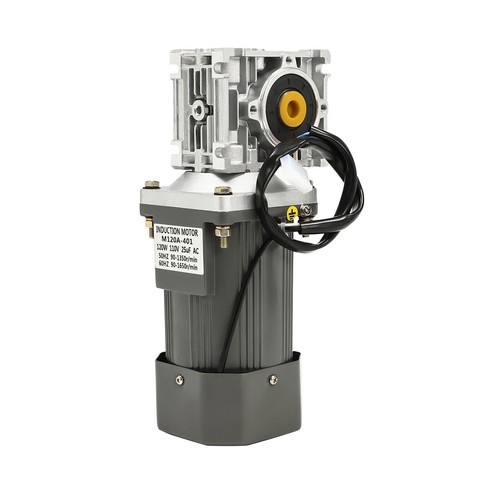

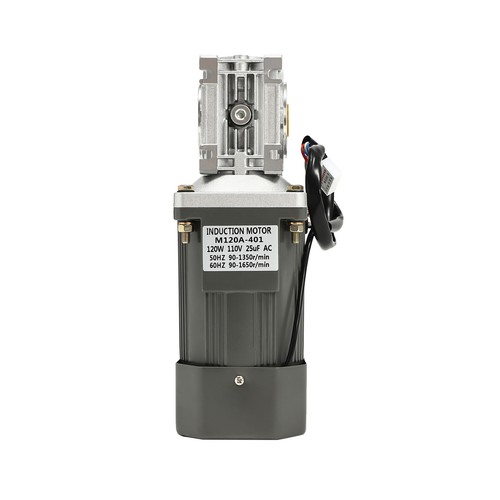

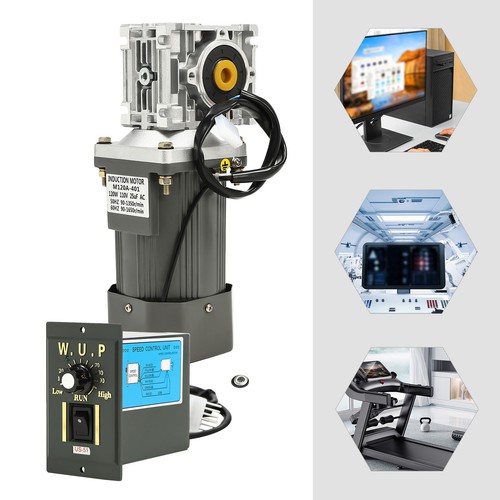

This is an AC 110V worm gear motor with 6W power, which can achieve the 1650rpm speed. It uses pure copper coils and allows for low-noise&powerful working, making it suitable for homes, handcrafts, school projects, and most other products you want. You can turn the speed control knob to adjust the motor speed, realizing the desired effect. It is a great helper in many scenarios and work environments
Key Features
Build to Last: Our product is made of high-quality alloy aluminum, copper, alloy steel, steel sheet, iron, etc., and adopts a nitriding process for the metal parts, making it characterized by heat resistance, high quality, and long service life.
Stable Operation: All metal gears, double ball bearings, and pure copper coils can reduce friction and temperature during use to ensure stable operation. High-quality double-ball bearings can reduce the friction between the rollers and bearings, resulting in higher rotational speeds, less overheating, and higher load resistance.
Reversing Function: It has a reversing function that is flexible with normally open and closed control systems.
High Efficiency: The 6W high power can achieve a high speed of 1650rpm, thereby improving your work efficiency.
Adjustable Speed: The governor with various optional speeds and large torque allows you to steplessly adjust the speed according to different products to achieve the desired effect.
Easy to Carry&Store: The compact gear motor(2.36*2.36*5.15in), small governor(2.4*3.9*3.5in), and 3.3 lbs weight allow you to easily carry this product to the required working site and store it with less space.
Simple Installation: The equipped highly fitting supporting holder can effectively secure it, making it run more smoothly and also facilitating quick and simple installation.
Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage to a certain extent in transit.
Details

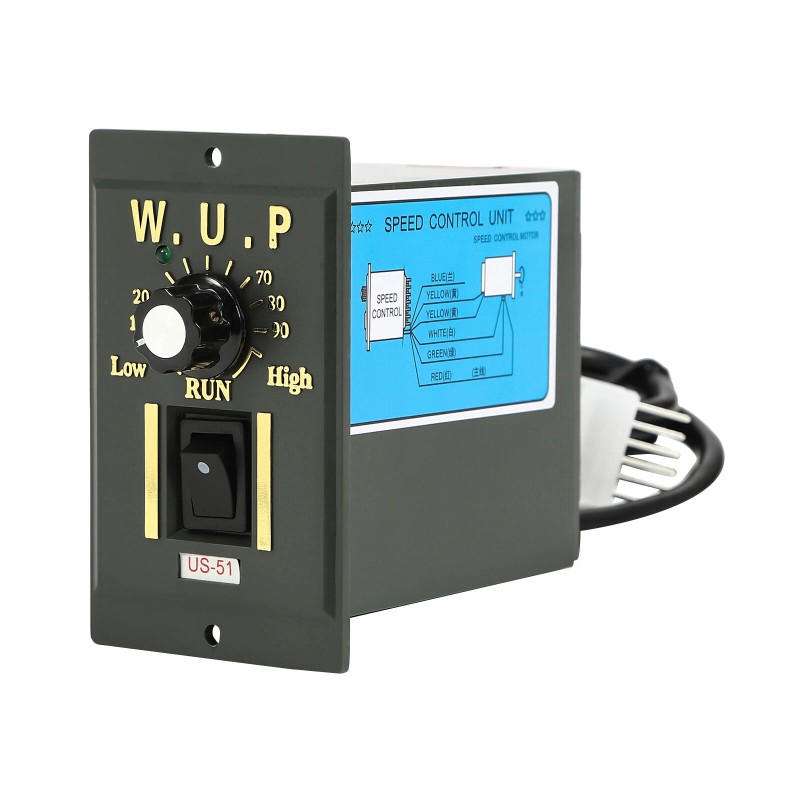

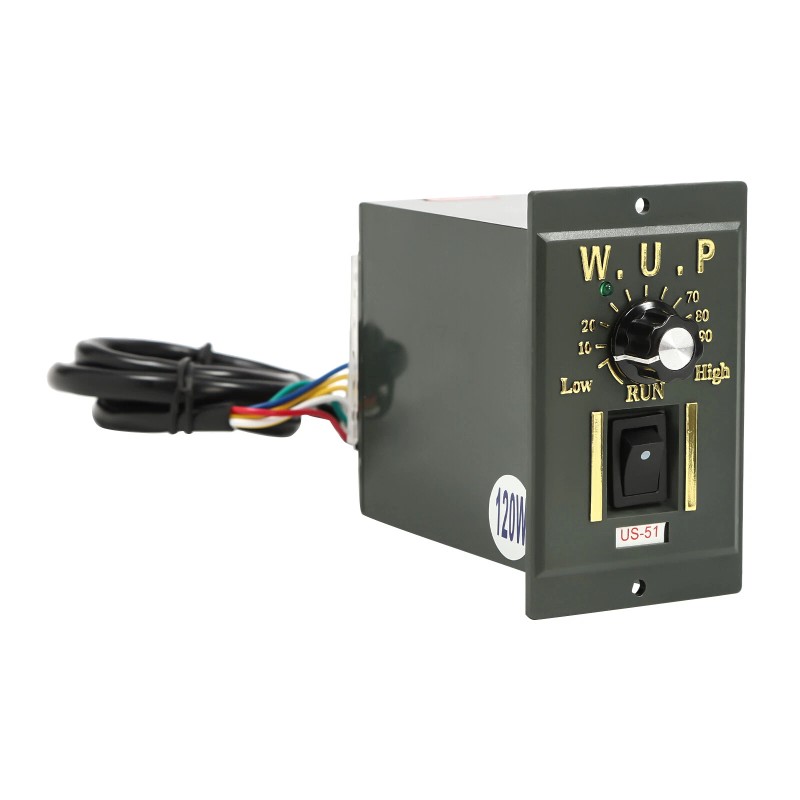

Status Light: A light next to the knob of the governor can display its working status. When you turn on the governor, the light will light up, allowing you to know its working status at any time.
Clear Marks: These clear number&letter marks and diagrams on the governor allow for easy and convenient operation.

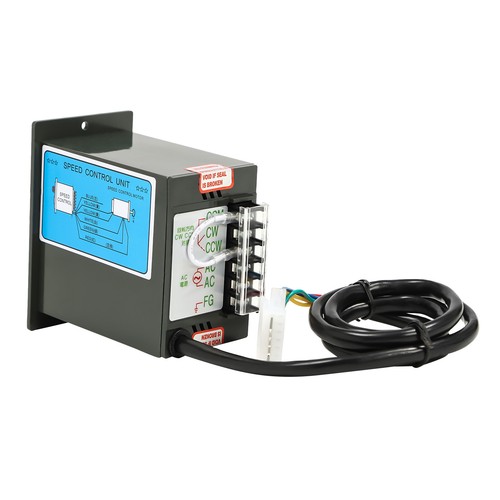

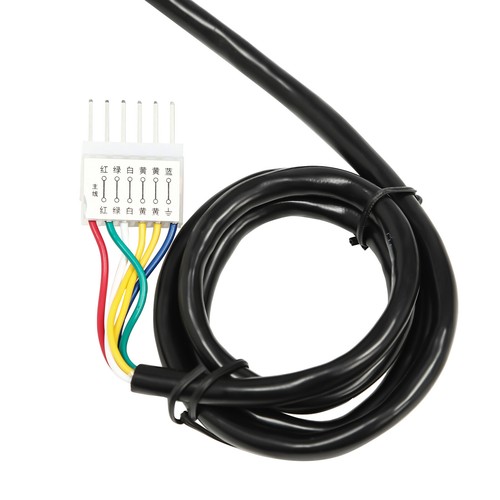

Power Cable: It has distinct colors for different wires, so you can connect them easily without confusion.
Application

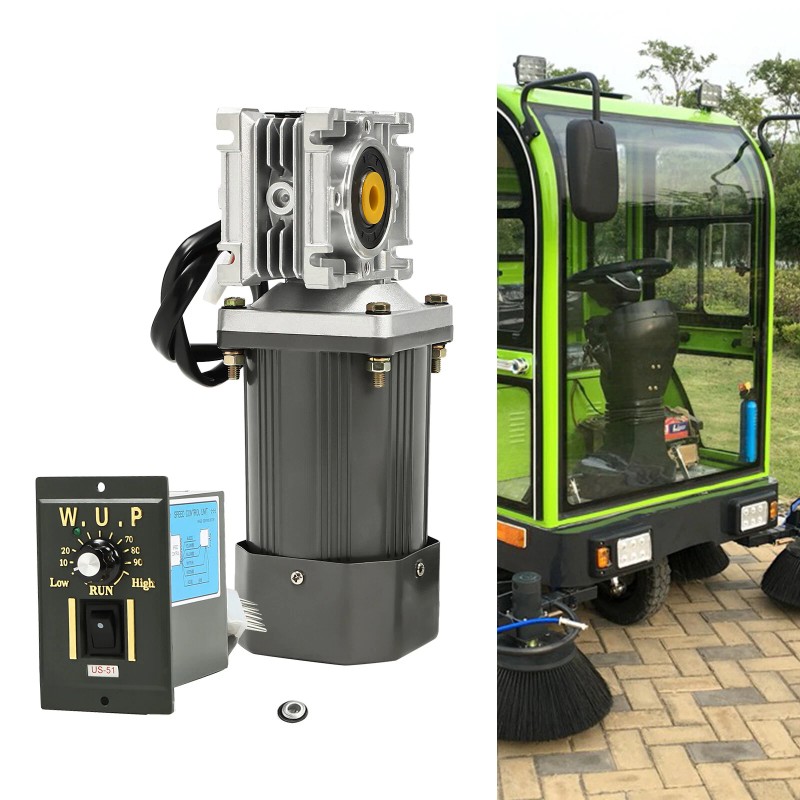

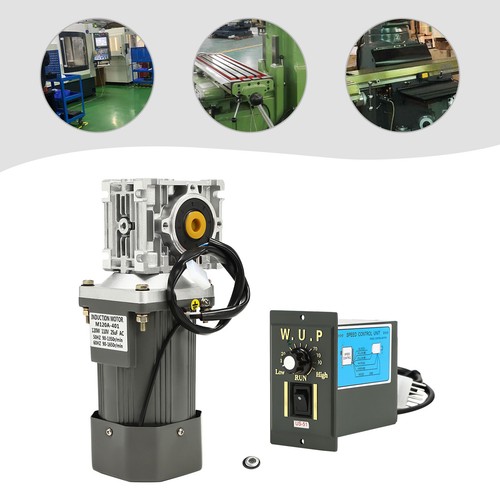

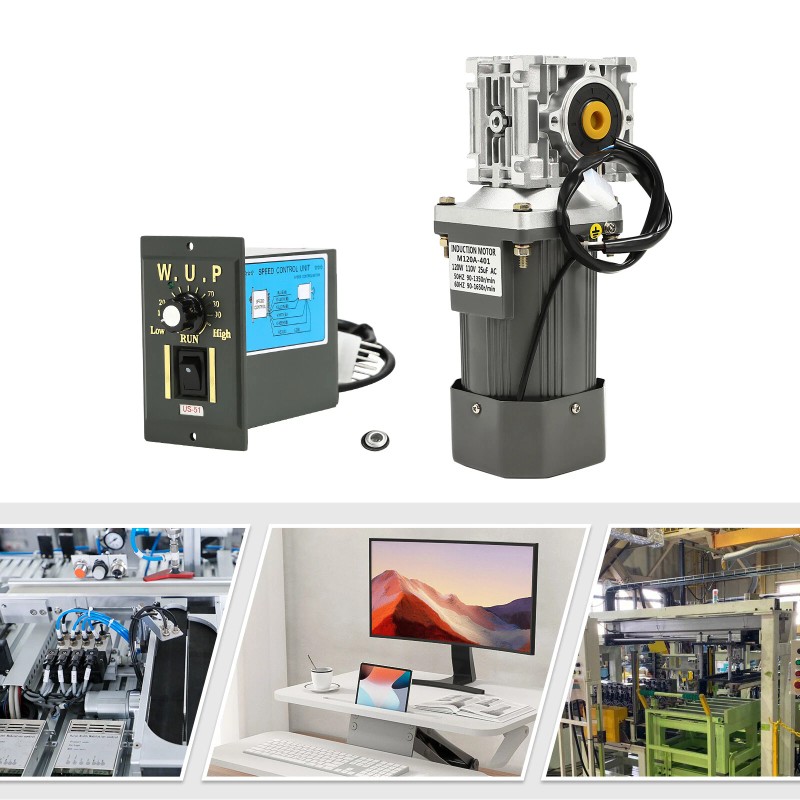

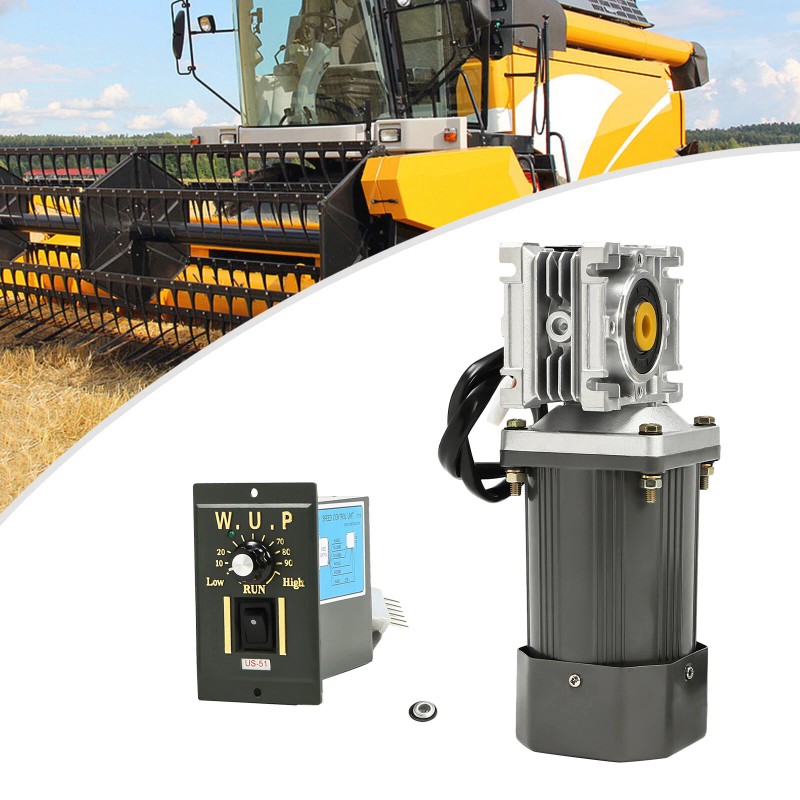

As an AC motor, it has a more complete structure and runs more smoothly, making it a good choice for gear motors! It can be widely used in packaging, printing, textile, dyeing, chemical, medical, pharmaceutical, and other engineering work, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automatic warehouse, parking door security, automatic doors and windows, conveyor, vending machine, feeder, calender, extruder, peeling machine, blender, cargo lifts, food machinery, and other equipment.
Specifications
Model: M206-401
Motor Material: Alloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, Aluminum
Reducer Material: Copper, Alloy Aluminum, Alloy Steel, Lubricating Grease
Gear Surface Treatment: Nitriding
Reversible: Yes
Number of Items: 1
Power: 6W
Governor Power: 6W
Power Source: Corded Electric
Rated Voltage: AC 110V
Capacitance: 3uF
Ratio: 90:1(90K)
Motor Wire Length: 40cm/15.7in
Governor Wire Length: 80cm/31.5in
No-load Speed: About 15RPM, 2.9NM
Shaft Diameter: 8mm/0.31in
Shaft Length: 29mm/1.14in
Key Depth: 25mm/0.98inch
Through-hole: ∅5.5
Diagonal Installation Hole Distance: 70mm/2.75in
Speed: 50Hz, 90-1350RPM/60Hz, 90~1650RPM
Working Temperature: -10~50°C/14~122°F
Holder Size(UP*Down*H): 6.1*10*6.9cm/2.4*3.93*2.72in
Governor Size: 6*10*9cm/2.4*3.9*3.5in

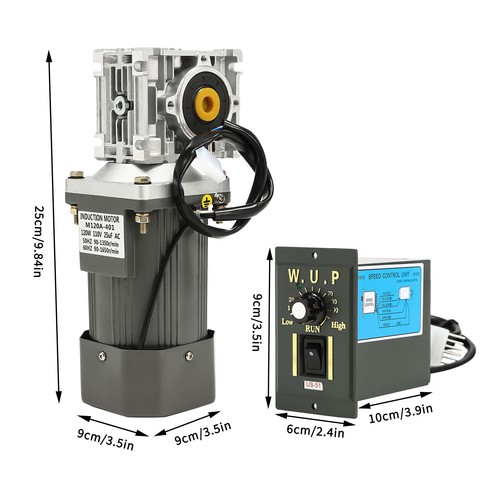

Gear Motor Size: 6*6*13.1cm/2.36*2.36*5.15in
Package Size: 24*23.6*12.5cm/9.4*9.3*4.9in
Gross Weight: 1.89kg/4.16 lbs
Net Weight: 1.5kg/3.3 lbs

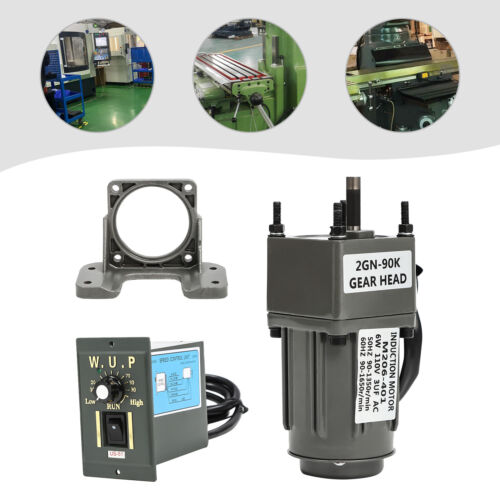

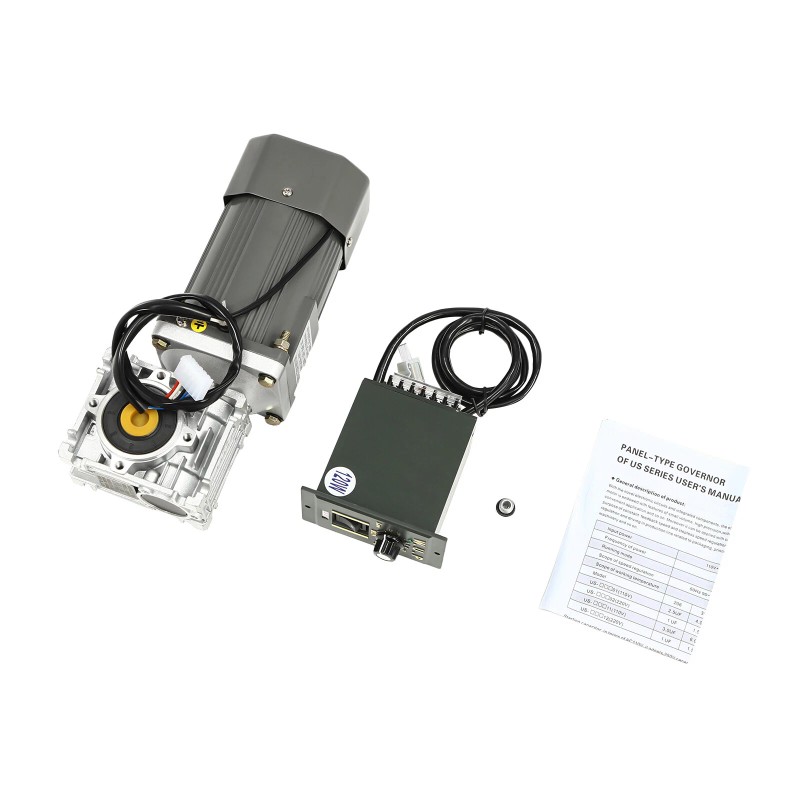

Package Included

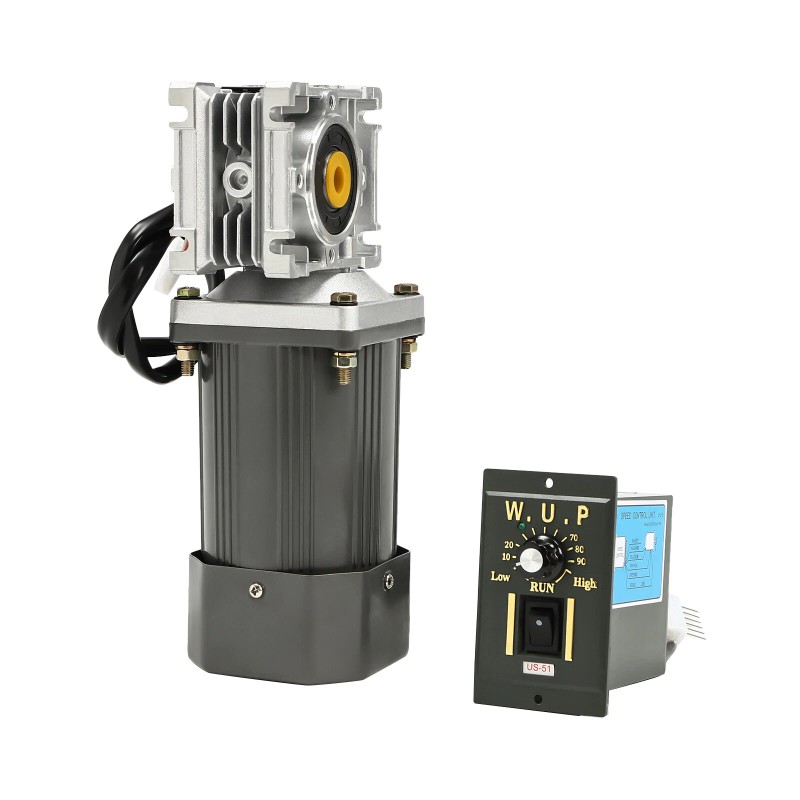

1*Gear Motor
1*Governor
1*Holder
1*English Manual
Notes
- Under different reduction ratios, the output shaft speed varies. The output shaft speed is equal to the maximum value of the motor speed divided by the reduction ratio.
- Based on industry standards, to meet the different needs of customers, our motors do not include power cords. You need to purchase a power cord to connect.
- In terms of AC 110V, it adopts a 250V capacitor with voltage-withstand capacity.
- Please connect each wire correctly to ensure that the machine can operate normally.
- Please do not plug or unplug the power supply when powered on.
- For low load and long-term operation, it is recommended to adjust the speed controller to 50% of full speed. Due to high load and prolonged operation, it is recommended to adjust the speed controller to 70% of full speed.
- Please note that the motor decelerates through voltage reduction, so the torque will also decrease after voltage reduction, which may cause overload; At this point, due to the increase in current, the heat dissipation will deteriorate, and the motor will generate severe heat, which can easily cause insulation failure of the stator coil and machine short circuit
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
