【USA】2 in 1 CNC Router 3018-PRO 5.5W 10W 15W Laser Engraver Wood Milling Machine
【USA Stock & Located in USA & fast shipping】Ship from USA Warehouse fast shipping service to US Customers
Ship from USA Warehouse fast shipping service to US Customers

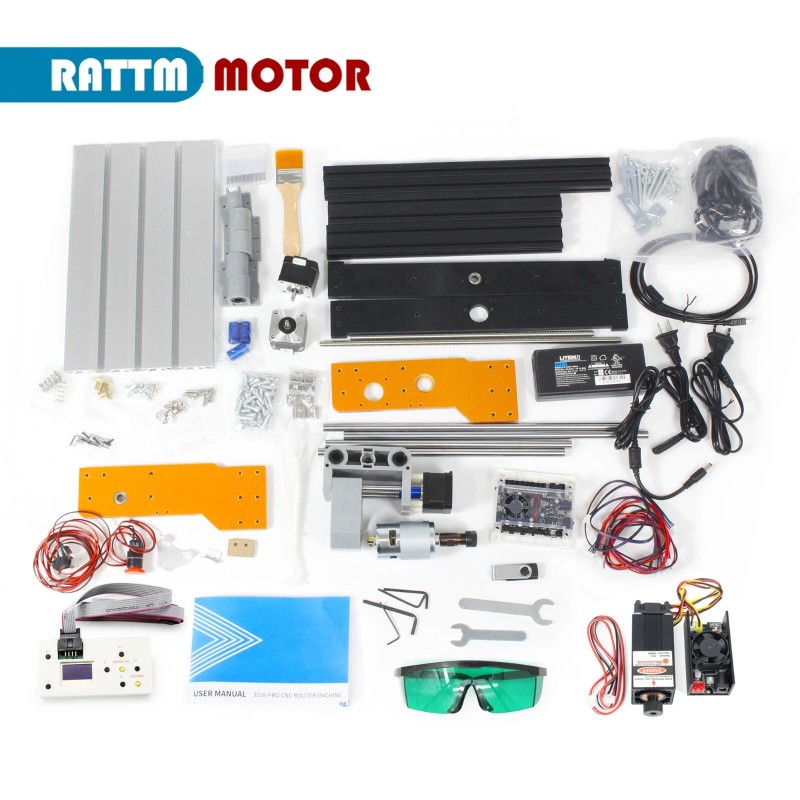

1).Package include (without offline controller without laser)
- 1 Set 3018-PRO CNC Router Engraving Machine Kit with E-Stop with XYZ limit switches
- 1x GRBL 1.1F Control Board
- 1x 775 spindle
- 1x ER11 Collet
- 1x Power Supply
- 10x 20°0.1mm Drill Bits
- 1Set Allen Wrench
- 1x 4G USB flash drive include english user manual & GRBL software
2).Package include (with offline controller without laser)
- 1 Set 3018-PRO CNC Router Engraving Machine Kit with E-Stop with XYZ limit switches
- 1x GRBL 1.1F Control Board
- 1x Offline controller
- 1x 775 spindle
- 1x ER11 Collet
- 1x Power Supply
- 10x 20°0.1mm Drill Bits
- 1Set Allen Wrench
- 1x 4G USB flash drive include english user manual & GRBL software
3).Package include (with offline controller with 5.5W laser)
- 1 Set 3018-PRO CNC Router Engraving Machine Kit with E-Stop with XYZ limit switches
- 1x GRBL 1.1F Control Board
- 1x Offline controller

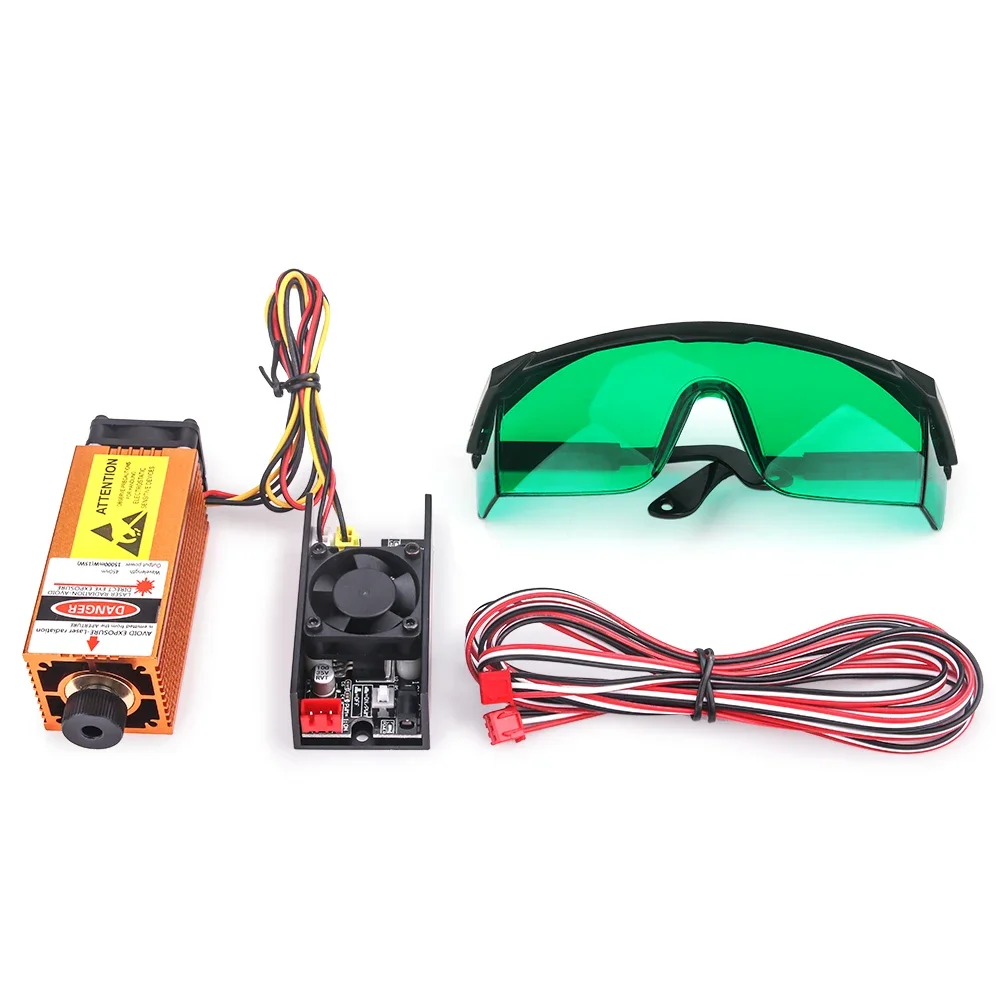

- 1x 5500mW 5.5W Laser Module with cable
- 1x Safety goggles
- 1x 775 spindle
- 1x ER11 Collet
- 1x Power Supply
- 10x 20°0.1mm Drill Bits
- 1Set Allen Wrench
- 1x 4G USB flash drive include english user manual & GRBL software
Feature:
Specification:
- Working area: 300x180x45mm ( 11.8" x 7.1" x 1.8")
- Frame size : 420x350x270mm ( 16.53" x13.78" x 10.63")
- Spindle: 775 spindle motor (12-36V) 24V:10000r/min
- Processing thickness:4.5cm (height 6.4cm)
- Material: PA6 nylon & aluminum profile
- Screw rod: T8 screw rod, lead 4mm, double copper nut to eliminate backlash
- Spindle Chuck: ER11 Collet (can be equipped with 0-7mm)
- Step motor: Nema17 stepper motor 1.3A,0.25N.m
- Power supply : 24V 5.6A power adapter (input voltage 110-240V)
- Support System:Windows XP / Win 7 / Win 8 / Win 10. Linux;
- Connection: PC-USB connection
- Software: GRBL controller
- Supporting file:G-code (.nc/.txt/.tape/.gcode)
- Processing accuracy:About 0.2mm
|
|
|
|
|---|---|---|
775 spindle motor
|

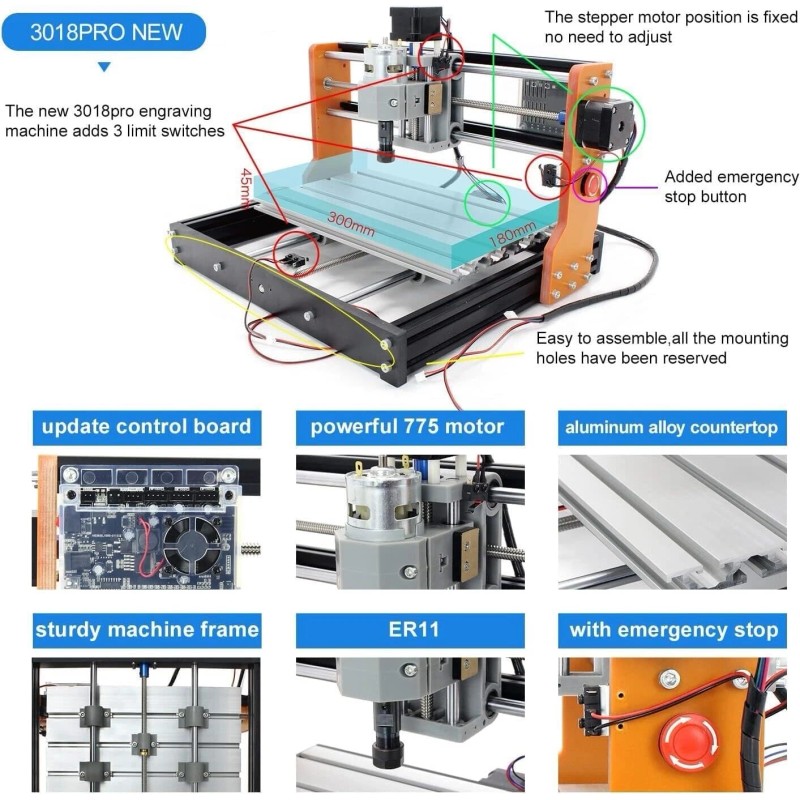

Add E-stop & Limit switches
|

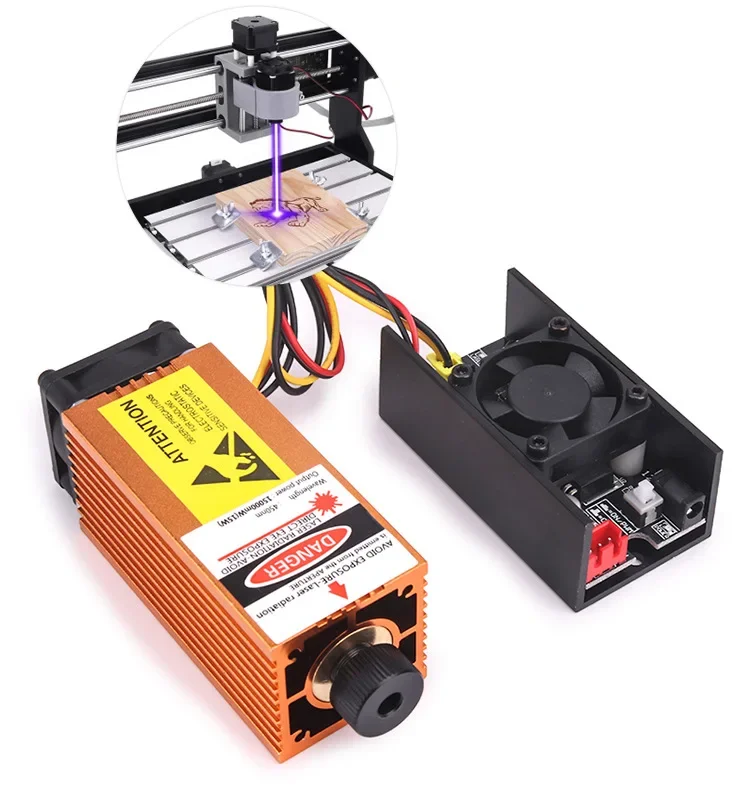

Option (with 2.5W 5.5W 10W or 15W laser module)
|

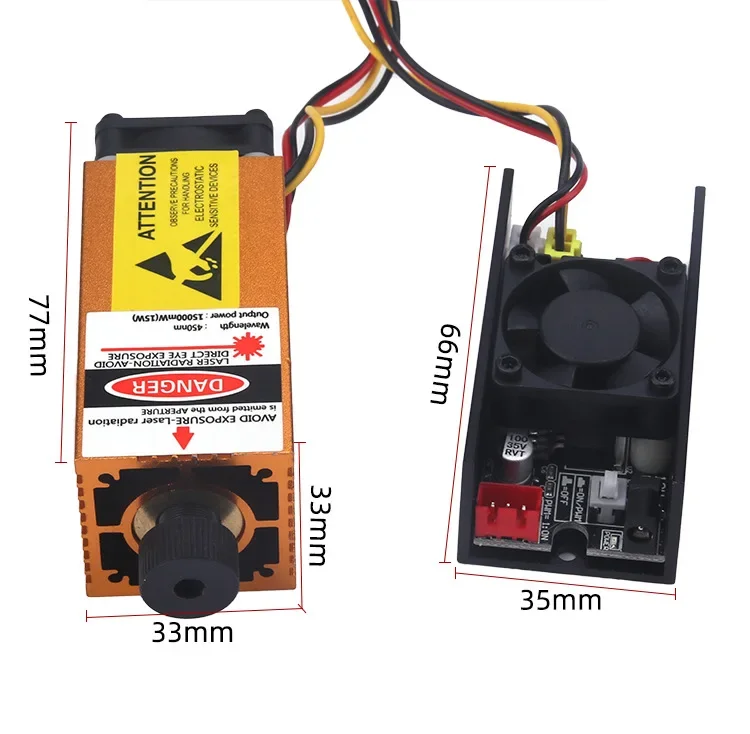

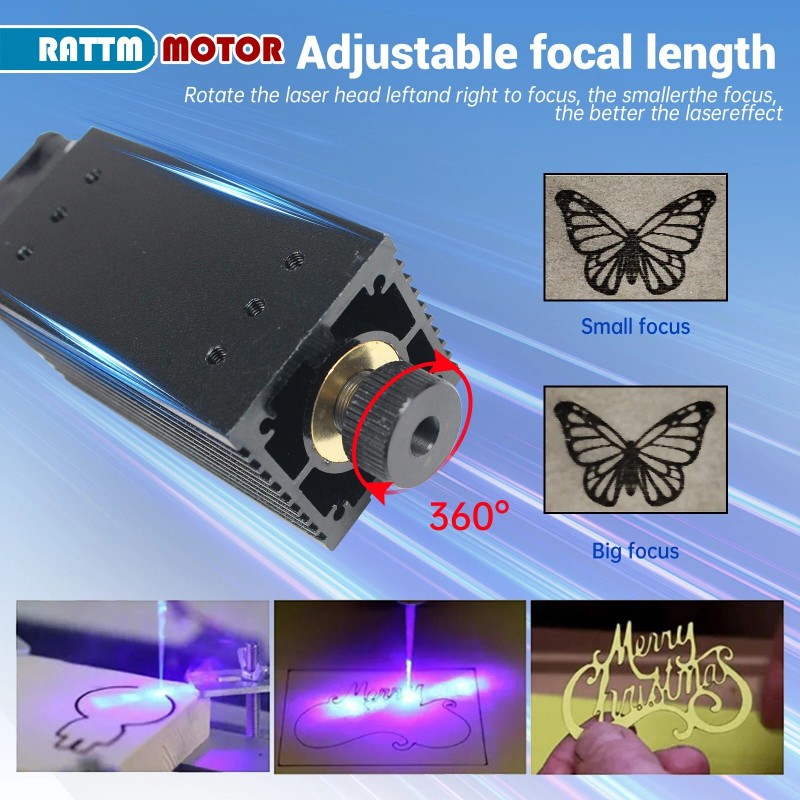

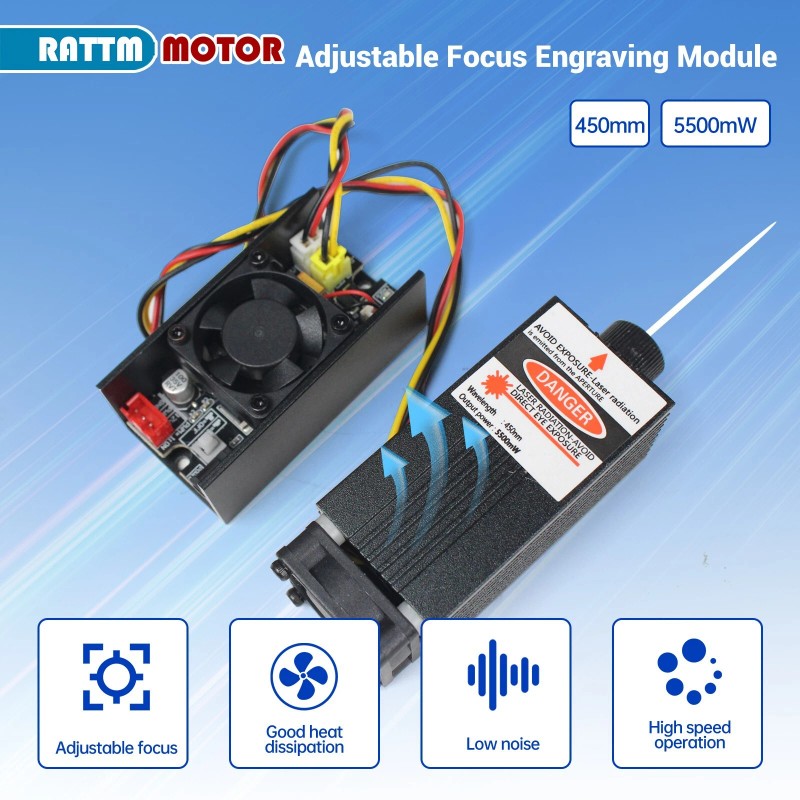

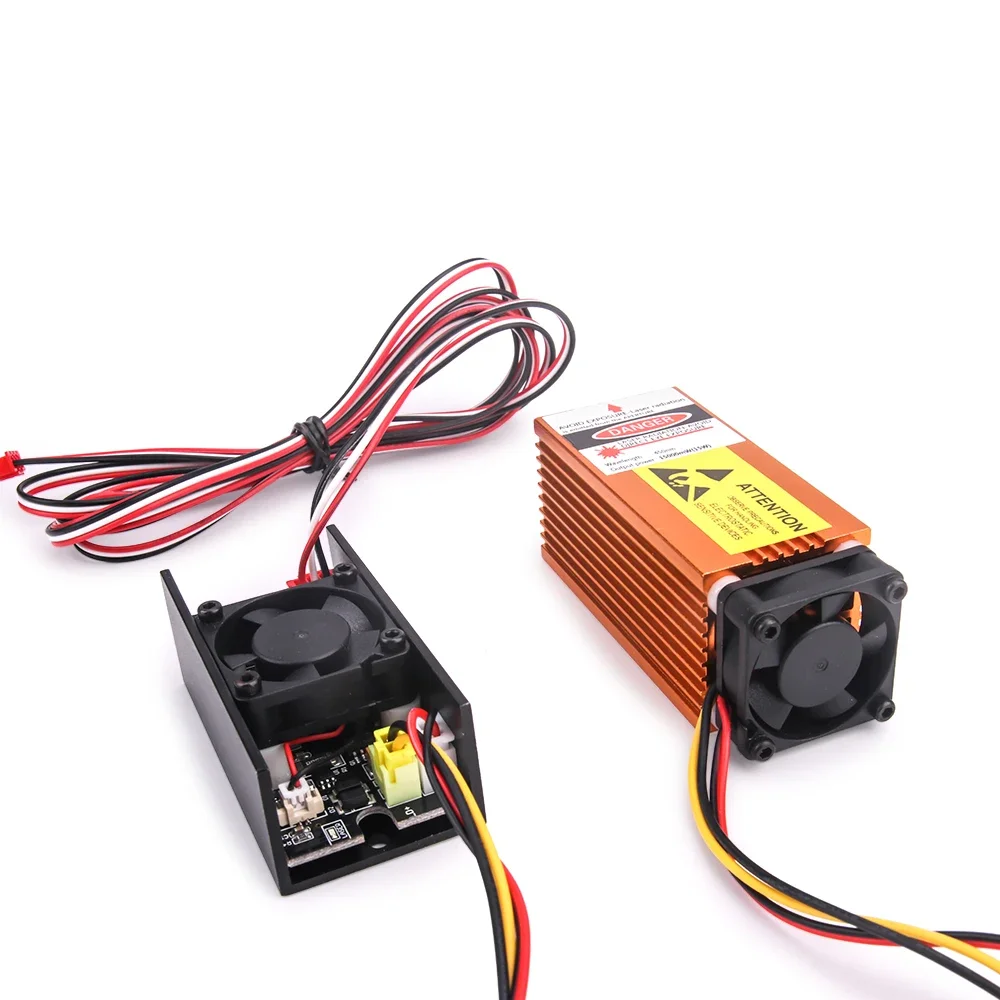

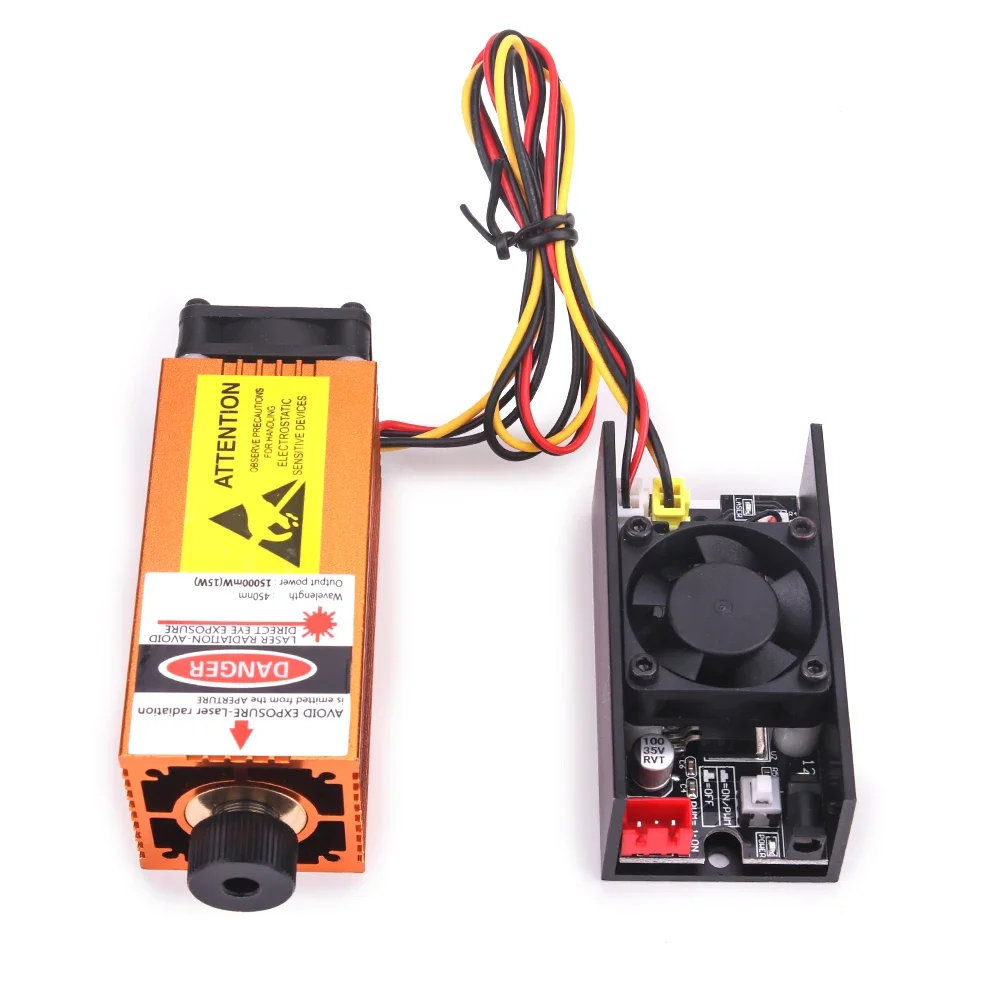

5.5W Laser Module
|
|
|
|
|---|---|---|
Features
|
Applicable materials
|
Advantages
|

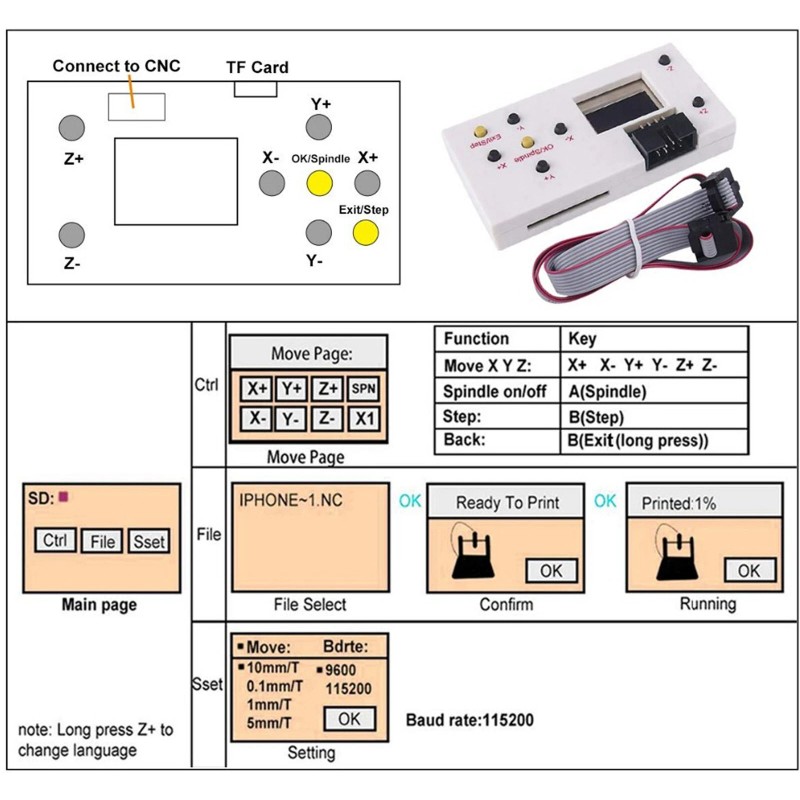

Add Offline controller
Main Page
- Ctrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to Enter
Control Page
- X± Y± Z±: Moving Axis
- OK/Spindle: Spindle ON/OFF
- Exit/Step: Change Step/Exit (long press)
- How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.
- How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.
File Page
- Common supported formats include nc. tex. tap.
- Press [Y+] [Y-] to select file
- Press [Ok] to Enter
- Press [Ok] to begin if you are ready
- Note:Long press [Exit] to stop machining
- Connection: USB (USB-CH340)
- Input voltage: 12-24VDC
- Master chip: atmel 328P (arduino nano)
- Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)
- Power Interface: 5.5-2.5mm DC interface
- Support 3-pins module: support
- Support oftware: GRBL controller,Candle, UniversalGcodeSender
- The spindle supports 0-100% adjustable PWM power.
- Support emergency stop,limit switch, tool setting, steering gear, cooling fan and other functions.
- Support PWM / TTL signal control, power 0-100% adjustable!
- Increase the power button switch
- Cancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.
- Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
- Enhanced spindle drive.can support 20,000 rpm spindle.
- Add the fan port to force heat dissipation
GRBL Software
|

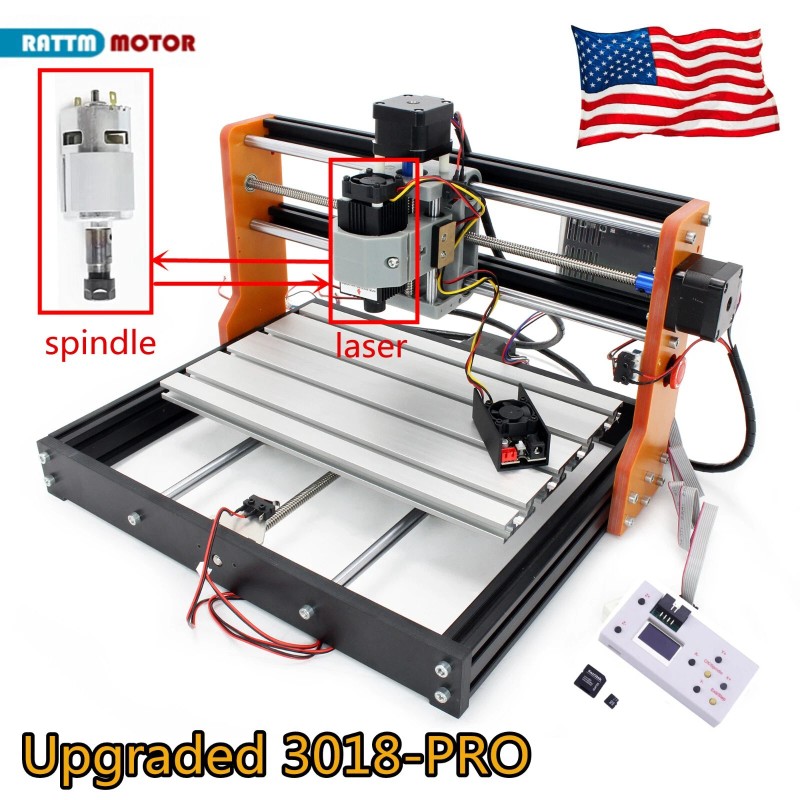

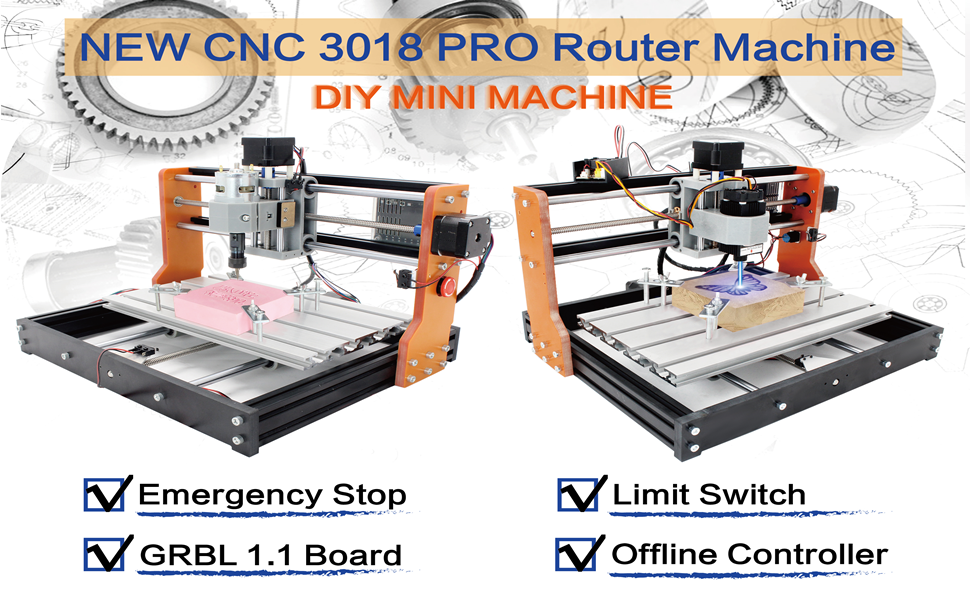

- Upgraded 3018-PRO Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018-PRO cnc machine is very easy to install,stable structure.
- Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
- If you change the spindle to the 5.5W laser module: can be carved wood, bamboo, paper, ivory, leather, flammable plastic, PCB, ceramic/stone, metal surface paint, metal surface plating etc. Can not work on metal, iron, glass, stainless steel, jewelry or silver.
GRBL Software
- Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
- File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.
- Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
Shipping
Please open the package and check if there are some damages before sign,if there are some damages,please do not sign and contact us immediately.
Problem&Feedback
Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it.
Pls contact us before you want to leave any negative feedback.
Refund
Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
