REVODATA Waterproof 48V to 24V PoE Converter, Output 24V, 25W Max, IEEE802.3 af/at, PoE to 24V Adapter for Power Passive 24V Board Devices, Plug and Play(PD3002)
REVODATA Waterproof 48V to 24V PoE Converter, Output 24V, 25W Max, IEEE802.3 af/at, PoE to 24V Adapter for Power Passive 24V Board Devices, Plug and Play(PD3002)
REVODATA Waterproof 48V to 24V PoE Converter, Output 24V, 25W Max, IEEE802.3 af/at, PoE to 24V Adapter for Power Passive 24V Board Devices, Plug and Play(PD3002)
- 【24V Passive PoE Conversion】Effortlessly converts 40V-57V Active/Passive PoE inputs to stable 24V Passive PoE output, delivering up to 25W power for 24V devices like wireless bridges and access points. Ideal for upgrading non-standard PD equipment.

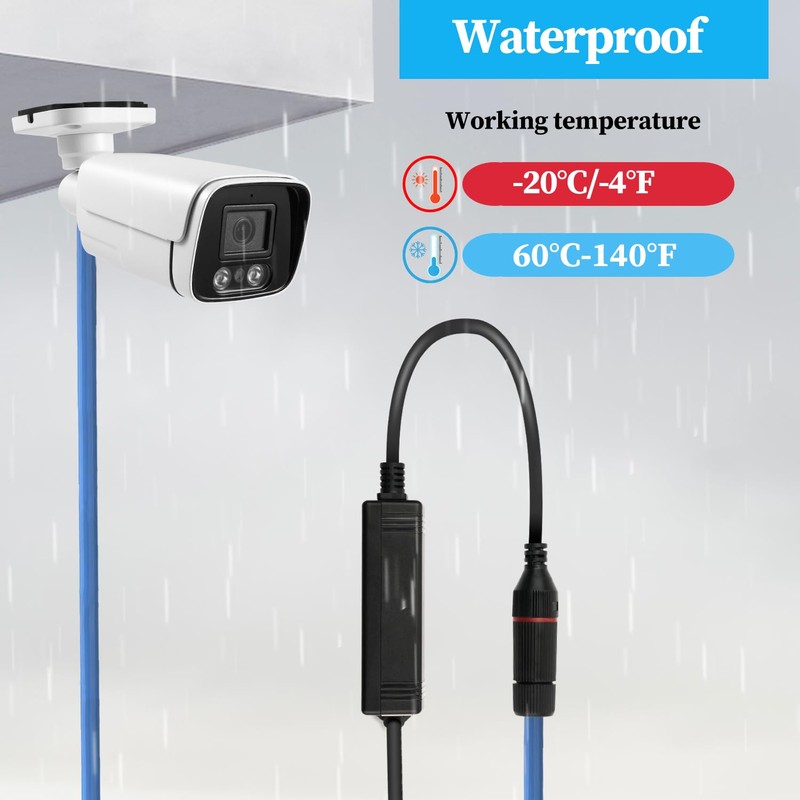

- 【Waterproof 】This PoE splitter is ideal for outdoor installations, ABS housing operates in -20°C to 60°C conditions, paired with IP-rated Waterproof accessories (included), ensuring durability for indoor/outdoor deployments. Such as security cameras, wireless bridges, and outdoor APs.
- 【Multiple Protection】Built-in overheat, overvoltage, overload, and short-circuit protections with 4KV surge resistance, motherboard adopts high efficiency and low noise design solution, which effectively reduces the energy conversion loss and clutter interference, improves the work efficiency, and enhances the stability of the system.
- 【Flexible Installation】Supports both Active and Passive PoE inputs (12+/36- or 45+/78- pin configurations) and features a 21cm extended cable for easy bending, wall penetration, or tight-space installations.
- 【Plug and Play】Simply connect it to your network, and it will seamlessly deliver both power and data to your wireless bridge or camera through a single network cable. Auto-adaptive 10/100Mbps Ethernet speed with dual LED indicators for real-time PoE status monitoring.
| Brand: | REVODATA |
|---|---|
| Size: | Waterproof 100Mbps (PD3002) |
| Manufacturer: | REVODATA |
| Part Number: | 42GJVZR |
| Material Type: | ABS plastic |
| Isin: | IK64KHGJC2JD |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Overview:
PD3002 (Model) is a 25W high-power 10/100Mbps POE Converter, which is a conversion device that converts 40V-57 V POE signal to 24V POE signal.
The PD3002 has one POE input port and one POE output port. The POE input port is connected to the 48V PSE equipment and is responsible for receiving 40V-57V POE signals. The POE output port is connected to the 24V PD device and is responsible for output 24V POE to the 24V PD device, such as various 24V POE wireless Bridges and wireless Access Points.
PD3002 Max output power 25W, conforms to IEEE802.3af/at POE standard, data rates 10/100 Mbps, more than 90% conversion efficiency, 100 meters transmission. Support 40V-57V PoE input, output 24V Passive PoE.
Note: In case if 803.3af compliant PSE is used, total output power should not exceed 12.95w (limited by the 803.3af standard).
Specifications：
● Input: wide POE voltage DC (POE) 40V-57V
● Both Active PoE and Passive PoE inputs are supported
● Input support 12+,36- / 45+,78- full compatibility
● Output: 24V Passive PoE ,and support to customize other voltage of the PoE output signal
● Output POE signal power pin 45+/78-
● The 21CM tail line extends the outlet, so that the outlet can be bent and folded or through
the wall, and the installation is more flexible
● With overheat protection, overvoltage protection, overload protection, short circuit protection
● The conversion efficiency is over 90%
● High temperature resistant and environmentally friendly ABS plastic shell

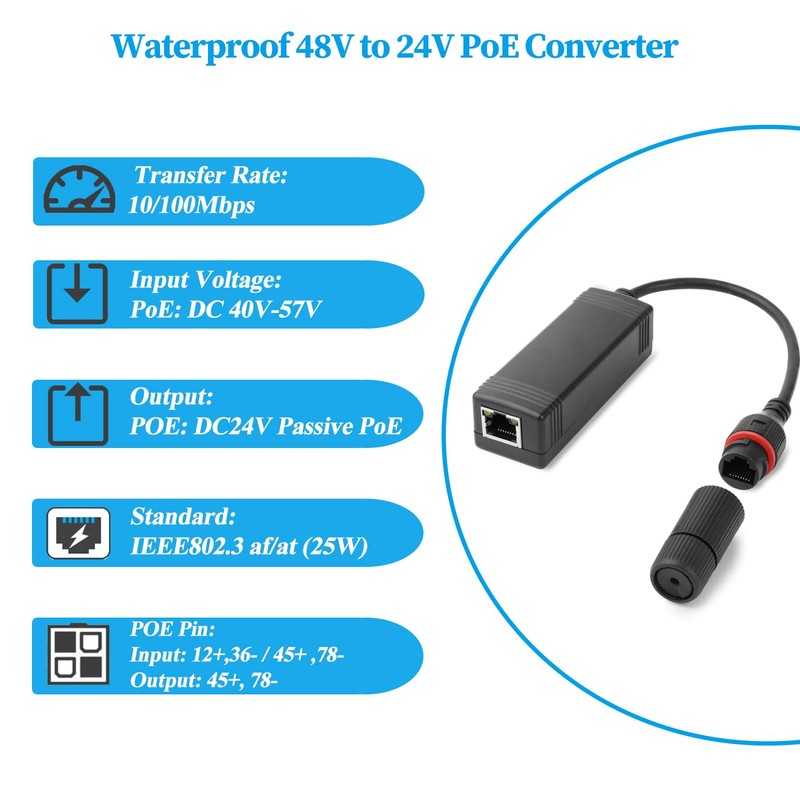

Model: PD3002
Transfer Rate: 10/100Mbps
Input Voltage: POE: DC 40V-57V (Active PoE and Passive PoE)
Output: POE: DC24V Passive PoE
Standard: IEEE802.3 af/at (25W)
POE Pin: Input: 12+,36- / 45+ ,78- Fully compatible
Output: 45+, 78-
Transmission Distance: 100 meters
Surge Protection:4KV
LED Indicator: 2* POE Indicators
Interface:1* POE Input Port (RJ45 femal head)
1* POE Output Port (RJ45 femal head)
Temperature: -20～60℃ For Operating, -30～80℃ For Storage
Humidity: RH95% MAX (Non-condensation)
Dimension: 29.9 x 3.1x 2.6cm
Weight: 75g

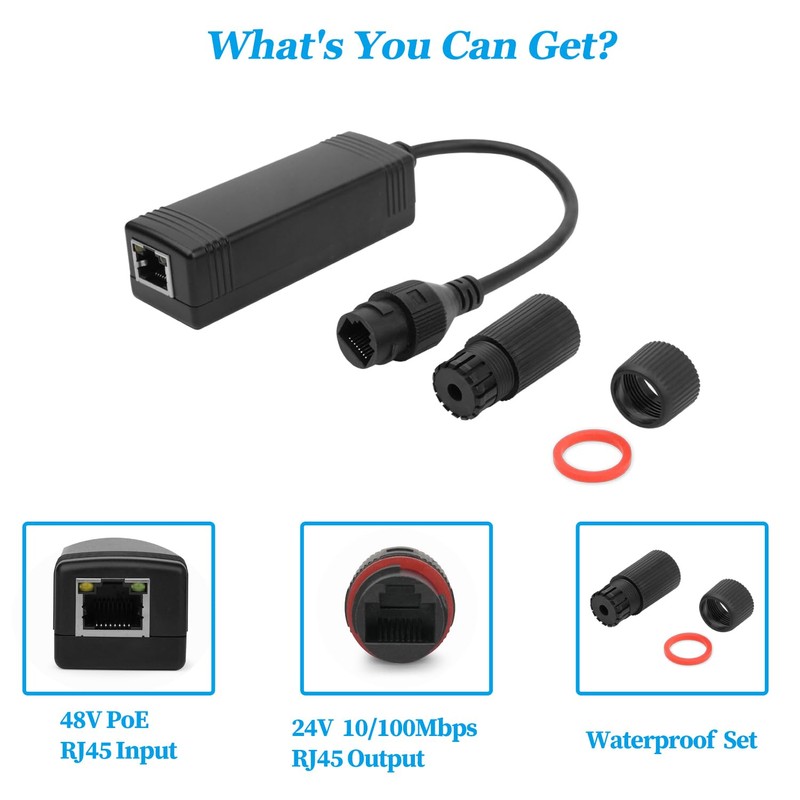

Package Content:
1 * PoE Converter (PD3002)
1 * Waterproof four-piece set
PD3002 (Model) is a 25W high-power 10/100Mbps POE Converter, which is a conversion device that converts 40V-57 V POE signal to 24V POE signal.
The PD3002 has one POE input port and one POE output port. The POE input port is connected to the 48V PSE equipment and is responsible for receiving 40V-57V POE signals. The POE output port is connected to the 24V PD device and is responsible for output 24V POE to the 24V PD device, such as various 24V POE wireless Bridges and wireless Access Points.
PD3002 Max output power 25W, conforms to IEEE802.3af/at POE standard, data rates 10/100 Mbps, more than 90% conversion efficiency, 100 meters transmission. Support 40V-57V PoE input, output 24V Passive PoE.
Note: In case if 803.3af compliant PSE is used, total output power should not exceed 12.95w (limited by the 803.3af standard).
Specifications：
● Input: wide POE voltage DC (POE) 40V-57V
● Both Active PoE and Passive PoE inputs are supported
● Input support 12+,36- / 45+,78- full compatibility
● Output: 24V Passive PoE ,and support to customize other voltage of the PoE output signal
● Output POE signal power pin 45+/78-
● The 21CM tail line extends the outlet, so that the outlet can be bent and folded or through
the wall, and the installation is more flexible
● With overheat protection, overvoltage protection, overload protection, short circuit protection
● The conversion efficiency is over 90%
● High temperature resistant and environmentally friendly ABS plastic shell
Model: PD3002
Transfer Rate: 10/100Mbps
Input Voltage: POE: DC 40V-57V (Active PoE and Passive PoE)
Output: POE: DC24V Passive PoE
Standard: IEEE802.3 af/at (25W)
POE Pin: Input: 12+,36- / 45+ ,78- Fully compatible
Output: 45+, 78-
Transmission Distance: 100 meters
Surge Protection:4KV
LED Indicator: 2* POE Indicators
Interface:1* POE Input Port (RJ45 femal head)
1* POE Output Port (RJ45 femal head)
Temperature: -20～60℃ For Operating, -30～80℃ For Storage
Humidity: RH95% MAX (Non-condensation)
Dimension: 29.9 x 3.1x 2.6cm
Weight: 75g
Package Content:
1 * PoE Converter (PD3002)
1 * Waterproof four-piece set
