RMSTATOR Generator Stator For Honda CBR 600 OEM Repl.# 31120-MBW-J21

Brand: RMSTATOR
Free shipping in USA
2 year warranty
Same day shipping

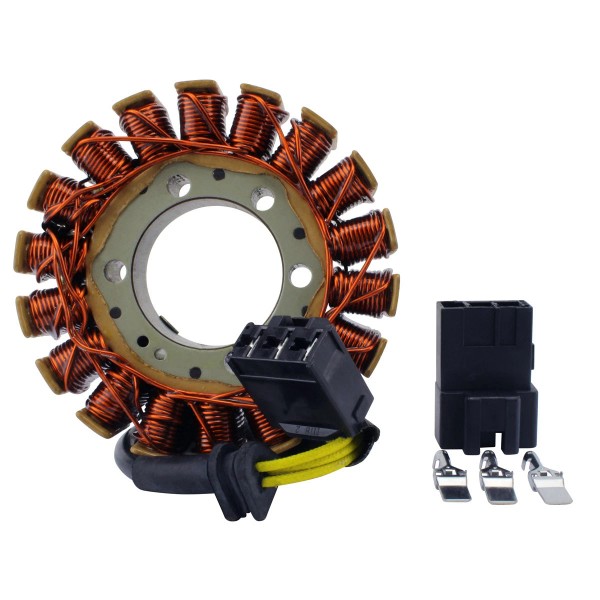

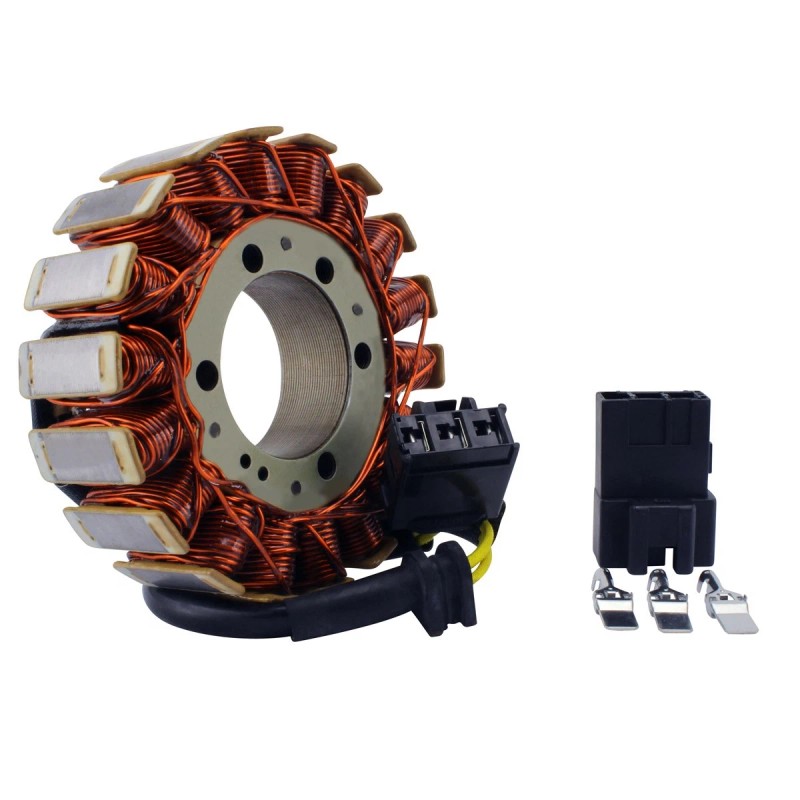

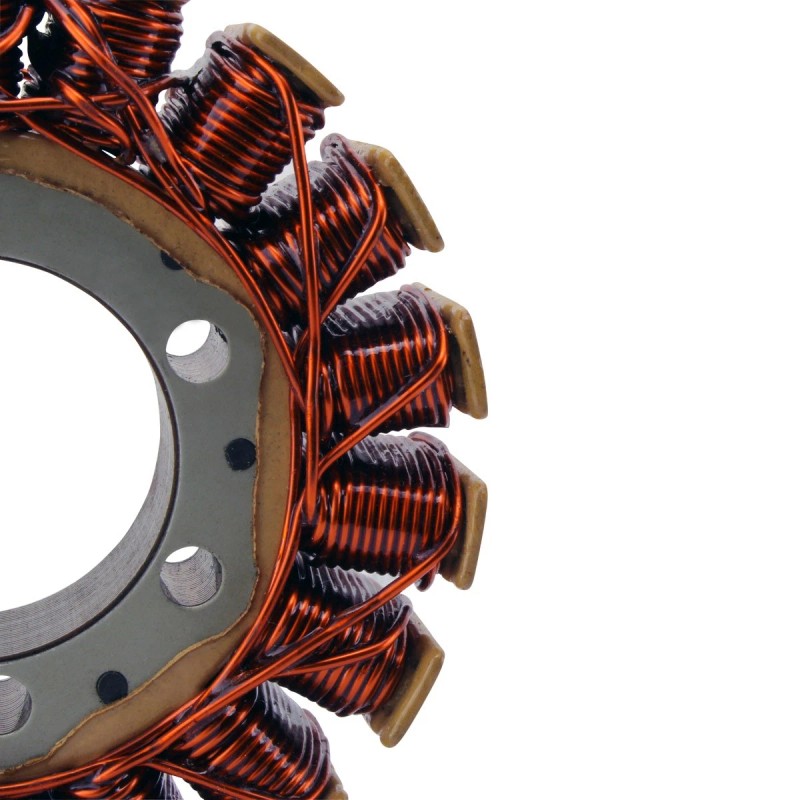

Generator Stator for Honda CBR 600 F4 F4i CBR600F4 2001-2006

KEY FEATURES


Brand new aftermarket stator

Plug-and-play unit, direct fit, easy to install.

Highest grade copper windings, resistant to 200 degrees Celsius

All products shipped are tested

DESCRIPTION



Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Vehicle models fitment



Honda CBR 600 F4i -- 2001-2006

OEM part replacement



31120-MBW-J21

Specifications



Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 24 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 135 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.5 ohms +-20%

instructions



Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulatorrectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
