SHYSKY Heavy Duty Low Noise 24V 120W Micro Brushless DC Water Pump DC60G-24120S-1 39ft 1003GPH, DRY RUN Protection, For Cooling Circulation Pressure Sys

Brand: SHYSKY
  • SHYSKY DC60G-24120S-1 Water pump, Inlet & Outlet: Both 3/4'' threaded, with external diameter of appr. 25mm; Max static lift 12 m (~39 ft, in pressure, 0.12MPa or 17.4PSI); Max horizontal flow rate 3800 LPH (~ 63L/Min, also, ~1003GPH). Typical feature is with good lift and flow rate, suitable for some micro/ medium circulation/ pressure/ cooling sys.
  • Brushless DC motor, also known as EC motor; Magnetic Driven (NO DIRECT AC 100-240V POWER CONNECTION, PROHIBITED); Small size but strong; Low consumption & High Efficiency; Long time continuous working with low noise;Safety - no spark, Explosion - proof; Low noise about 40dB.
  • With typical features of low-voltage safety, high power-efficiency, low noise at normal work and supporting long-time continuous reliable running, this pump is widely applied for fountain landscape, medical equipment water cooling circulation, air compressor cooling circulation, PC server water cooling, yacht/ vehicle water cooling, and vavrious other industrial, medical and household water processing systems. Note that pump cannot be self-priming, and it is important to make sure that there exists no dry run (especially for long time) and avoid impurities in the pumping systems.
  • Variety Power: 24V DC electric source, Battery or Solar Panel, etc; Soft Start with Low in-rush current, Especially suitable for Solar SYS who can not provide over-high startup impulse current; Constant power level when powering vol. is over 24VDC yet under 28VDC, quite useful feature in some cases.
  • NEW FEATURE: DRY-RUN PROTECTION feature is integrated now in default. Pump works at rated voltage: When there exists no/ in-sufficient in-flow (or significant air bubble contained), it is DRY RUN scenario and protection will be triggered: Pump will access stop-run-stop-run---cycle, greatly reducing rotation speed. When flow comes sufficiently again, pump will re-access normal run. It greatly alleviates physical friction between rotor and pump body and heat generated, yet, NOT completely eliminates the friction since still running yet at lower pace.
Brand: SHYSKY
Color: Black
Manufacturer: SHYSKY
Part Number: H6PGPVM
Material Type: Plastic
Isin: IJLAFUYAVUON

$243.89

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled By IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
SHYSKY Heavy Duty Low Noise 24V 120W Micro Brushless DC Water Pump DC60G-24120S-1 39ft 1003GPH, DRY RUN Protection, For Cooling Circulation Pressure Sys

SHYSKY Heavy Duty Low Noise 24V 120W Micro Brushless DC Water Pump DC60G-2412...

$243.89

Specifications

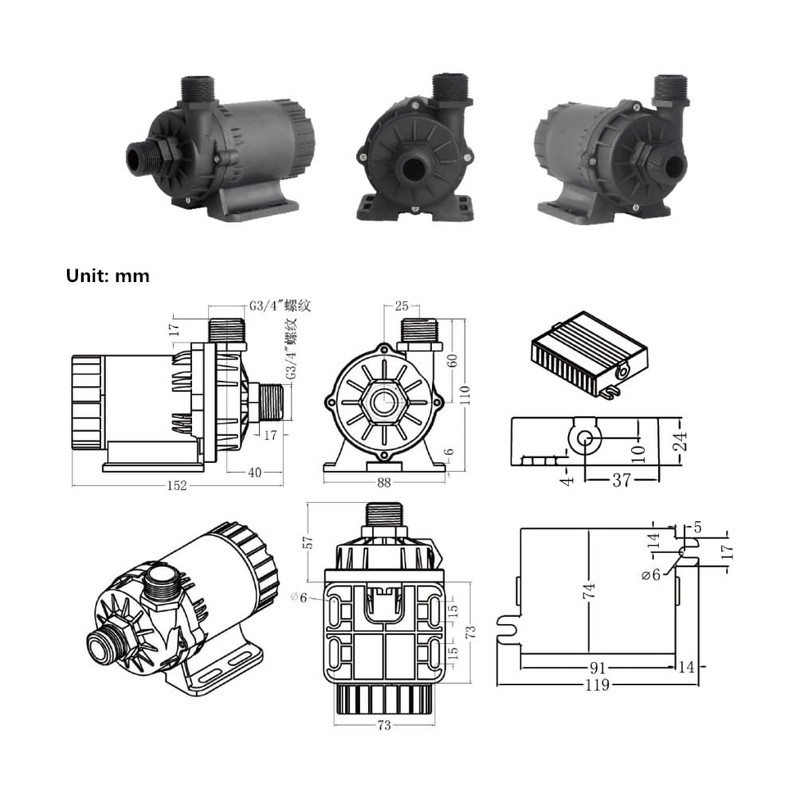

Dimension and weight: 152 x88 x110 mm (~6 x 3.5 x 4.3 inch); appr. 1.5Kg (~3.3lbs)
External diameter of outlet: 3/4” thread(M25)
External diameter of inlet: 3/4” thread(M25)
Driving mechanism: Brush-less, magnetic isolated design
Material of pump shell: ABS,PES/SPS/PPS/PA66+30%GF (Optional when customization at MOQ)
Condition of use: Support continuously work, submersible or land use (note that pump cannot be not self-priming)
Suitable medium: Water, oil, etc (corrosive or special fluids shall be tested in advance.)
(Pre-test needed for special liquid)
Max working temperature: 100 ~ 120℃(for S/A sub-series)
Power consumption: 120W @24VDC
Rated voltage: 24Vdc
Working voltage range: 12Vdc ~ 26Vdc
Max load current: 5A @ 24VDC
Max horizontal flow rate: 3800L/H @24VDC (~1003 G/H)
Max static lift: 12M @24VDC (for S/A sub-series) (~ 39 ft)
Noise class: < 40dB, at 1m distance
Waterproof class: IP68
Life span: Can be more than 20,000hrs, installed at ideal environment.
Power supply: Can be suitable solar panel, batteries, adapter or other power source

Protection function: Speed adjustable by PWM signal, 0~5V analog signal or potentiometer (NOT SUPPORTED. functions will be optional for customization demand for MOQ)
Power regulation function: IP68(suitable for submersible installation)

Feature:
small size with high efficiency,maintenance-free;
Use ceramics shaft and carbon fiber sleeve;
Completely water proof (IP68);
Brush-less dc control without pollution, long life span;
OEM and ODM service accept;
Offer Pump related control system design

Package includes:
1 x DC60G-24120S-1 Powerful 24VDC Micro DC Pump
(No power supply is included)
