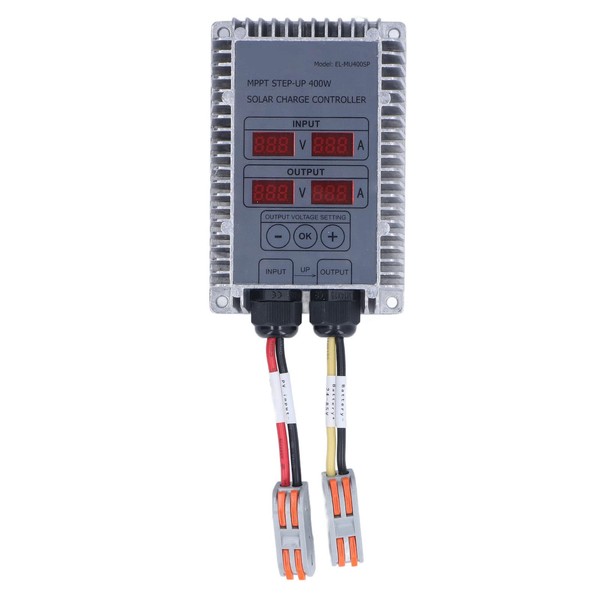

Solar Battery Charge Controller, Boost MPPT Voltage Adjustable Waterproof with Display Solar Battery Maintainer for Solar System 24‑85V (400W)

Brand: WOHPNLE
  • Real-Time MPPT Tracking: The Solar Battery Charge Controller employs Maximum Power Point Tracking (MPPT) technology, which is suitable for solar panels with different voltages. This advanced feature allows the controller to track the optimal power point in real-time, ensuring maximum energy harvest from the solar panels.
  • High Conversion Efficiency: Equipped with a high-efficiency synchronous rectifier circuit structure, this charge controller excels in converting energy even in low power charging environments. The controller’s efficiency can reach up to 95%, which means more solar energy is converted into usable power.
  • Adjustable Voltage and Waterproof Design: The output voltage of this solar battery charge controller is adjustable, making it compatible with both acid and lithium batteries. Additionally, the controller boasts an IP66 rating, ensuring it is waterproof, dustproof, and shockproof.
  • Adjustable Voltage and Waterproof Design: The output voltage of this solar battery charge controller is adjustable, making it compatible with both acid and lithium batteries. Additionally, the controller boasts an IP66 rating, ensuring it is waterproof, dustproof, and shockproof.

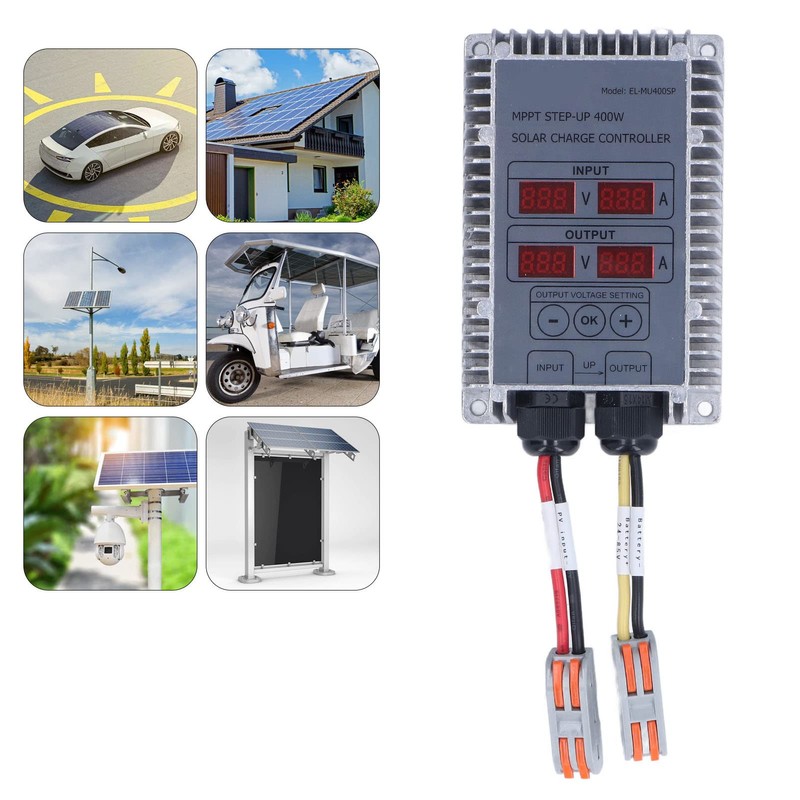

  • Wide Range of Applications: This versatile solar battery charge controller can be used in various scenarios, including solar street light controllers, solar chargers, solar electric bicycles, solar electric tricycles, and more. Its adaptability to different applications makes it an ideal choice for both residential and commercial solar power systems, providing flexibility and reliability wherever it is needed.
Brand: WOHPNLE
Size: 400W
Manufacturer: WOHPNLE
Part Number: 9B46DGN
Product Dimensions: 6.3 x 3.15 x 2.36 inches; 1.07 pounds
Isin: INZYN7WIJ6VM

$130.06

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Solar Battery Charge Controller, Boost MPPT Voltage Adjustable Waterproof with Display Solar Battery Maintainer for Solar System 24‑85V (400W)

Solar Battery Charge Controller, Boost MPPT Voltage Adjustable Waterproof wit...

$130.06

Item Type: Solar Battery Charge Controller

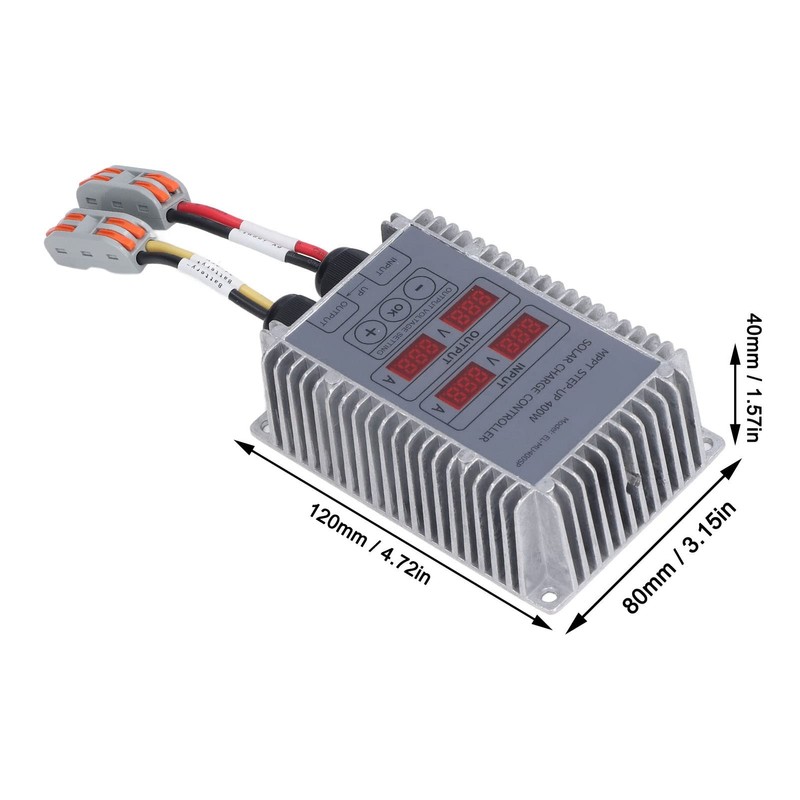

Product Size: Approx. 120 x 80 x 40mm / 4.72 x 3.15 x 1.57in
Efficiency: 95%
Weight: 485 g / 17.1 oz(approx.)
Applicable battery All kinds of batteries (charging voltage between 24-85V)
Suitable for photovoltaic panel parameters Open circuit voltage 18V-55V
Maximum power voltage 17V-55V

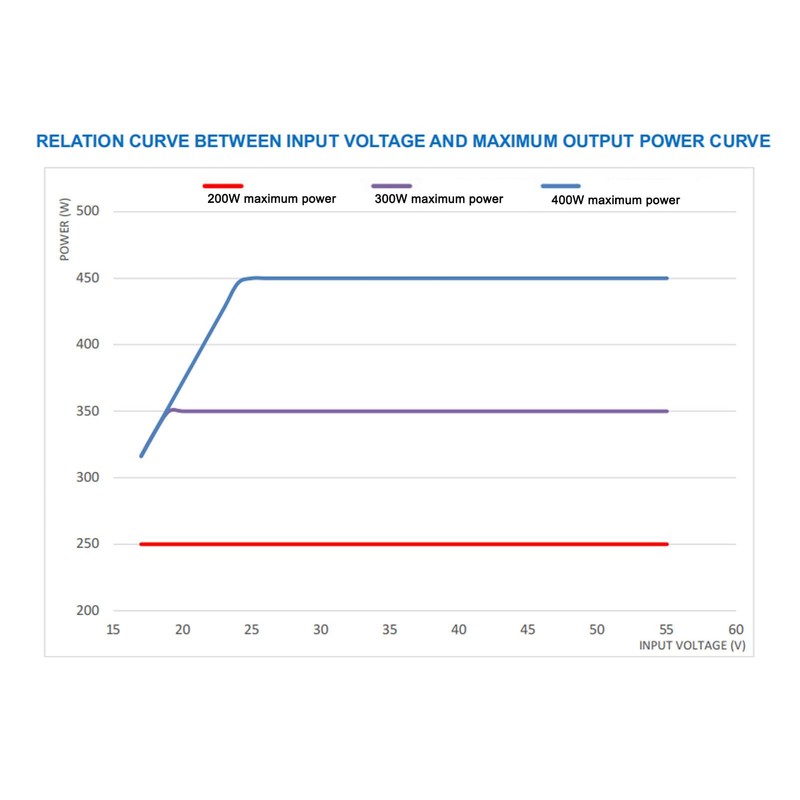

Charging module PV input power 200W/300W/400W
PV input starting voltage 18V-55V
PV input tracking voltage 17V-55V
Output to battery voltage 24-85V (adjustable)
Output to battery current Maximum 15A
Load loss 0.35W
Voltage regulation 1%
Load regulation 1%
Protection module Battery undervoltage protection Have
Battery terminal short circuit protection Have
Battery non reverse protection None
Overcurrent Protection Have
Temperature protection Have
Protection class IP66
Operating temperature -40℃~+65℃

Package List:
1 x Solar Battery Charge Controller
1 x User Manual

Note:

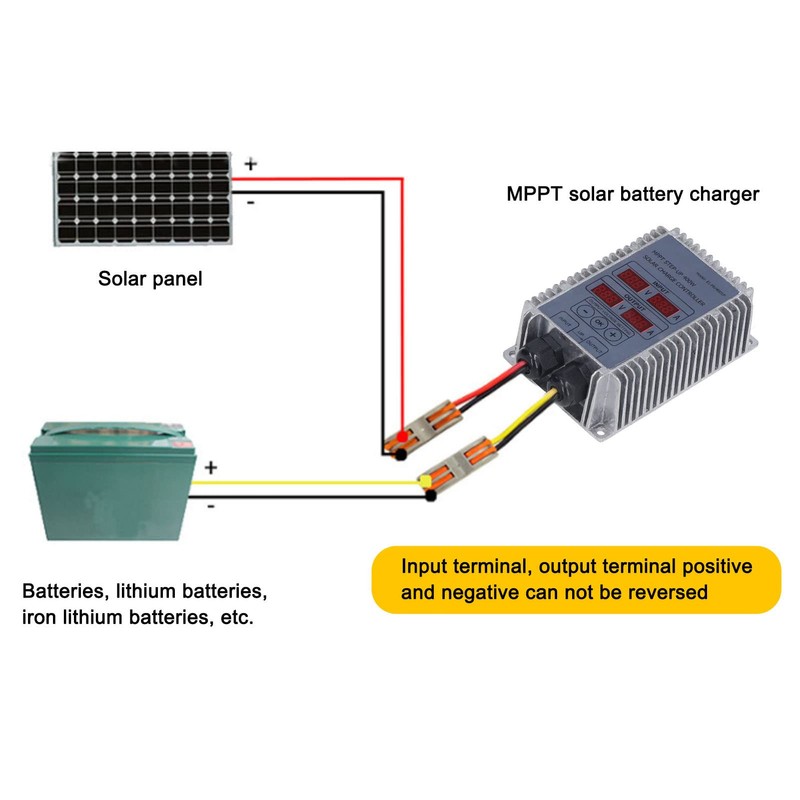

Check before installation:
1. Check whether the appearance is in good condition before installation
2. Check the label on the MPPT controller housing to verify that the performance of the specification MPTT controller matches the device.
3. The MPPT controller should be fixed on an iron or metal bracket to avoid the vibration of the machine due to instability.
4. The MPPT controller should leave a certain space around the casing for installation.
5. The output and input wires should be as short as possible to avoid excessive energy consumption during transmission.
6. There is high voltage and high current in the machine, and non‑professionals are not allowed to disassemble it.
7. Input and output terminals should be reliable and not loose to avoid heating at the connection point.
