SZMWKJ 12V Single Axis Solar Tracking Kit W/ 6000N 18" DC Linear Actuator W/ Controller

Brand: SZMWKJ
12V Single Axis Solar Tracking Kit W/ 6000N 18" DC Linear Actuator W/ Controller


Single Axis Solar Panel Tracking 6000N Controller W/ 18" DC Linear Actuator Kits

Here for sale is Complete Single Axis Solar Tracker Kits, items Include 1PCS 6000N Linear Actuator&Mounting Brackets and the Electronic LCD Controller Unit you need for a single axis solar tracker system.


Build your own frame and you will get a professional grade Single Axis Solar Tracker System!

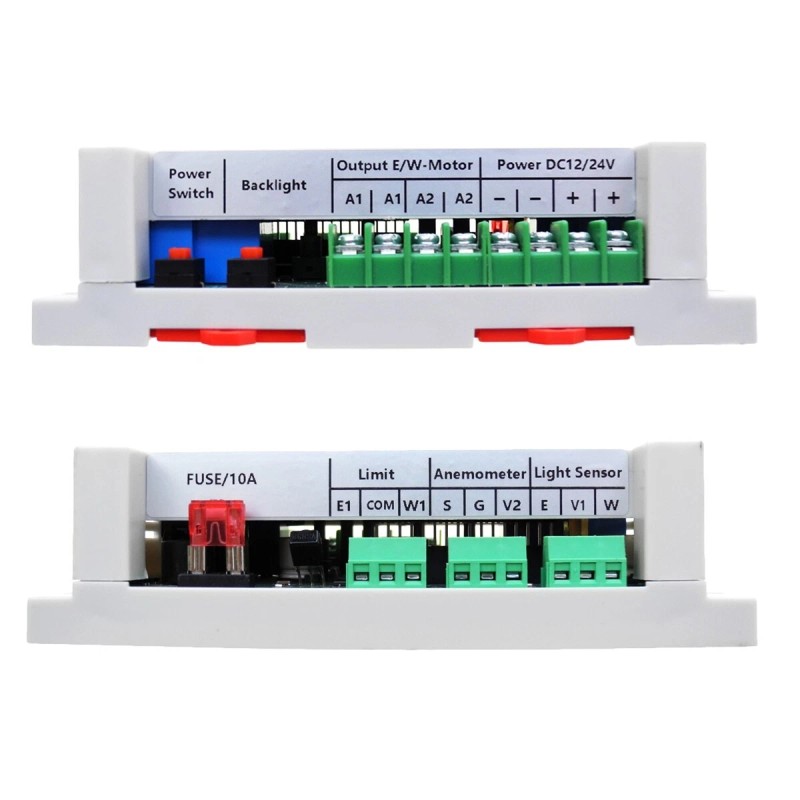

Wiring Diagram:

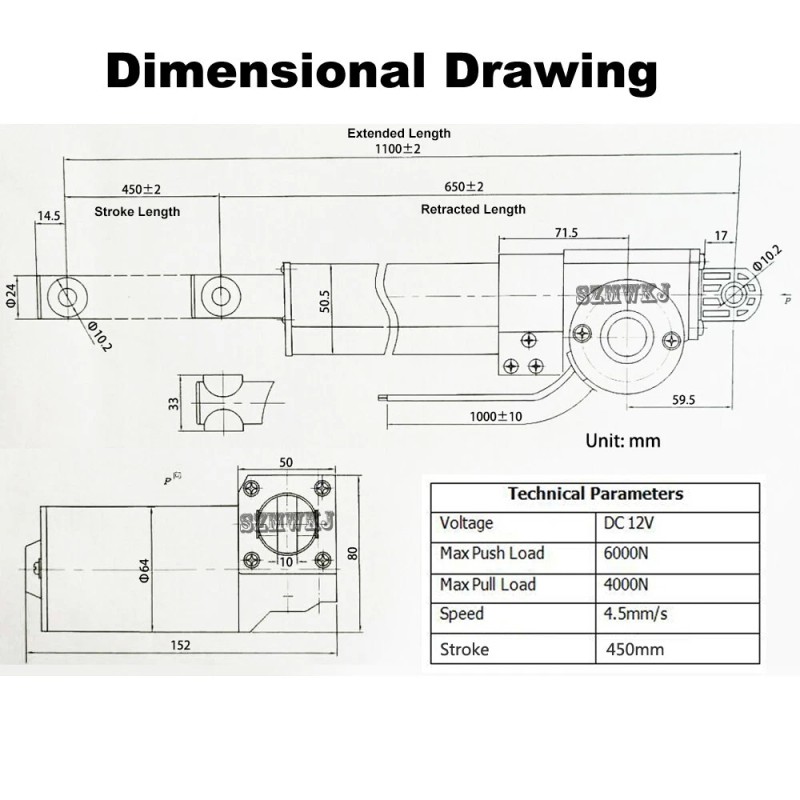

About the 6000N Linear Actuator:




For the 6000N linear actuator, we provide 150/200/300/400/450mm Stroke Optional, here for sale is 450mm 18" Stroke, if you need other size,  Pls Click Here

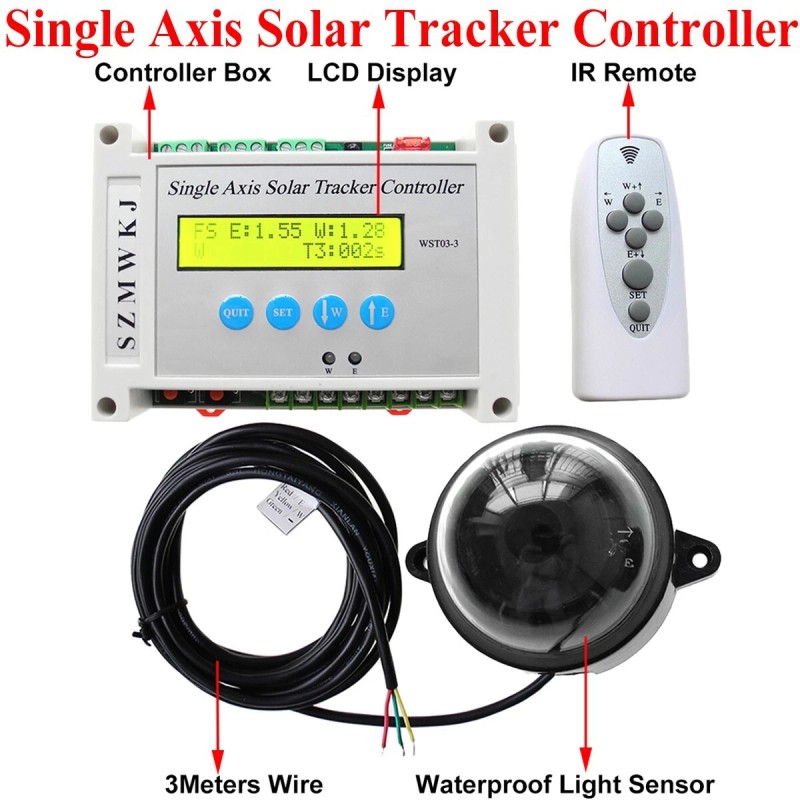

About the Solar Tracker Controller:

This is WST03-3 Single Axis Solar Tracker Controller, The whole unit contains the Controller Box, Light Sensor With 3 Meters Wire and IR (infrared) Remote control.

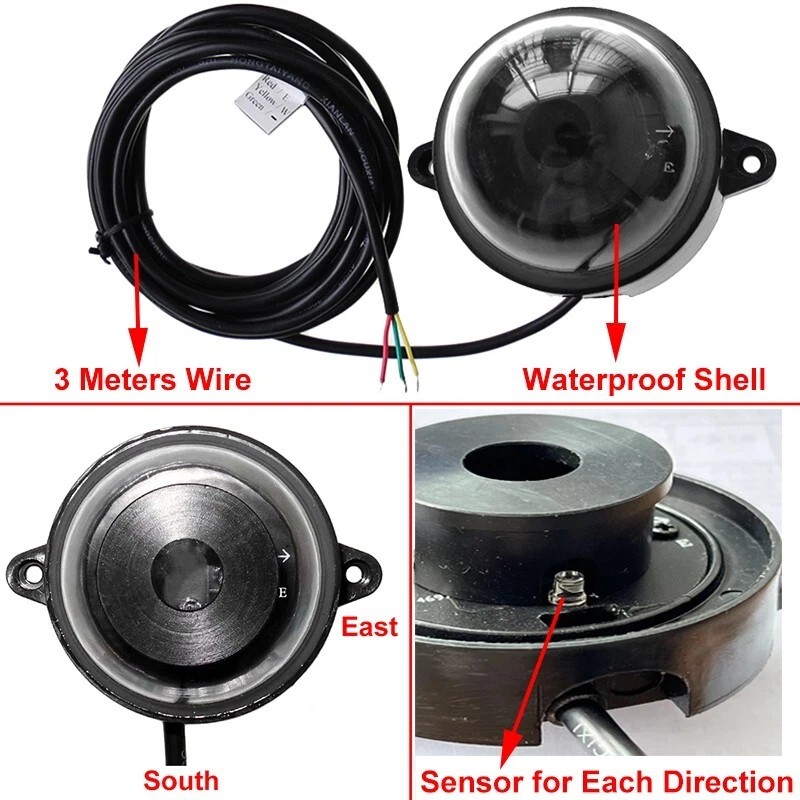

The controller analyzes the signal from the light sensor, then control the motor of the corresponding direction to execute positive rotation, reverse rotation and stop, and make the platform to be aligned with the sun.

Three Modes will appear during the controller's auto working, the controller will automatically switch the three modes according to different conditions.

The three Modes are: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode. Users can set the parameters and working modes by the LCD screen for actual needs.

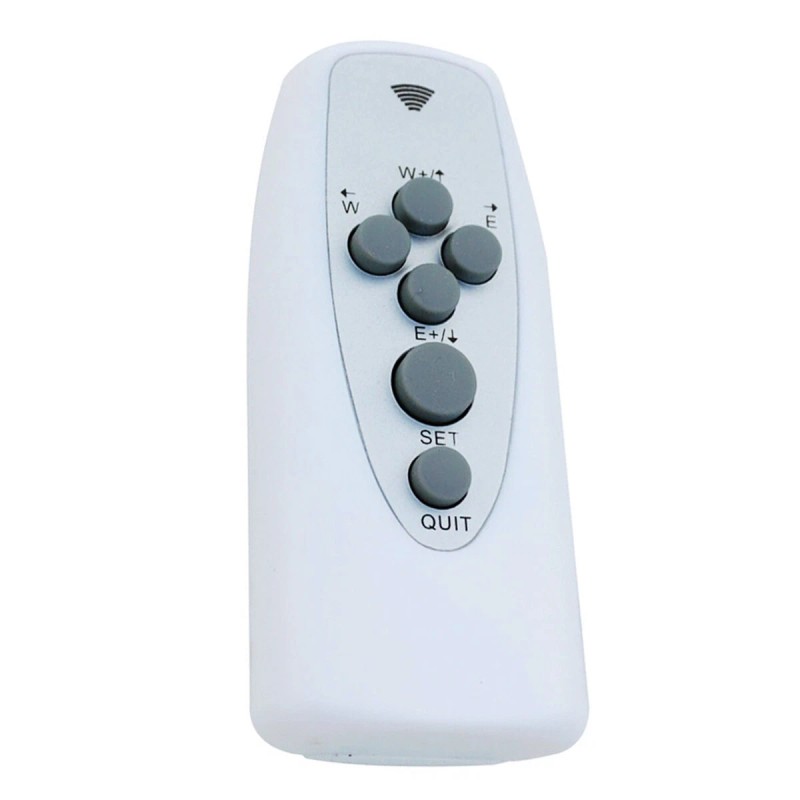

There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time.

Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs.

We provide more instruction and detailed settings in the English User's Manual.





Application:

Solar tracking system: Solar photovoltaic System, solar thermal system, light guide and lighting, etc.

Want more information? Additional information and detailed instructions can be found in the User's Manual

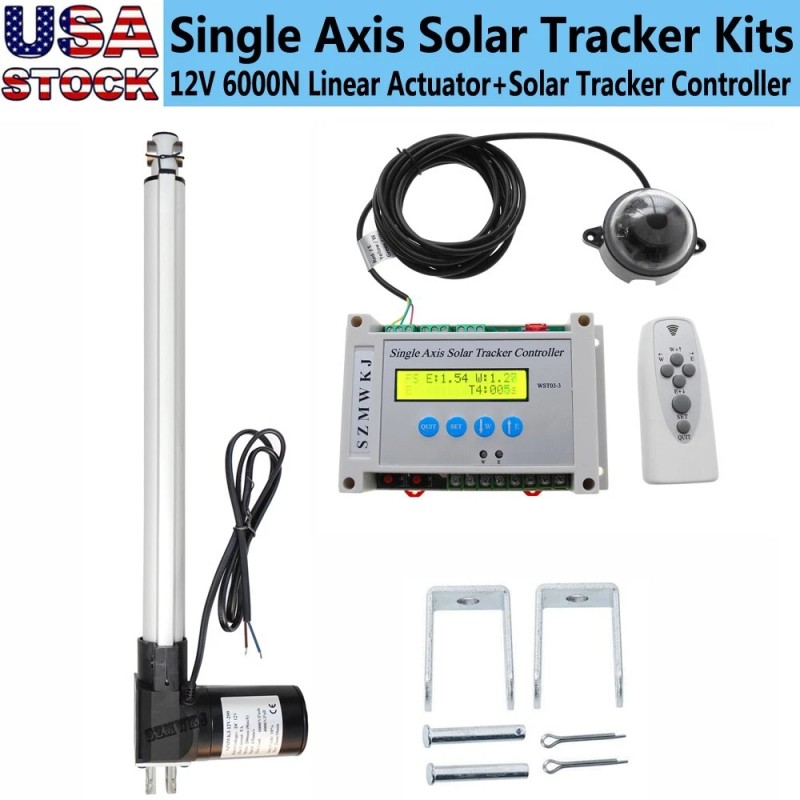

Package Included:


★ 1x 6000N 450mm 18" Stroke DC 12V  Linear Actuator.
★ 1x LCD Single Axis Solar Tracker Controller +Light Sensor+IR Remote.

★ 2x Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator.

Product Highlights of the Solar Tracker System:


* Standard 1 year warranty.
* Easy-installation.
* Single axis solar tracker provides up to 35% more power production.
* With 6000N/600kg/1320lbs max lift linear actuator for large/high power solar panel system.
* Engineered to hold up to 1000 Watts of solar panels.
* Small self–consumption.


Caution:

* The Input Voltage for the whole system should be DC 12V.
* Never approach a solar tracker while the
Solar Tracker electronics are “on”.

* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.

* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.


  • About Shipping:


    This item will be shipped out within 1-3 Business Days after confirmed payment received.

    • * Goods in stock in USA warehouses, buyer can get the parcel around 3-5 business days.

    • We provide tracking number freely for all buyers.

    • Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items.

    • * Any potential customs tax fee applied to the parcel should be covered by the buyer.

  • On Oct 18, 2023 at 20:15:41 PDT, seller added the following information:
    Brand: SZMWKJ
    Isin: I0WW7TDY0RBJ

    $318.70

    • Free shipping in US
    • Arrives:

    • Free 30-Day returns

    In Stock

    Sold by , Fulfilled by IBSPOT
    Ships from USA

    IBspot Buyer Protection

    Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

    supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

    GUARANTEED SAFE CHECKOUT

    More seller options

    Starting from

    Compare all sellers
    • MONEY BACK GUARANTEE

      30 days money back guarantee, no additional fee charged.

    • EXCELLENT SUPPORT

      We provide 24/7 online customer support via email.

    • Fast Shipping

      One week domestic shipping. Global delivery to the US in 2 weeks.

    scroll to top arrow
    SZMWKJ 12V Single Axis Solar Tracking Kit W/ 6000N 18" DC Linear Actuator W/ Controller

    SZMWKJ 12V Single Axis Solar Tracking Kit W/ 6000N 18" DC Linear Actuator W/ ...

    $318.70

    12V Single Axis Solar Tracking Kit W/ 6000N 18" DC Linear Actuator W/ Controller


    Single Axis Solar Panel Tracking 6000N Controller W/ 18" DC Linear Actuator Kits

    Here for sale is Complete Single Axis Solar Tracker Kits, items Include 1PCS 6000N Linear Actuator&Mounting Brackets and the Electronic LCD Controller Unit you need for a single axis solar tracker system.


    Build your own frame and you will get a professional grade Single Axis Solar Tracker System!




    Wiring Diagram:



    About the 6000N Linear Actuator:




    For the 6000N linear actuator, we provide 150/200/300/400/450mm Stroke Optional, here for sale is 450mm 18" Stroke, if you need other size,  Pls Click Here




    About the Solar Tracker Controller:

    This is WST03-3 Single Axis Solar Tracker Controller, The whole unit contains the Controller Box, Light Sensor With 3 Meters Wire and IR (infrared) Remote control.


    The controller analyzes the signal from the light sensor, then control the motor of the corresponding direction to execute positive rotation, reverse rotation and stop, and make the platform to be aligned with the sun.

    Three Modes will appear during the controller's auto working, the controller will automatically switch the three modes according to different conditions.

    The three Modes are: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode. Users can set the parameters and working modes by the LCD screen for actual needs.

    There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time.

    Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs.

    We provide more instruction and detailed settings in the English User's Manual.








    Application:

    Solar tracking system: Solar photovoltaic System, solar thermal system, light guide and lighting, etc.

    Want more information? Additional information and detailed instructions can be found in the User's Manual




    Package Included:


    ★ 1x 6000N 450mm 18" Stroke DC 12V  Linear Actuator.

    ★ 1x LCD Single Axis Solar Tracker Controller +Light Sensor+IR Remote.

    ★ 2x Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator.




    Product Highlights of the Solar Tracker System:


    * Standard 1 year warranty.
    * Easy-installation.
    * Single axis solar tracker provides up to 35% more power production.
    * With 6000N/600kg/1320lbs max lift linear actuator for large/high power solar panel system.
    * Engineered to hold up to 1000 Watts of solar panels.
    * Small self–consumption.


    Caution:

    * The Input Voltage for the whole system should be DC 12V.
    * Never approach a solar tracker while the
    Solar Tracker electronics are “on”.

    * The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.

    * Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.



  • About Shipping:


    This item will be shipped out within 1-3 Business Days after confirmed payment received.

    • * Goods in stock in USA warehouses, buyer can get the parcel around 3-5 business days.

    • We provide tracking number freely for all buyers.

    • Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items.

    • * Any potential customs tax fee applied to the parcel should be covered by the buyer.











  • PushAuction

    On Oct 18, 2023 at 20:15:41 PDT, seller added the following information:

    DataCaciques
    • Current Output: Max 15A
    • Max Load Current: 3A
    • System Configuration: DC Power
    • Solar Technology: Solar Tracker
    • Power Source: Electricity
    • Custom Bundle: No
    • Linear Actuator Stroke Length: 450mm/18 Inch
    • MPN: Does Not Apply
    • Current Type: DC
    • Linear Actuator Max Pull Load: 4000N/400KG/880lbs
    • Voltage: 12 V
    • Features: All Daylight Conditions
    • Warranty: Standard 1 Year
    • Linear Actuator Max Push Load: 6000N/600KG/1320Lbs
    • No-Load Current: 1A
    • Current Rating: Max 15A
    • Input Voltage: DC 12V
    • Modified Item: No
    • Certification: CE
    • Brand: SZMWKJ
    • Operating Frequency: 2min/18min (Max)
    • Type: Solar Tracker
    • Linear Actuator Speed: 4.5mm/s
    • Model: NST6000N-450
    • Recommended Environment: Outdoor
    • Duty Cycle: 10%
    • Resistance Properties: Does Not Apply
    • Country/Region of Manufacture: China
    • Charging Mode: Does Not Apply
    • Application: Home/Garden
    • Power: Max 180W
    • UPC: Does not apply
