Description

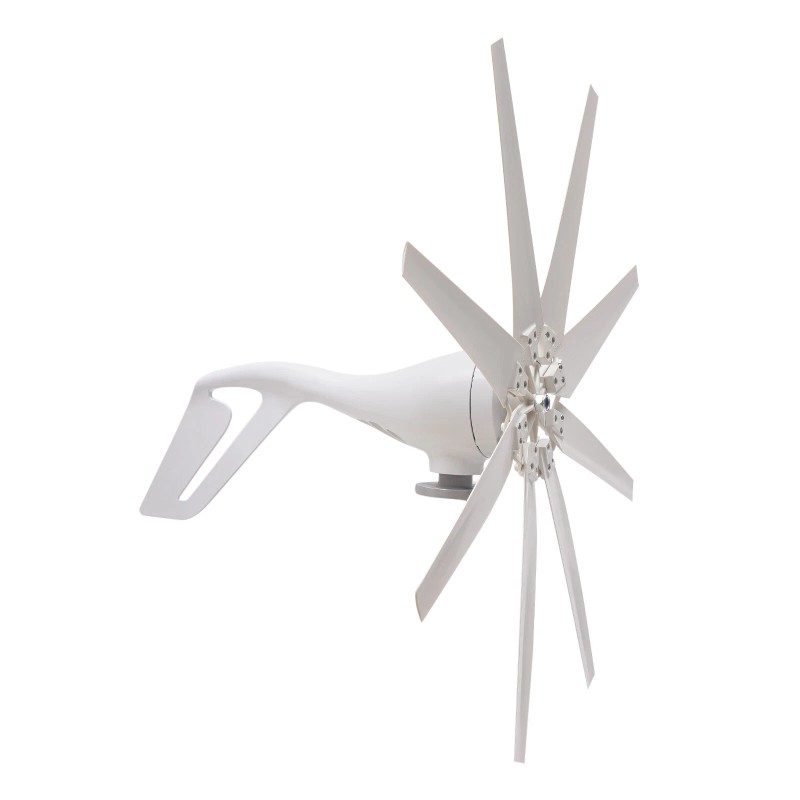

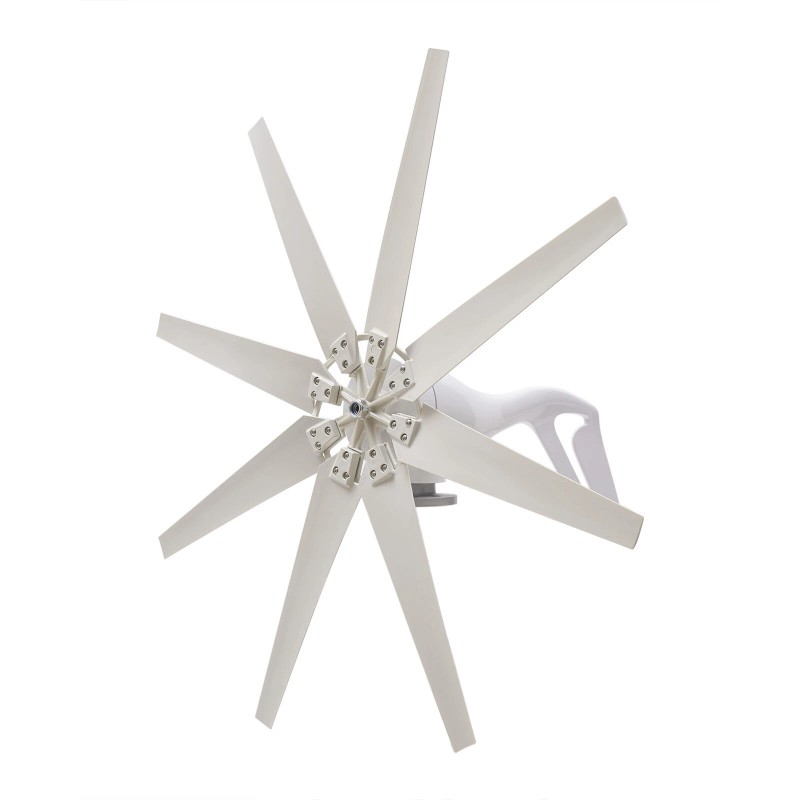

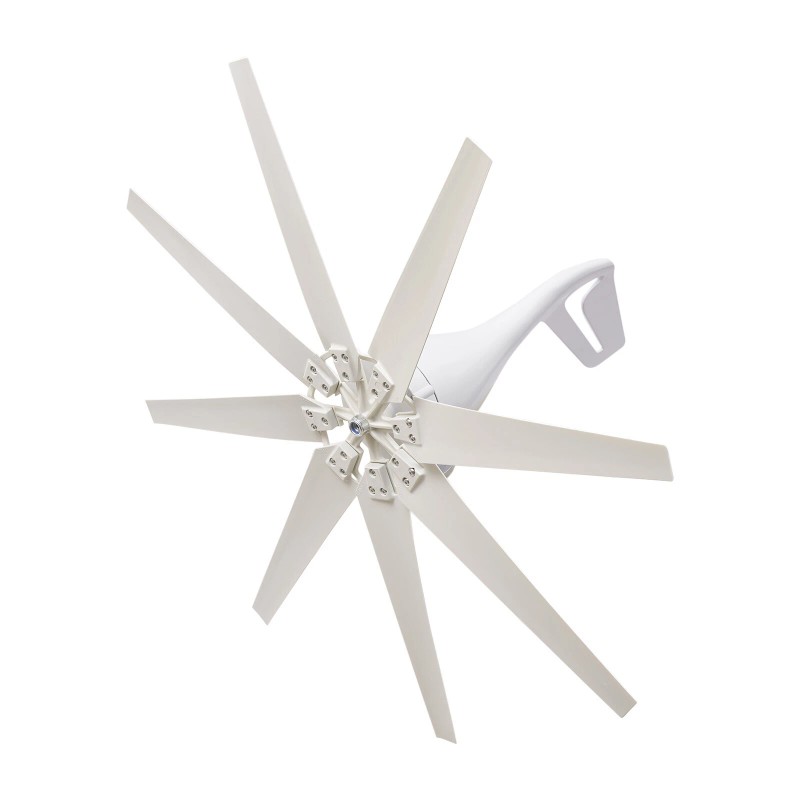

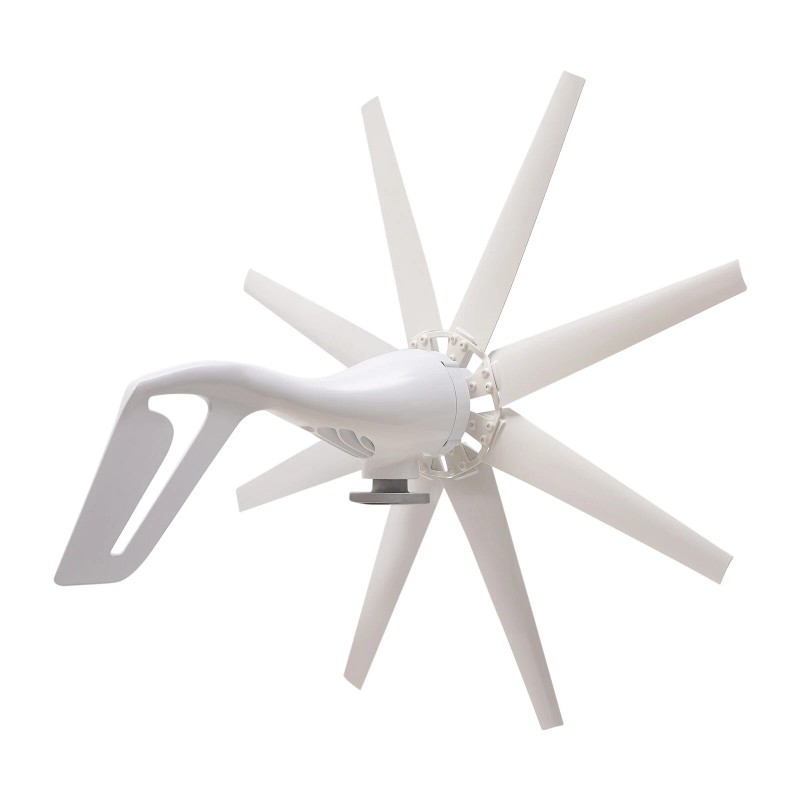

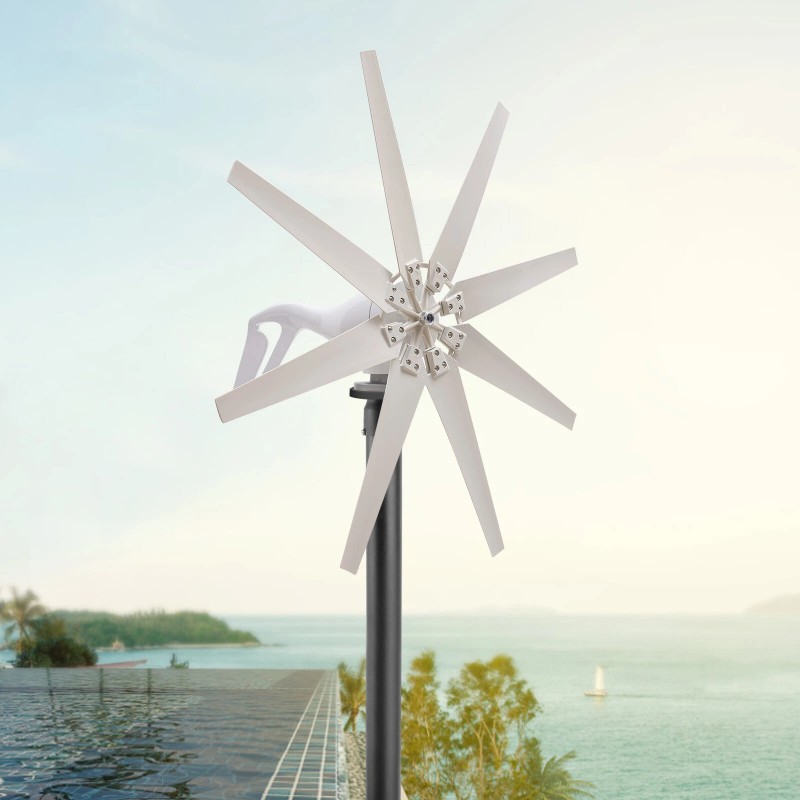

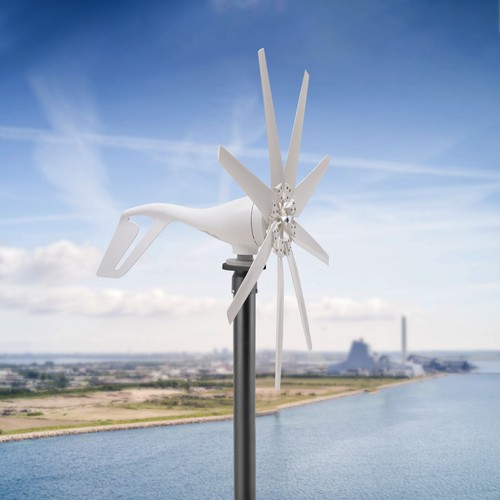

This 600W wind turbine generator kit includes a wind turbine, anemometer, controller, 8 blades, and other accessories, providing you with a powerful tool to help generate electricity through wind, which is environmental-friendly. It features high quality, high efficiency, and strong performance that contributes to the annual power generation. It's worth trying!

Key Features

Premium Material: The blades are made of Nylon fiber which is waterproof, corrosion-resistant, and lightweight, along with die-casting aluminum alloy fuselage and stainless steel fittings, making this product durable and strong. Moreover, the wire is heat-resistant and moisture-resistant, which is safe to use.

Environmental-friendly: Wind power generation does not require the use of fuel, nor does it produce radiation or air pollution.

High Efficiency: Controlled by MPPT intelligent microprocessor, it can effectively regulate the current and voltage(12V), and has a high utilization rate of wind energy, which contributes to the annual power generation. MPPT charge is waterproof and dustproof and can be applied to all environments and all seasons.

Stable Performance: The unique magnetic circuit design makes the starting torque very small, ensuring its breeze starting ability. Moreover, the 3-phase AC permanent magnet generator and 650W maximum power help this machine reach the maximum wind speed of 60m/s.

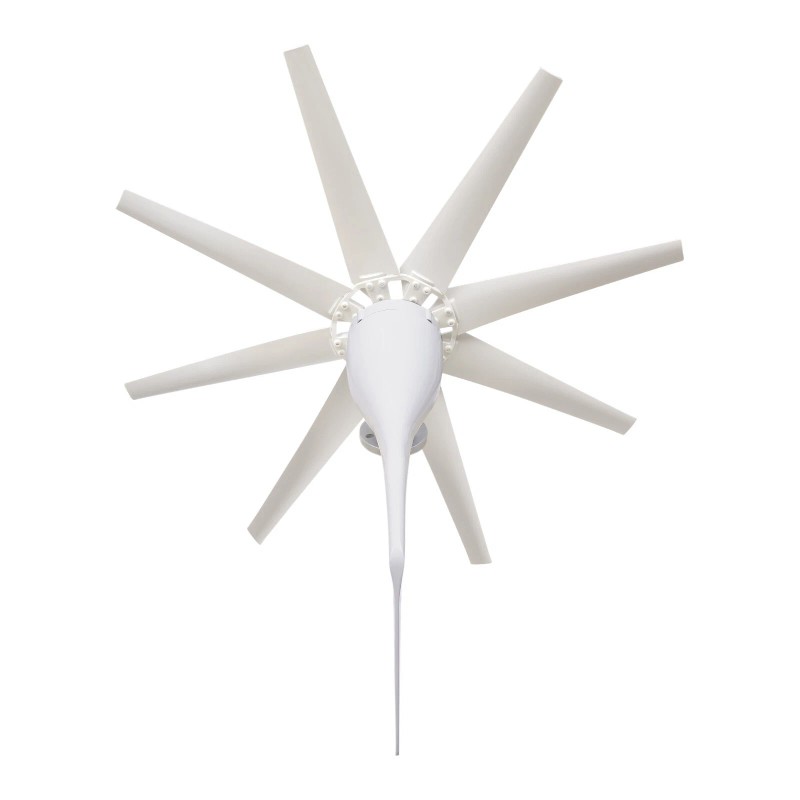

Considerate Design: The yaw adjustment system (rotating aluminum alloy fuselage and tail fin designed according to aerodynamic principle) can read the wind direction and automatically adjust the position to obtain the maximum wind energy.

Modern Appearance: The round fuselage, fan-shaped blades, smooth lines, and timeless white color make this product look elegant and modern, fitting any scene.

Low Vibration&Noise: The double-groove thickened ball bearing makes it more stable with low vibration. And the 40db low noise provides a more comfortable environment.

Easy to Assemble&Disassemble: With complete accessories and an English manual, you can assemble this wind turbine easily. And you can disassemble these blades for convenient storage when not in use.

Easy to Clean: Because of the smooth surface with plastic spraying, you can wipe the dirt from the machine and blades with a wet cloth.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect your products to the maximum extent possible.

Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

Details

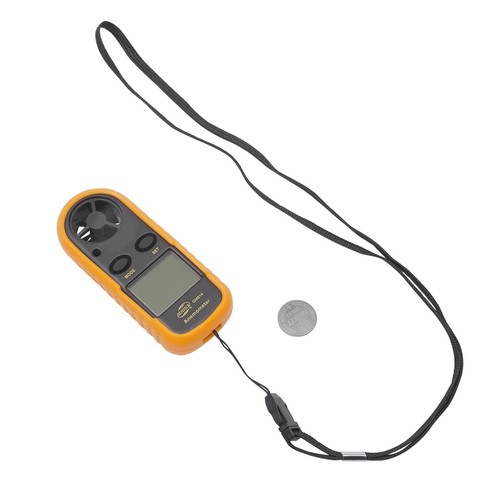

Anemometer: The equipped anemometer with MODE&SET buttons, a six-blade wind wheel, and a thermal probe allows for accurate wind speed measurement. And it's anti-slip rope ensures convenient carrying.

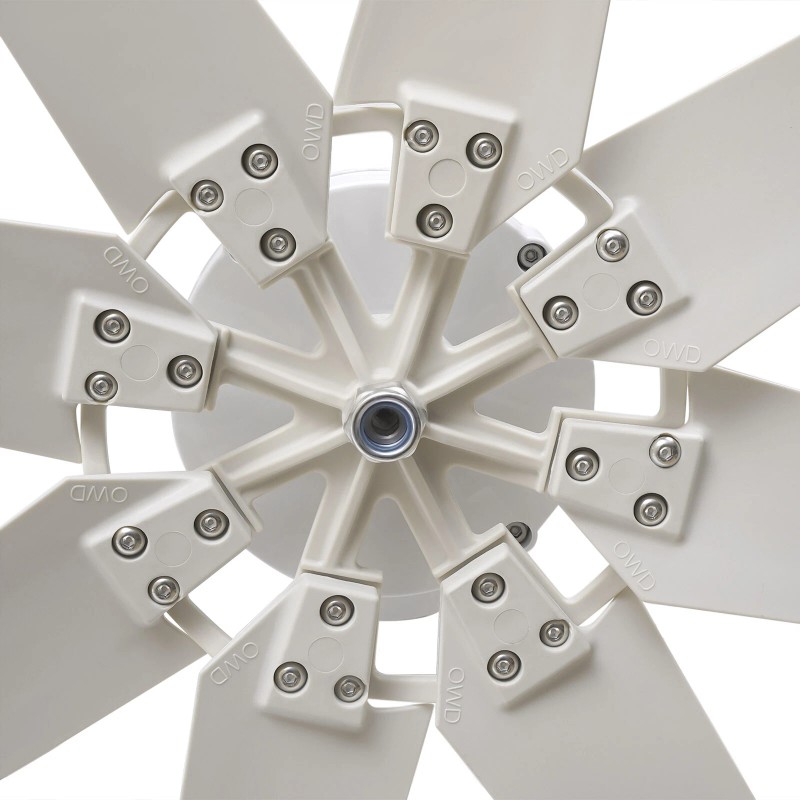

Built-in Copper Insert: The copper insert won't damage the nylon fiber material when the bolt is tightened.

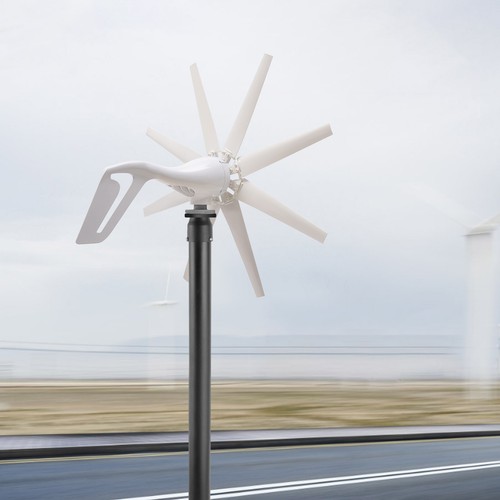

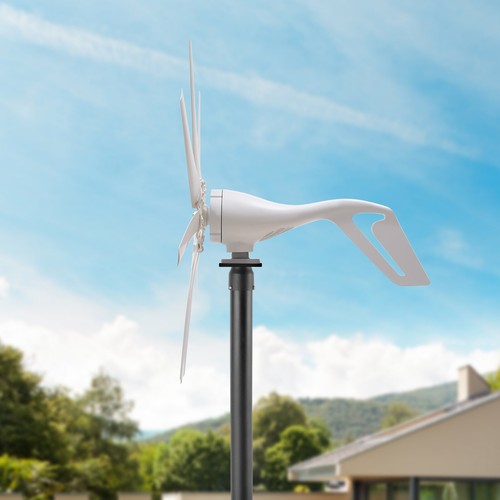

Flange Connection: The flange connection allows for a stable and firm connection between the wind turbine and the tower tube(excluded), making it safer to use.

Round Edge: The round edge of the blades and generator prevents your hands from scratching during installation.

Application

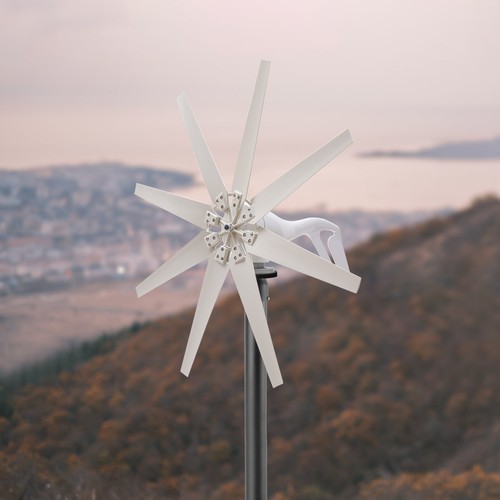

It is suitable for the leisure sector, boats, gazebos, homes,  RVs, cabins, and mobile homes, as well as for green windmills, corporate, and industrial energy supplements.

How to Install

• Take out the wind turbine, put it on the tower, and align it with the flange holes. Install four flat washers on the four bolts, and then insert the bolts into the corresponding holes of the flange. Tighten the screws with an Allen key.
• The three wires of the wind turbine are connected with the transmission cable, each pair of wires is not less than 30mm, and the adhesive tape at the connection end is 100mm.
• Connect the wind turbine cable to the controller. The battery must be connected to the controller before wiring.

Specifications

Color: White

Material: Nylon Fiber, Die-casting Aluminum Alloy, Neodymium Iron Boron

Process: Plastic Spraying, Die-casting

Shape: Fan-shape, Round

Style: Modern

Special Feature: Durable

Installation Method: Vertical Type

Wind Direction Adjustment: Automatically Adjust the Windward Angle

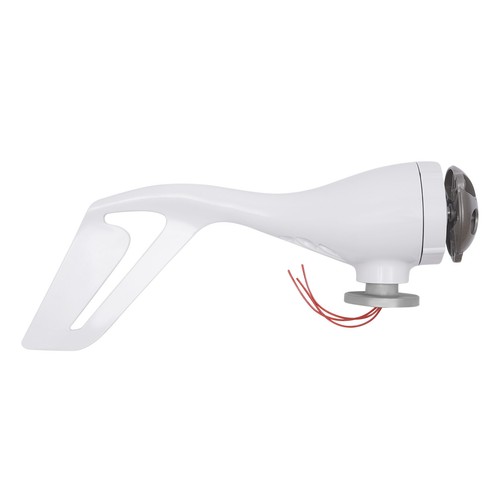

Generator Type: 3-Phase AC Permanent Magnet Generator

Braking Method: Electromagnetic

Anemometer Battery: One 3V Lithium Battery(Included)

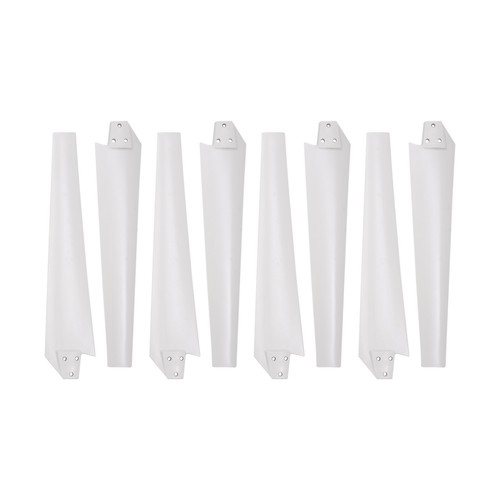

Number of Blades: 8

Voltage: 12V

Rated Power: 600W

Max. Power: 650W

Start-up Wind Speed: 3m/s

Rated Wind Speed: 13m/s

Safe Wind Speed: 50m/s

Max. Wind Speed: 60m/s

Working Temperature: -40 ~ 80 ℃/-40-176℉

Noise: 40db

Blade Length(Each): 40cm/15.7inch

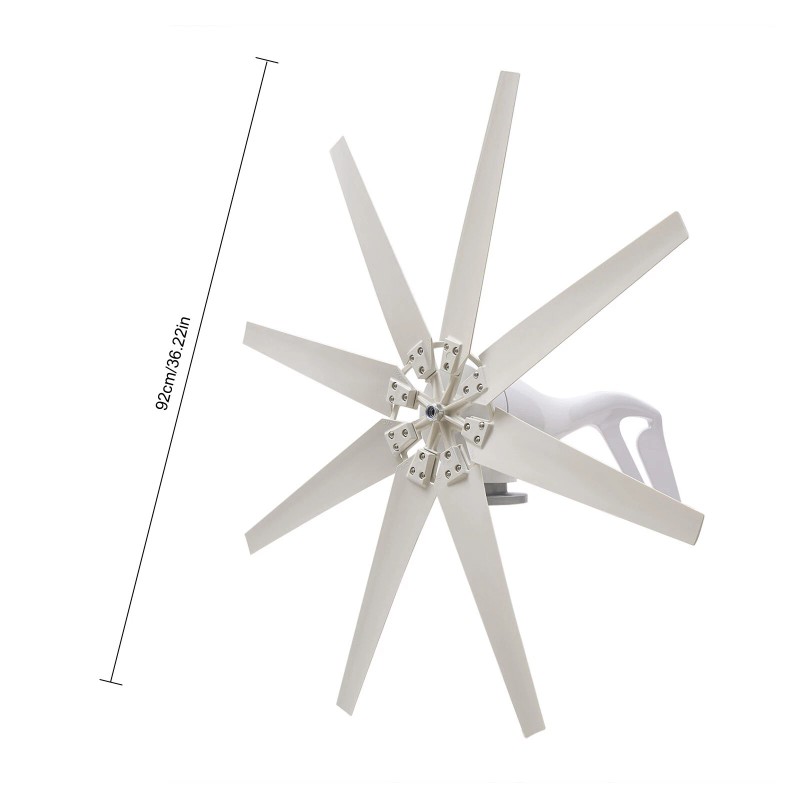

Blade Diameter(Wheel Included): 92cm/36.22inch

Tower Tube Diameter: 42-45mm/1.65-1.77inch(Not Included)

Package Size: 72*28*23cm/30.7*11.02*9.05inch

Gross Weight: 8.2kg/18.07lbs

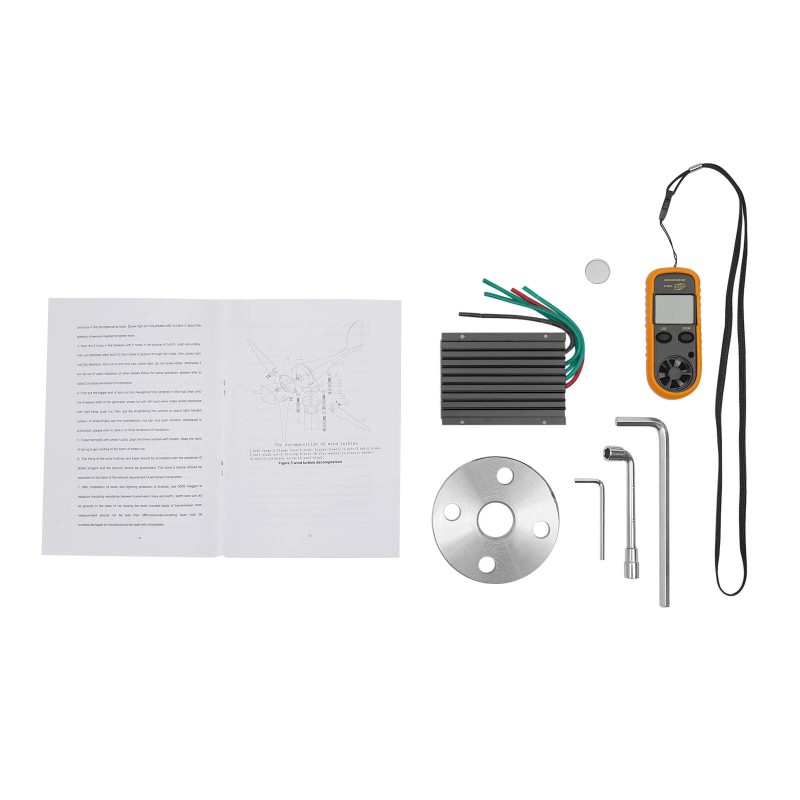

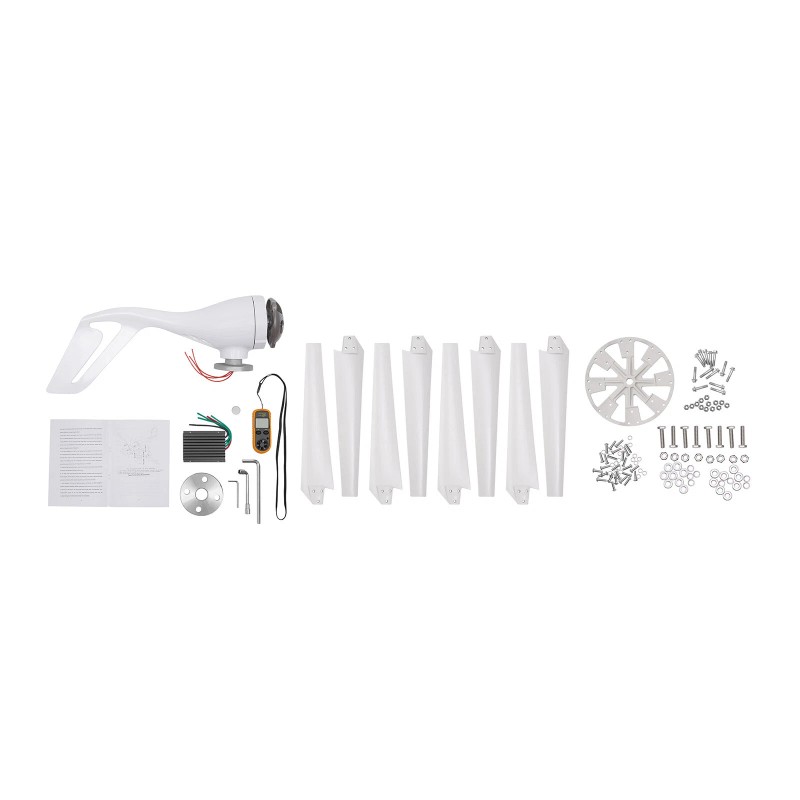

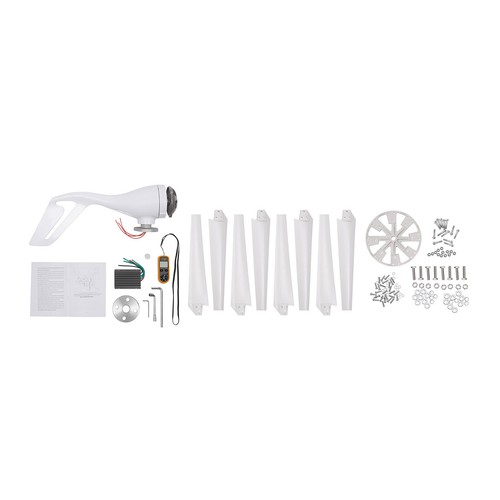

Package Included

1* Wind Turbine

8* Blades

1* Wind Wheel

1* Controller

1* Anemometer

1* Flange Plate

1* English Manual

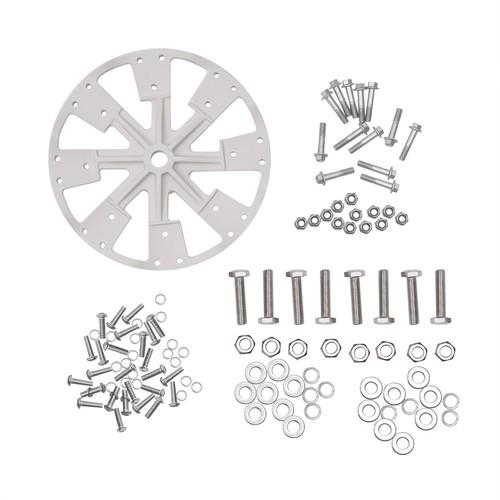

Other Accessories for Assembly.

Notes

• This package does not include a tower tube, and we recommend using a steel pipe or iron pipe of 1.65-1.77" in diameter.

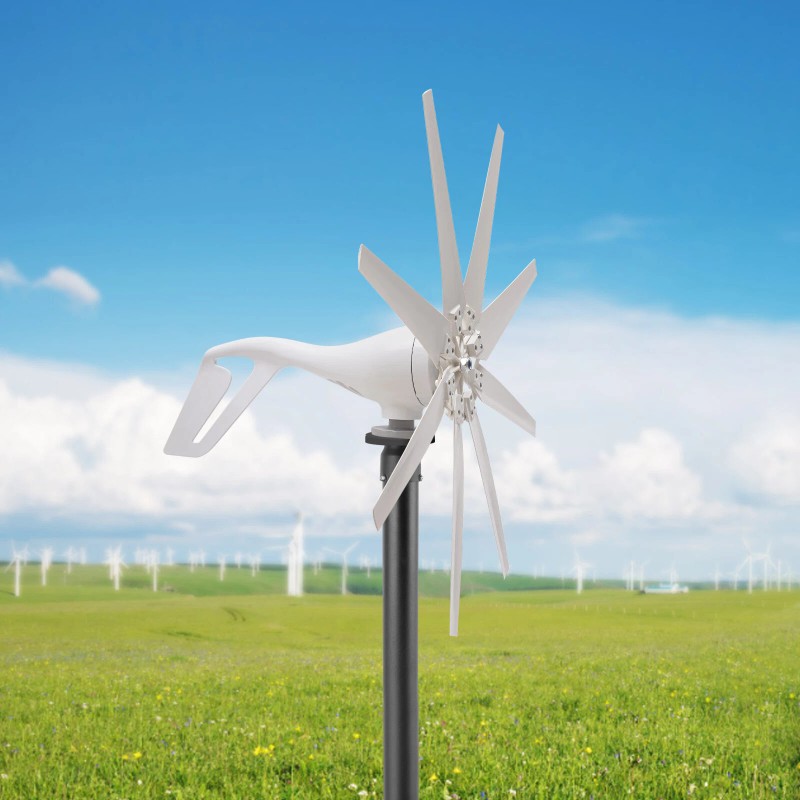

• The wind turbine should be installed where there is strong wind or without tall buildings and obstacles. If installing it near the obstacles, the position is better as far as possible from obstructions, or the installation height should be 20ft higher than the top of obstructions, which can make full use of the wind power. It should avoid the cliff and the turbulent region.
• The power of the wind turbine will increase with the wind speed. When the wind speed is very low, the wind wheel of the wind turbine will remain stationary. When the cut-in wind speed is reached (usually 3m/s), the wind wheel starts to rotate and the generator starts to generate electricity. As the wind becomes stronger, the output power will increase. When the wind speed reaches the rated wind speed, the wind turbine will output its rated power. After that, the output power will remain roughly unchanged. When the wind speed increases further and reaches the cut-out wind speed, the wind turbine will brake without power output to avoid damage.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
