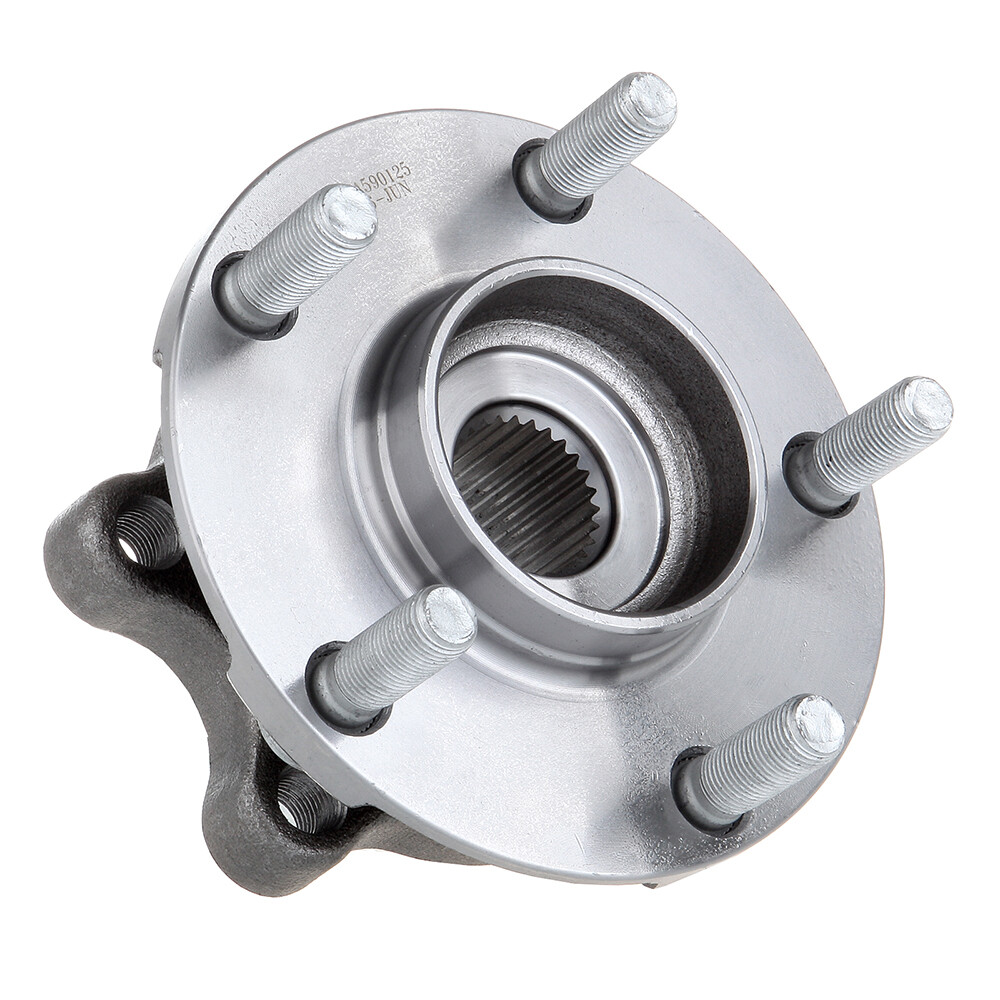

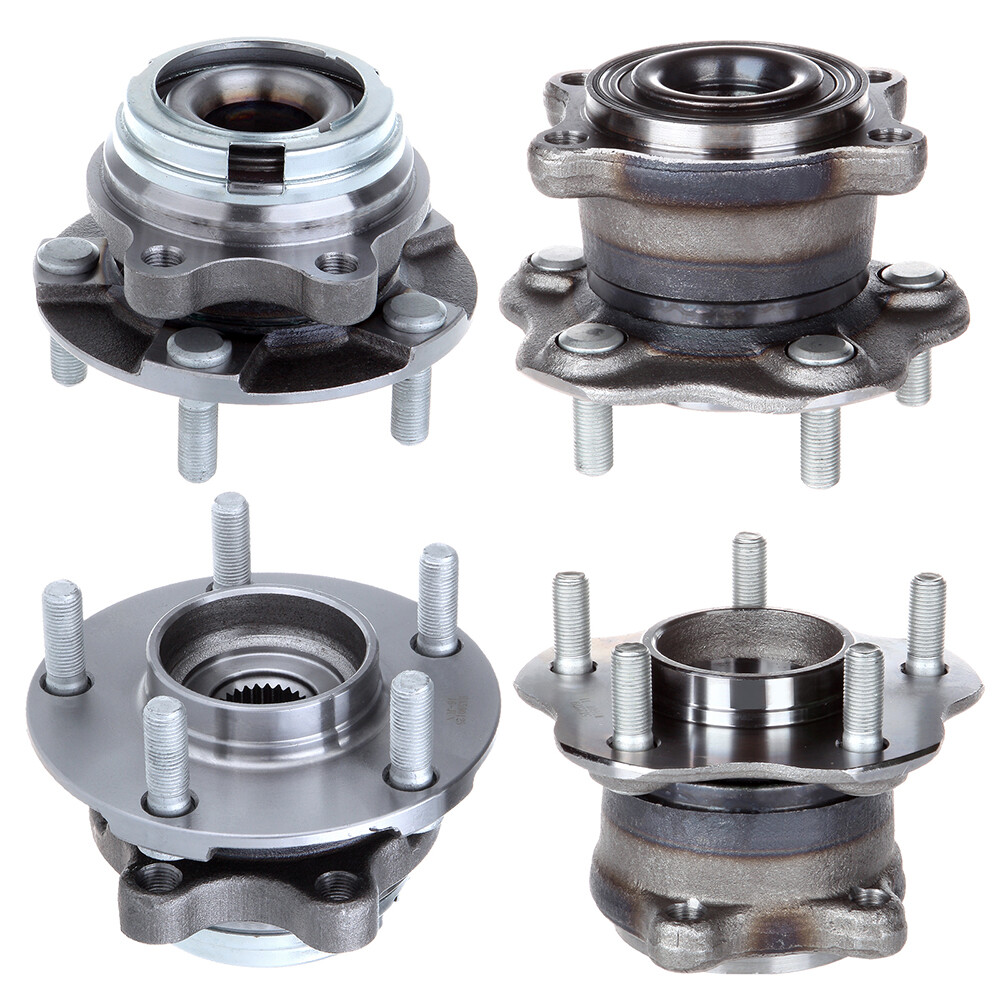

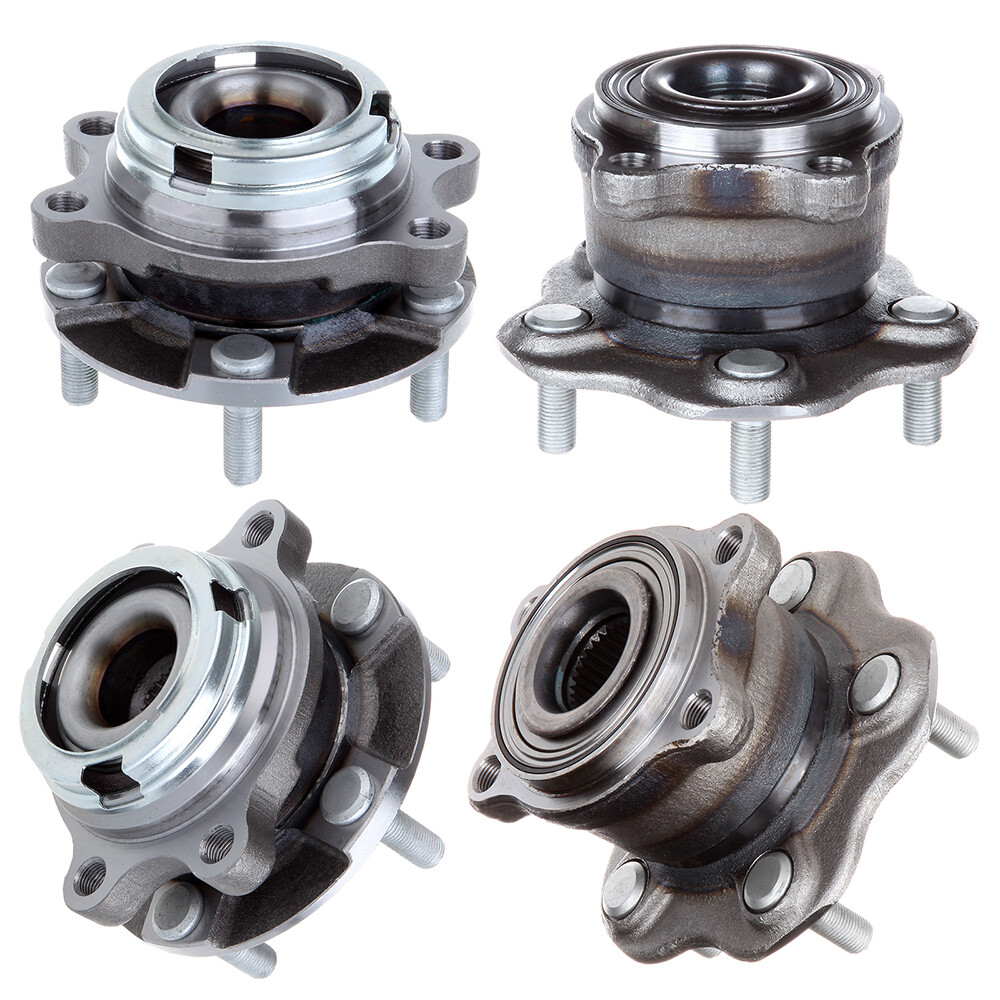

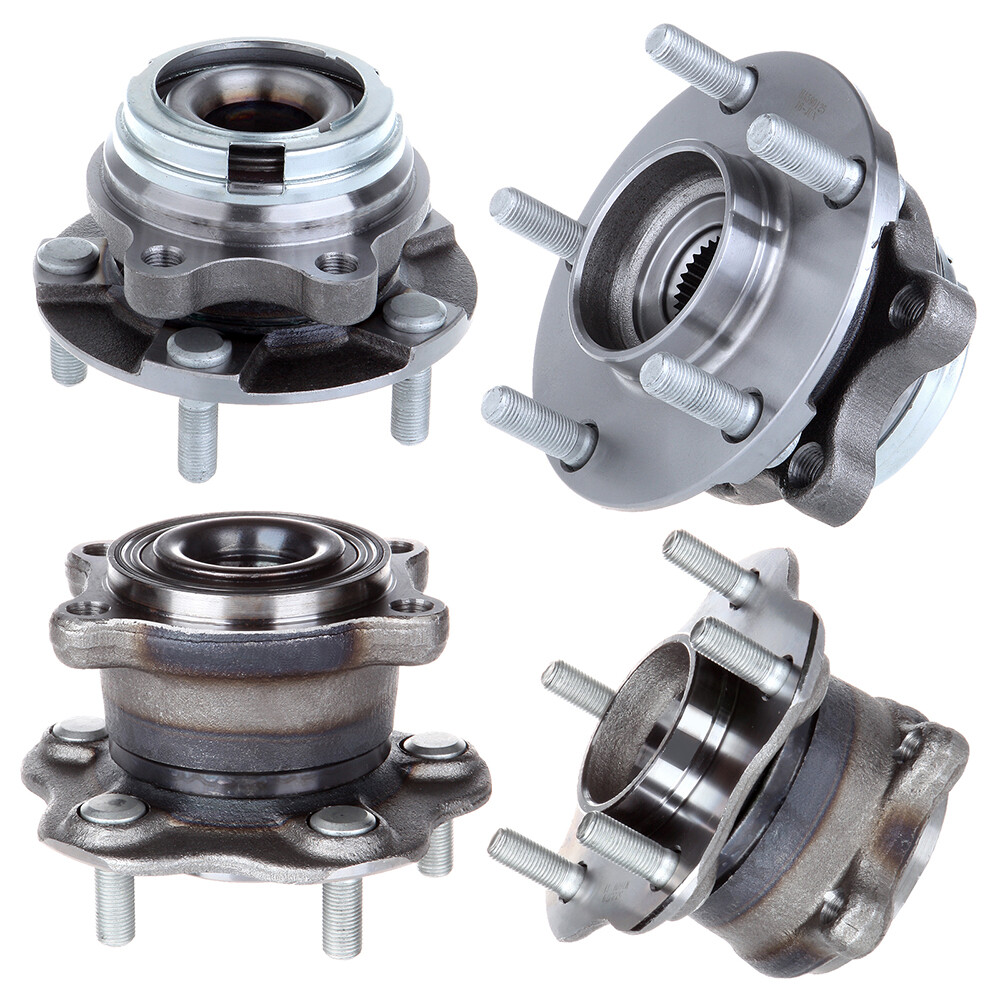

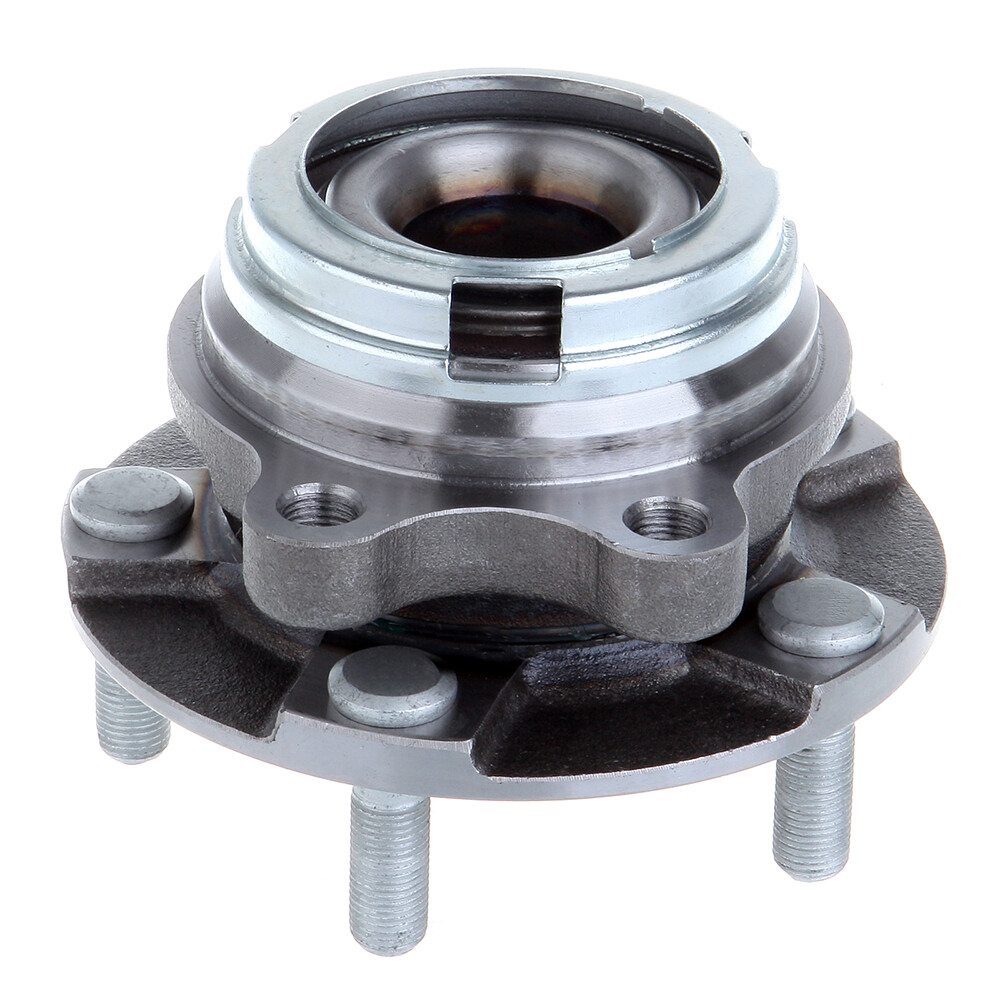

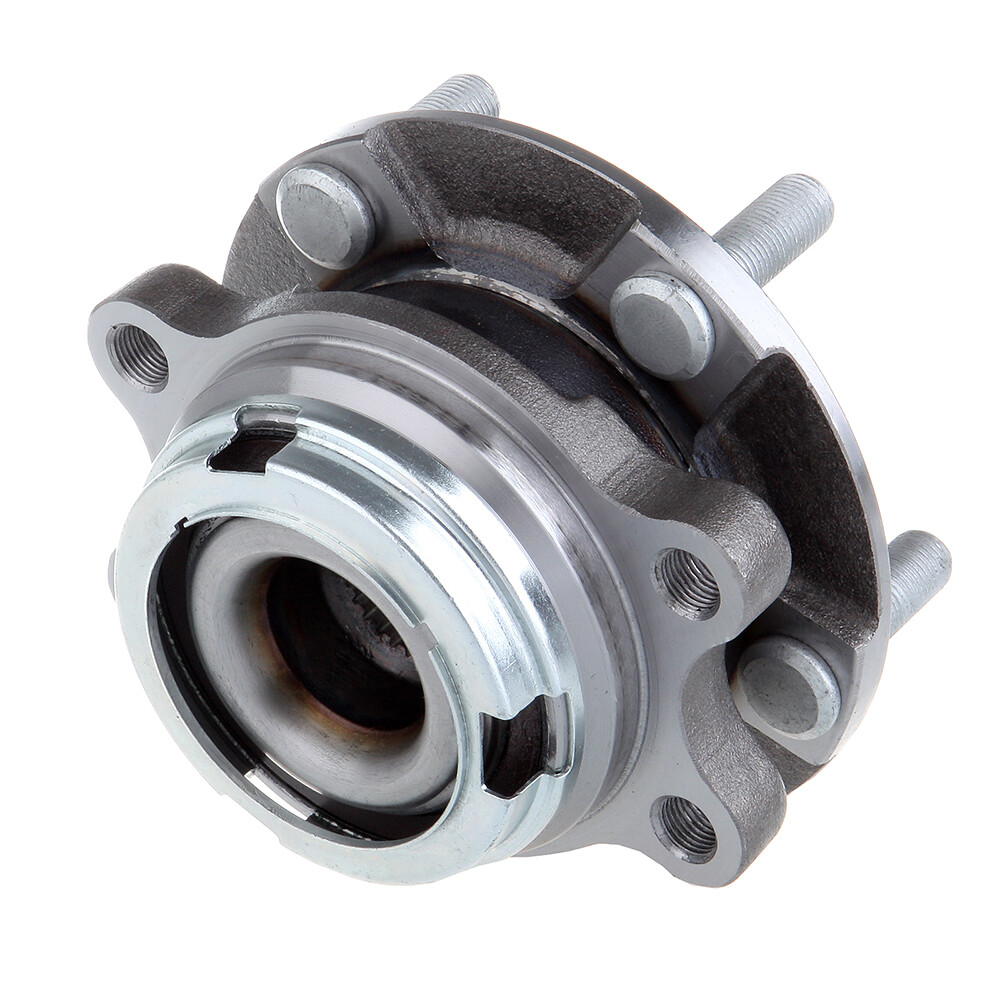

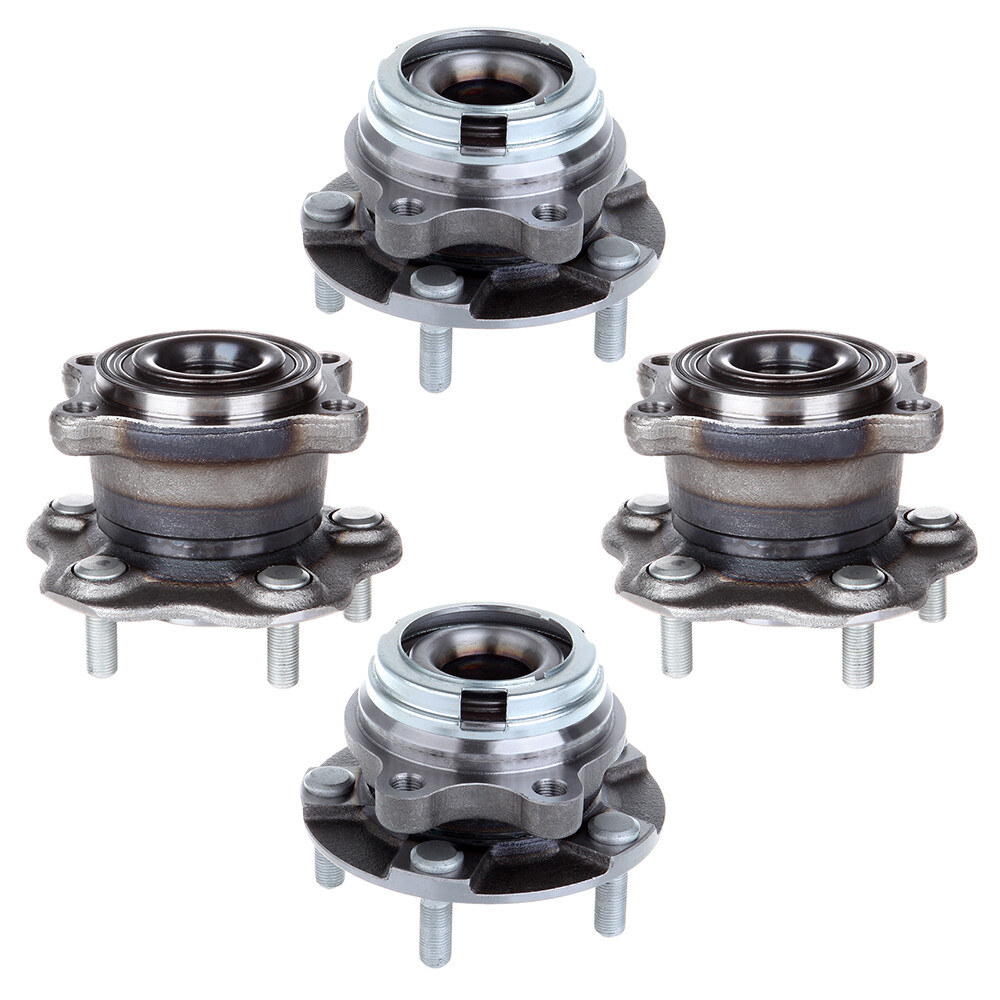

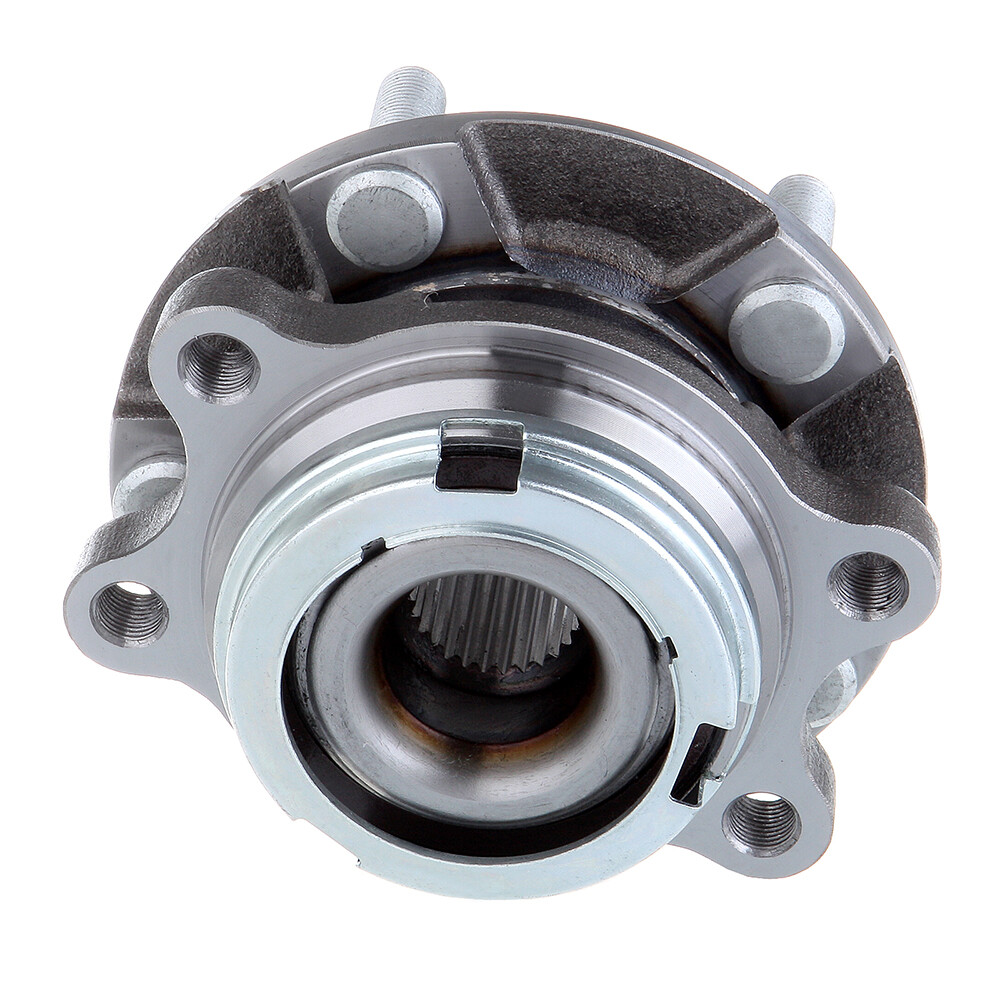

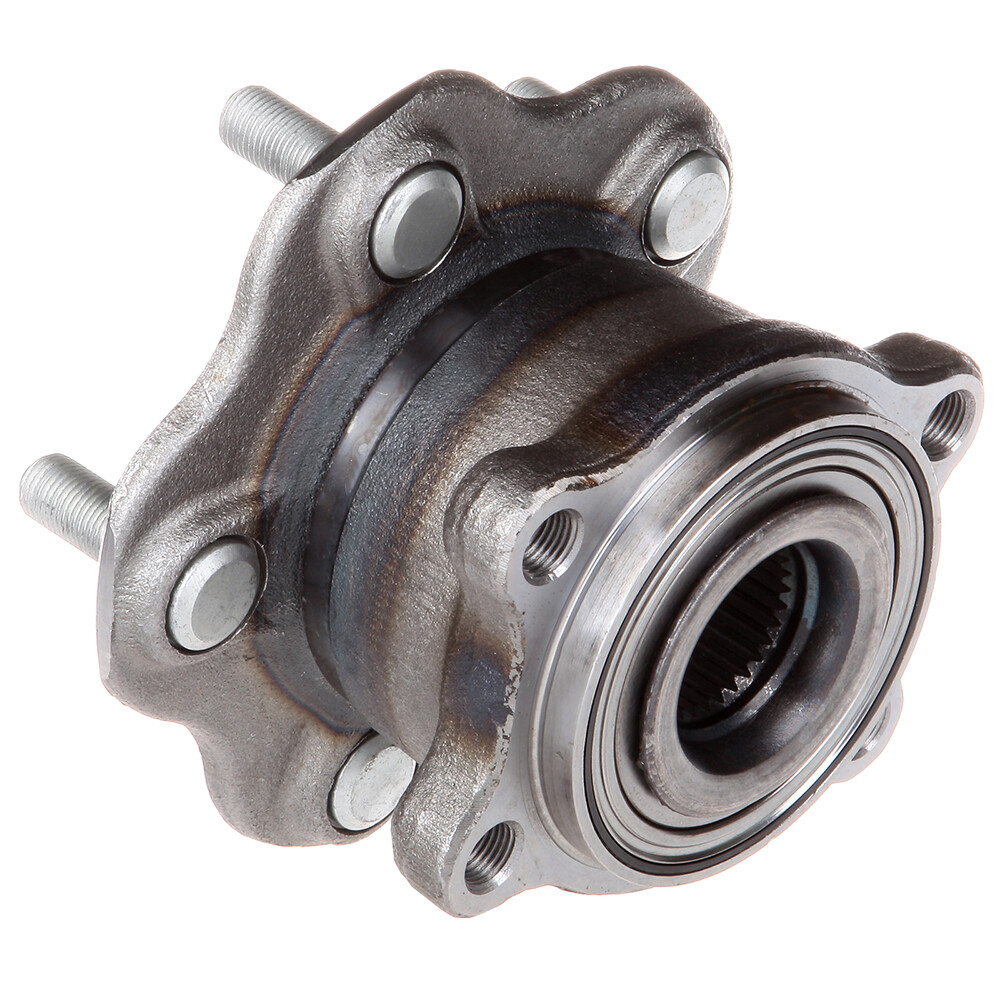

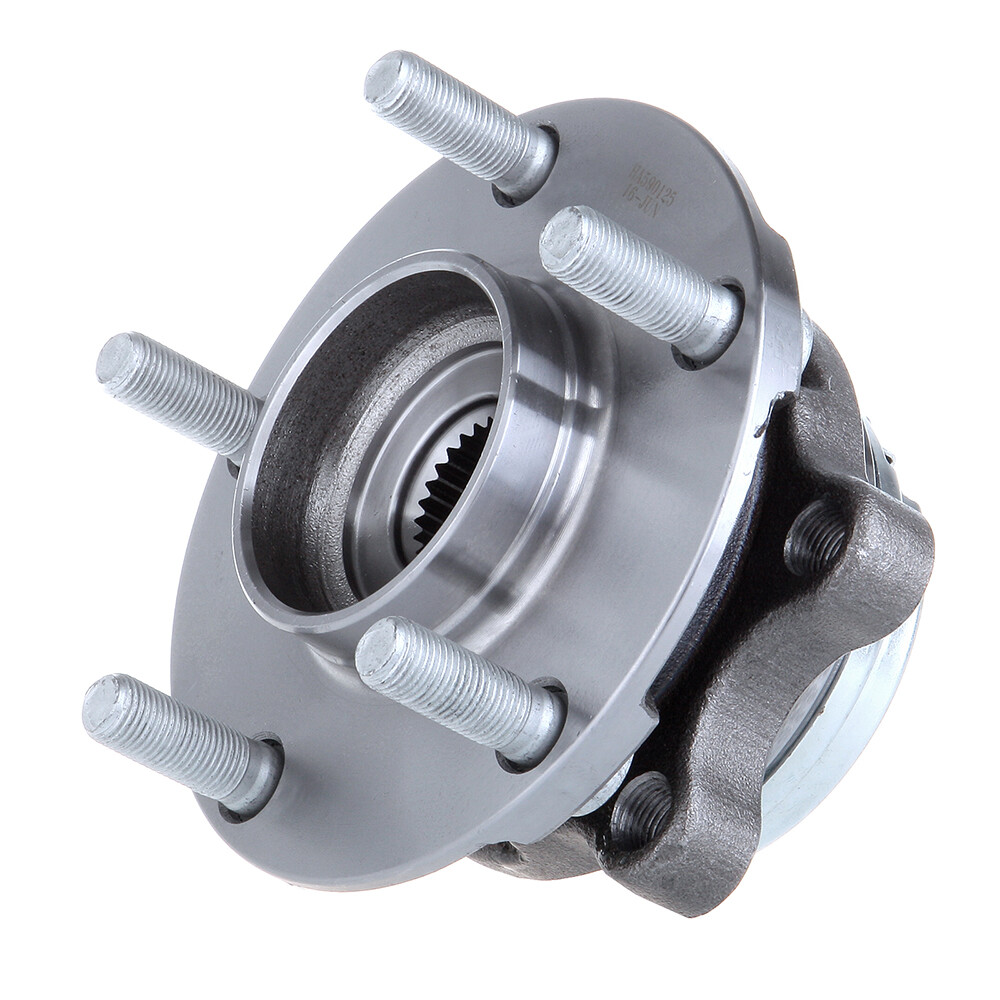

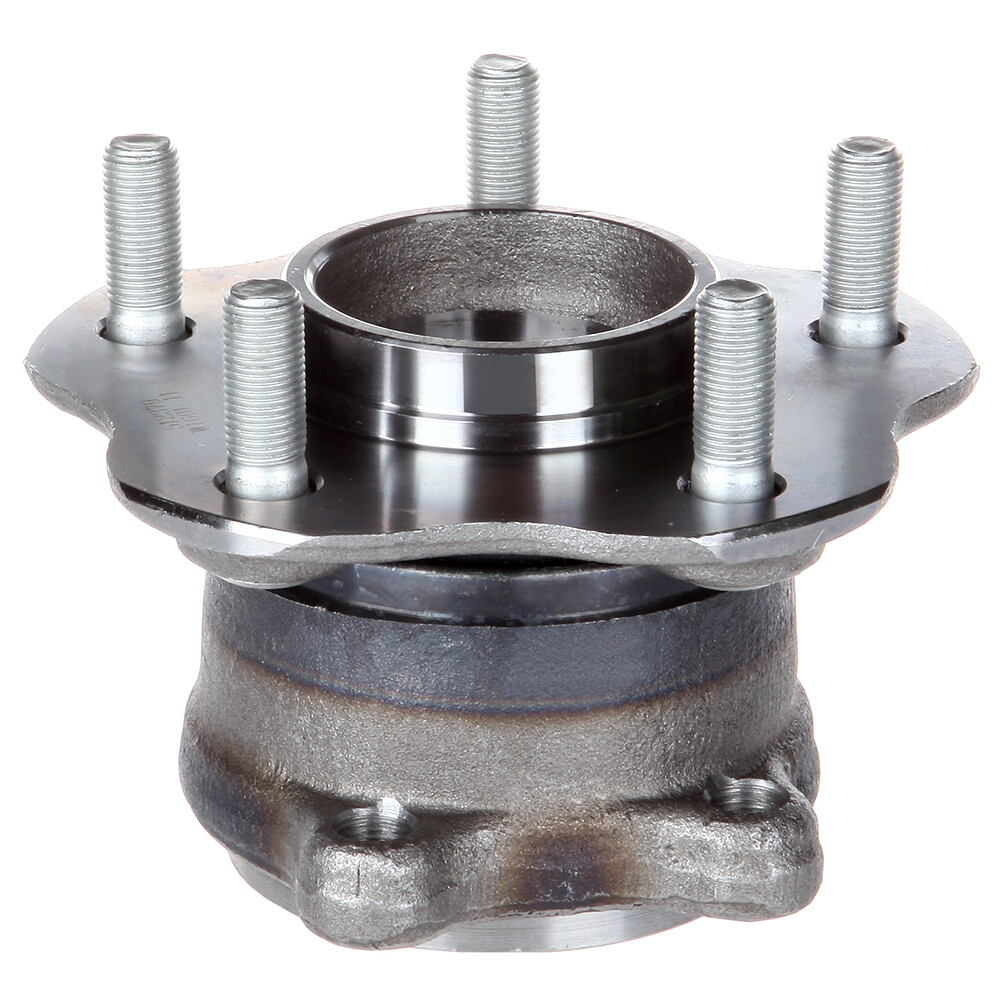

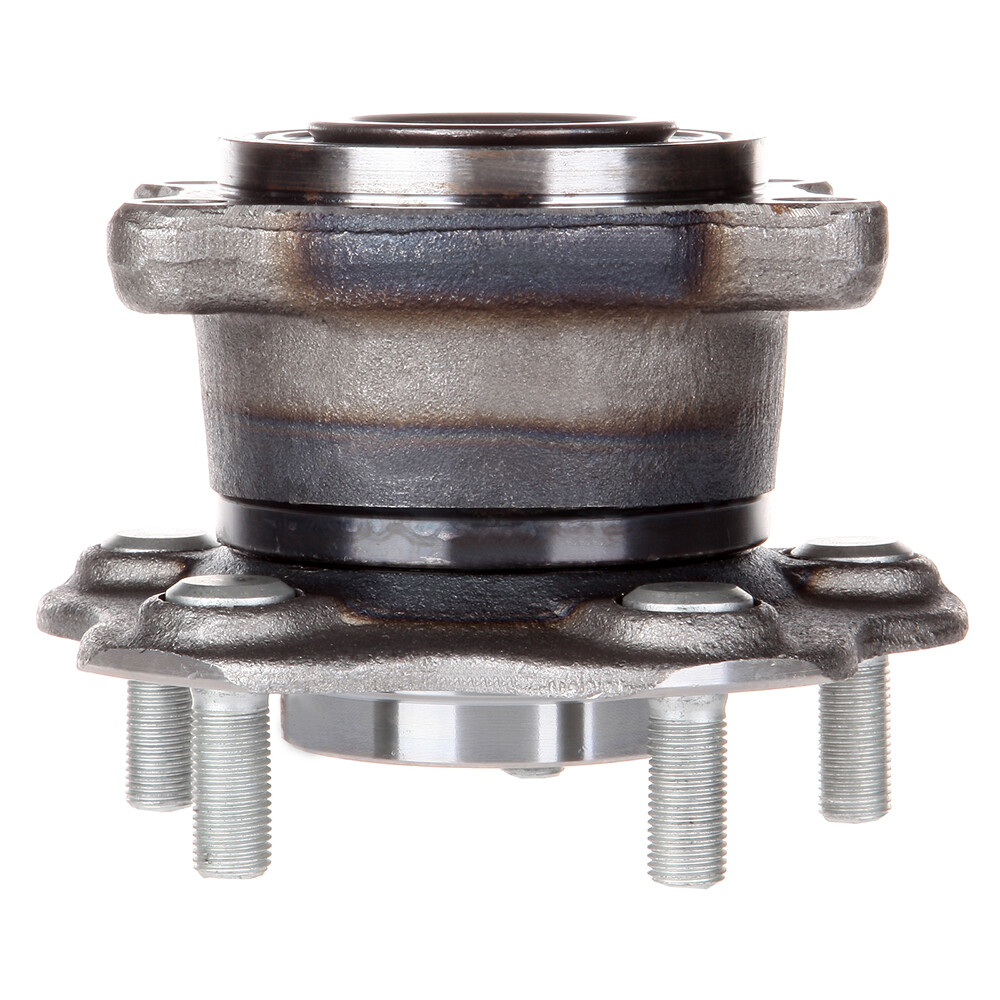

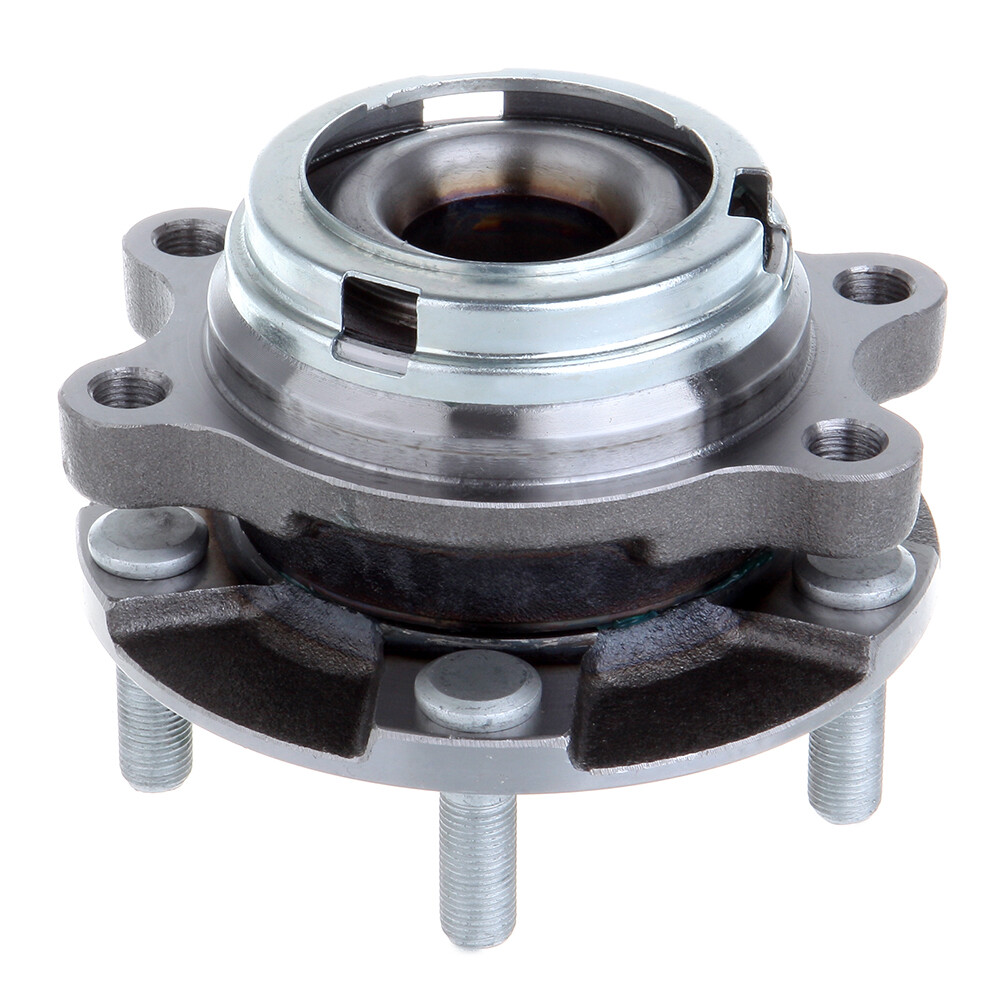

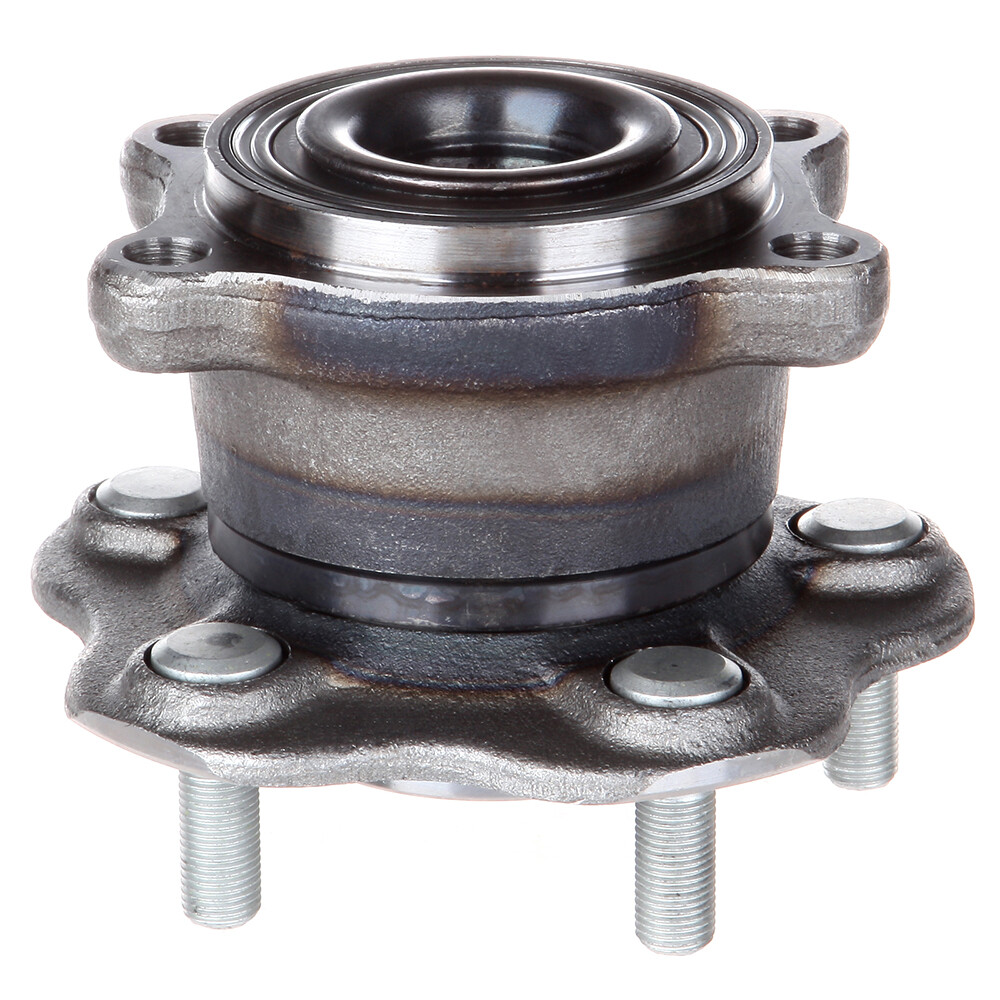

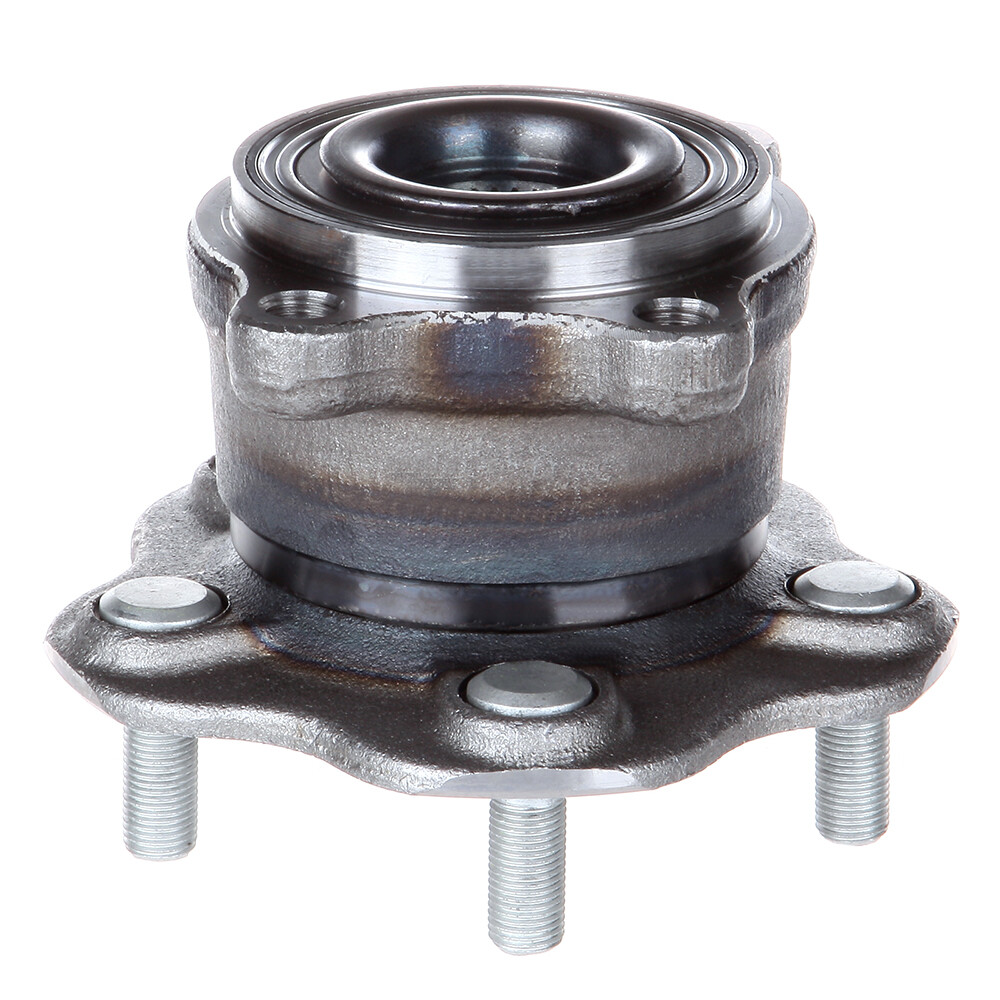

4PCS Wheel Hub Bearing Front Rear AWD For Infiniti G37 Q50 Q60 FX35 G35 QX50 M45
Features:
- 100% Brand New in Box
- Fits LH &RH(Driver Left Side & Passenger Right Side) Front & Rear
- Fits 5 Lugs Wheels
- Wheel Studs Already Installed
- ABS Type:Encoder (Front); Non-ABS (Rear)
- Drive Type: AWD
- Brand New Wheel Hub Assembly
- Direct Replacement
- Built To Strict Quality Control Standards
- Replaces Dealer Part Numbers: 512379, WE60531, 1411-258523, 400.42006, 750-0028, AX12379, BR930730, HA590255, SK512379, 051-6354, H512379, 393379, BHA54368, 43202-CG200, 43202-WL010, 295-41002, 40202CG110, 295-90125, WE61813, MB30312, BR930892, 750-0002, 513335, 394335, 1411-83760, WA590125, 19360603, HA590125, 40202EJ70B, 40202EG36C, 40202EG06C, 40202CG11A, 40202EG300
Fitments:
- Fits Infiniti EX35 2008-2012 AWD Only
- Fits Infiniti EX37 2013 AWD Only
- Fits Infiniti FX35 2009-2012 AWD Only
- Fits Infiniti FX37 2013 Built Before 12/12 Production Date | AWD Only
- Fits Infiniti FX50 2009-2013 Built Before 12/12 Production Date | AWD Only
- Fits Infiniti G25 2011-2012 AWD Only
- Fits Infiniti G35 2007-2008 Sedan Only | AWD Only
- Fits Infiniti G37 2009-2013 AWD Only
- Fits Infiniti M35 2008-2010 AWD Only
- Fits Infiniti M37 2011-2013 AWD Only
- Fits Infiniti M45 2008-2010 AWD Only
- Fits Infiniti M56 2011-2013 AWD Only
- Fits Infiniti Q40 2015 AWD Only
- Fits Infiniti Q50 2014-2017 AWD Only
- Fits Infiniti Q50 2018-2020 2.0L, 3.0L | AWD Only
- Fits Infiniti Q60 2017-2018 AWD Only
- Fits Infiniti Q70 2014-2019 AWD Only
- Fits Infiniti QX50 2014-2017 AWD Only
- Fits Infiniti QX70 2014-2017 AWD Only
Please Notes:
-
These Wheel Hub Bearings Will Only Work Properly On Vehicles With These Exact Options.
-
If Your Vehicle Does Not Have The Options Listed, This Mirror May Not Function Properly.
Item Include:
-

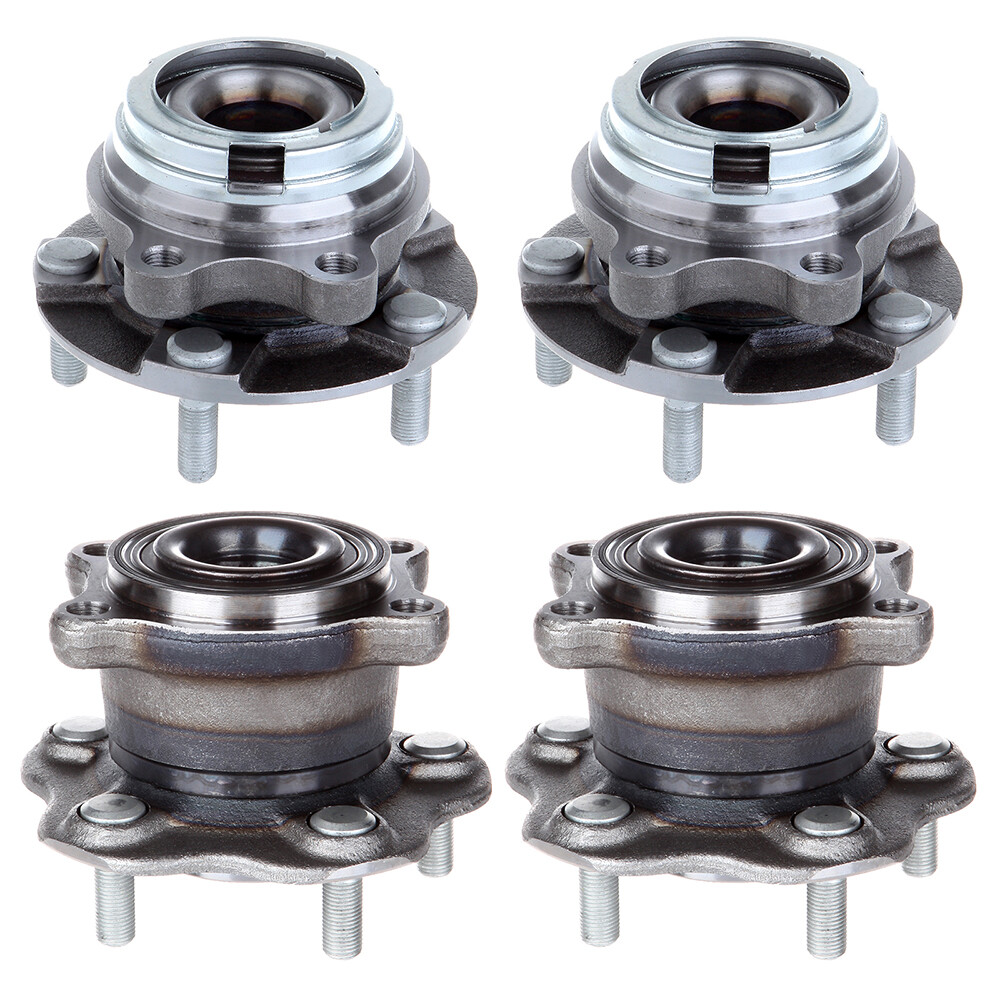

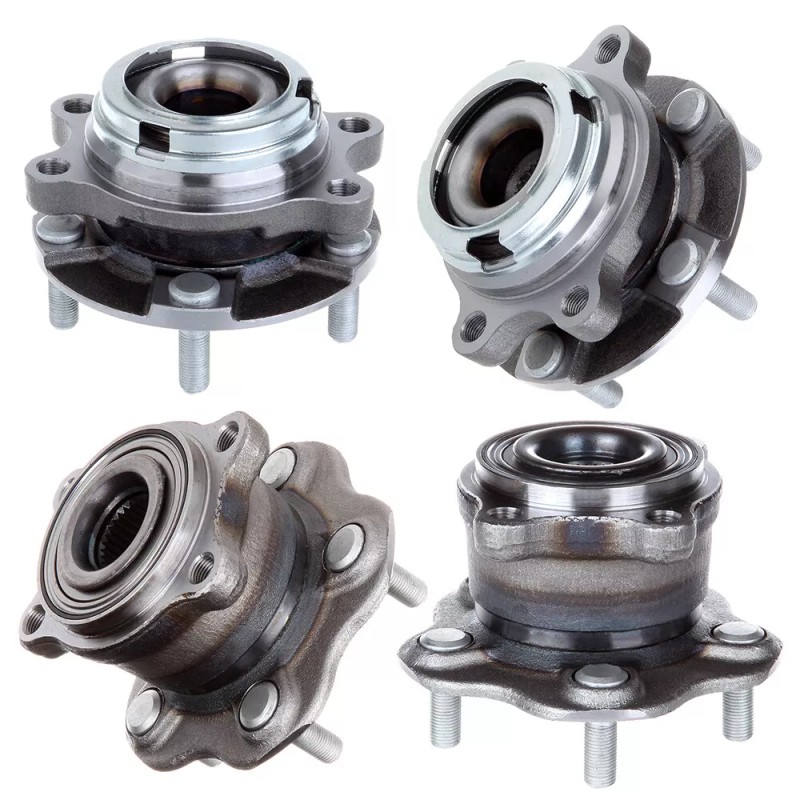

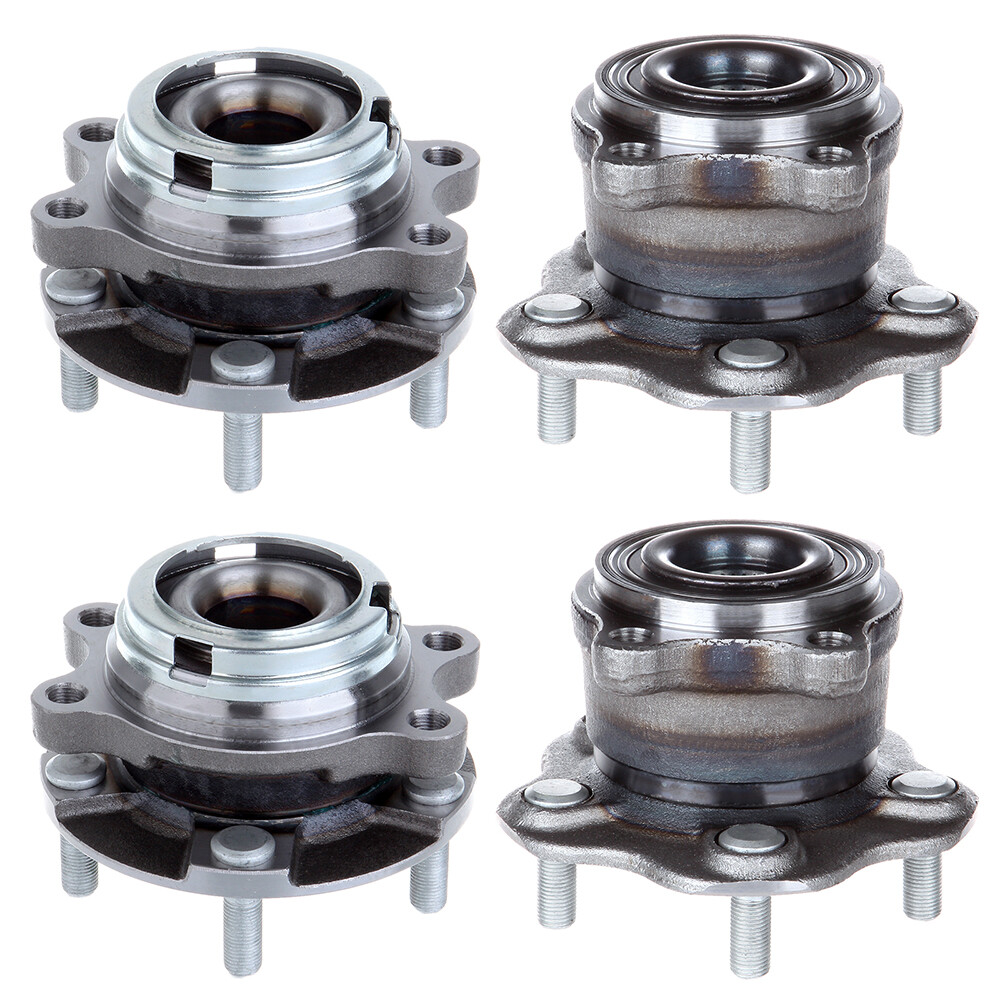

4PCS Wheel Hub Bearingss LH &RH(Driver Left Side & Passenger Right Side) Front & Rear
-
Cotter Pin
- Nut Retainer
- Wheel Hub Lock Nut
- Hub Bolt
- Splash Guard
- Steering Knuckle
Removal:
- Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
- Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
- Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
- Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
- Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
- Remove the engine side cover.
- Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
- Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
- Remove the wheel hub and bearing bolts using power tool.
- Remove the splash guard and the wheel hub and bearing from the steering knuckle.
NOTE: -
Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
- Pull out the front wheel sensor, being careful to turn it as little as possible.
- Do not pull on wheel sensorharness.
Inspection after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing torque.
Installation:
- Installation is in the reverse order of the removal
Caution:
- Do not reuse the wheel stud.
- Do not reuse the cotter pin.
- Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
- Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
- Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut
- Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.
- Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.
- When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.
- Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.
| Item Specifics | |
|---|---|
| Brand | top-refitting |
| Type | Wheel Hub & Bearing Assembly |
| Items Included | As Picture Shown |
| Manufacturer Warranty | 1 Year |
| Finish | Polished,Rust Protected |
| Performance Part | No |
| Universal Fitment | No |
| Vintage Car Part | No |
| Material | Steel |
| Wheel Stud Quantity | 5 |
| Placement on Vehicle | Front Rear |
| Manufacturer Part Number | 11706348 |
| Flange Diameter | 5.35 in. / 136 mm (Front); 5.83 in. / 148 mm (Rear) |
| ABS Sensor | Encoder (Front); Non-ABS (Rear) |
| Flange Offset | 1.6 in. / 40.7 mm (Front); 2.72 in. / 69 mm (Rear) |
| Fitment type | Direct Replacement |
| Anti-lock Braking System | Yes |
| Bolt Circle Diameter | 4.5 in. / 114.3 mm |
| Brake Pilot Diameter | 2.68 in. / 68 mm |
| Wheel Pilot Diameter | 2.6 in. / 66 mm |
| Fitment 1 | For Infiniti EX35 EX37 FX35 FX37 FX50 G25 G35 G37 M35 M37 M45 M56 |
| Fitment 2 | For Infiniti Q40 Q50 Q60 Q70 QX50 QX70 |
| Item Quantity | 4 |
| Hub Pilot Diameter | 3.66 in. / 93 mm (Front); 3.31 in. / 84 mm (Rear) |
| Bolt Pattern | 5 x 4.5 in (5 x 114.3 mm) |
| OE/OEM Part Number | 513335, 512379 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12x1.25 |
| Interchange Part Number | WE61813, WE60531, HA590125, HA590255, BR930730, BR930892 |
| Flange Shape | Rectangular |
| Drive Type | AWD |
| Knuckle Bolt Circle Diameter | 4.72 in. / 120 mm (Front); 4.21 in. / 107 mm (Rear) |
| Superseded Part Number | 40202EJ70B, 40202EG36C, 40202CG110, 43202-CG200, 43202-WL010 |
