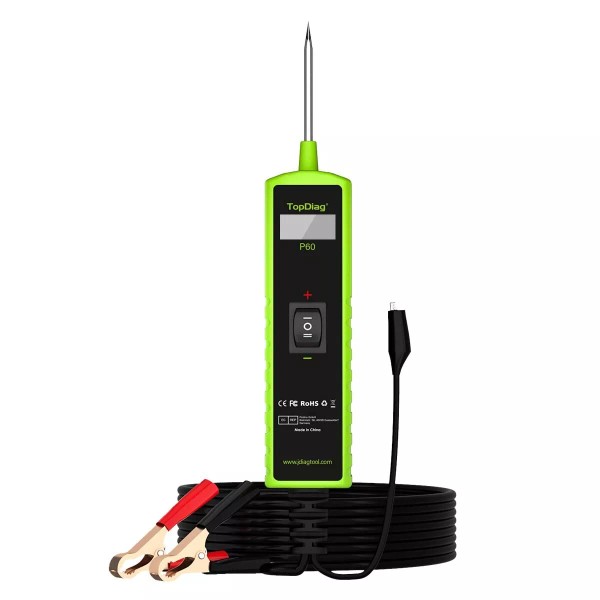

TopDiag P60 Probe Tester, Automotive Circuit Test with AC/DC Voltage Tester LCD
TopDiag P60 Probe Tester, Automotive Circuit Test with AC/DC Voltage Tester LCD
Features:

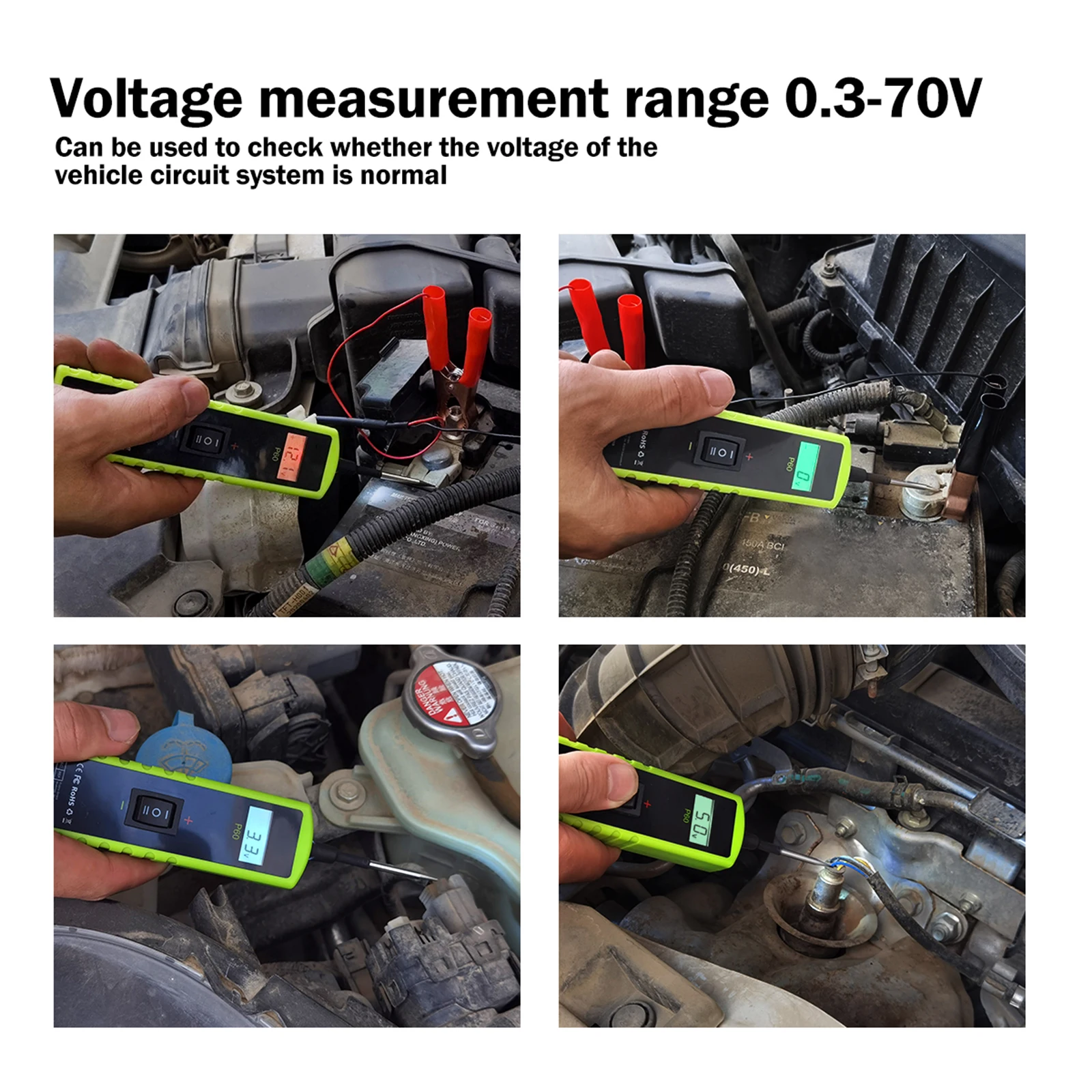

1.Voltage and positive and negative detection: When the device is connected to the car's power supply, the display lights up white and the screen will show 0v. When the probe is touched to the positive circuit, the screen will show the current circuit voltage. (If the device power supply and the circuit being tested are separate, then the ground lead of the device needs to be connected to the negative terminal of the circuit being tested). If the probe touches the negative circuit, the display will light up green, the screen will show 0v, and the device will sound a beep.
2. Diode detection: Connect the ground lead to the negative terminal of the diode and the probe to the positive terminal of the secondary tube, when the icon appears on the display and a voltage value is shown, the diode is good, if the display does not respond or the screen shows green and the device beeps, the diode is bad.

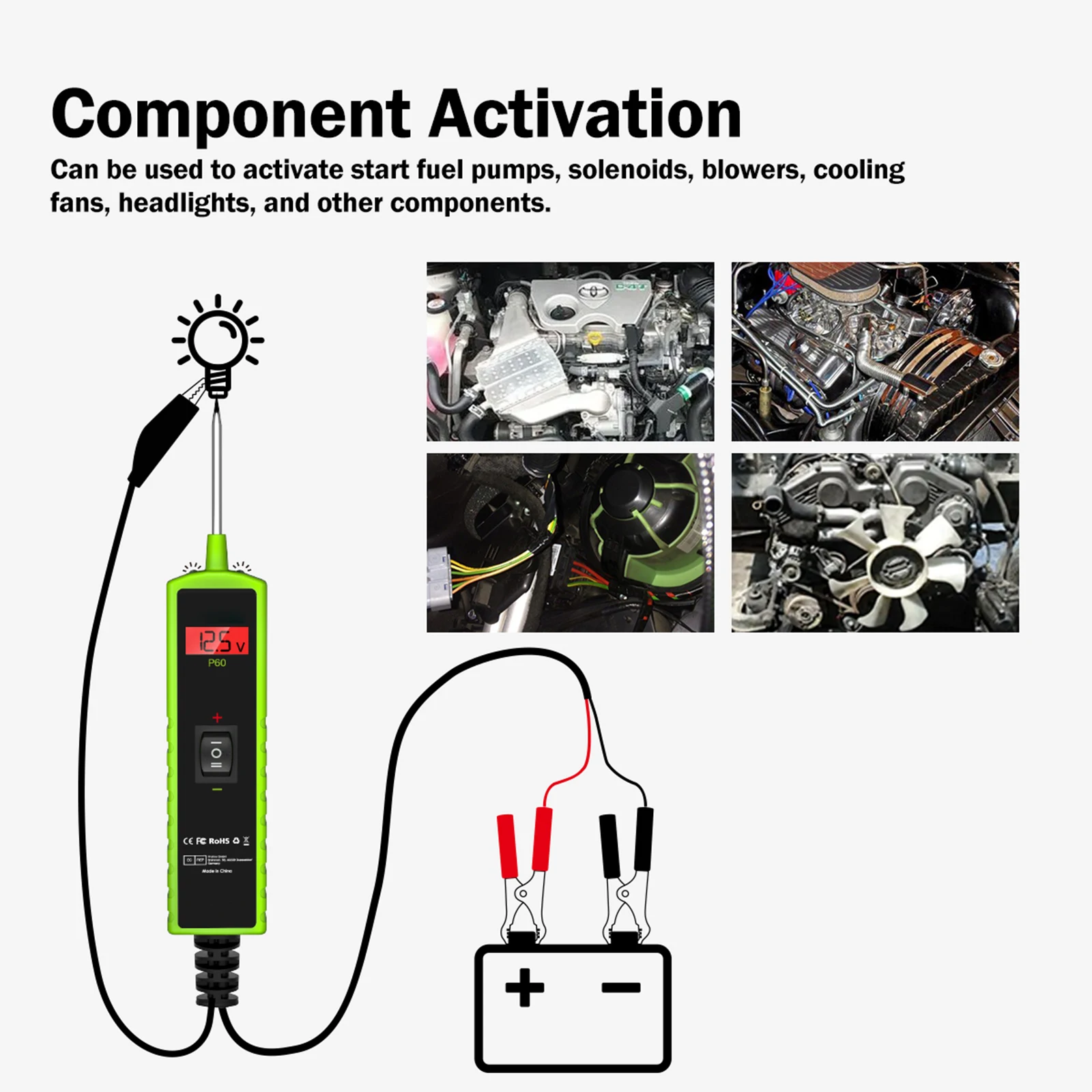

3.Component activation: The activation function can be used to activate components such as the starter fuel pump, solenoid, blower, cooling fan, headlights, etc. Connect the grounding auxiliary clip to the negative terminal of the part, the probe contact to the positive terminal of the part, then press the positive activation button (-), the probe will output a positive voltage, the screen will light up red and display the current activation voltage, and the part will be activated at the same time. Probe can output positive and negative voltage, press the (-) button probe output positive voltage, press the (=) button probe will output negative voltage, activation output maximum current is 8A, more than 16A equipment will start trip protection function.
4.Continuity testing: By using the probe tip and an auxiliary ground wire, continuity testing can be performed on wires and components that are disconnected from the vehicle's electrical system. When the continuity test is passed the display lights up green and the unit beeps. (Note: Do not press the activation switch during the continuity test.)
5.Grounding detection: Use the probe to make contact with the negative terminal of the component. When the ground test is passed, the display will light up green and the device tone will sound. (Note: Do not press the activation switch
Brand: | TopDiag |
---|---|
Isin: | IH57XKHNULDW |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

Features:
1.Voltage and positive and negative detection: When the device is connected to the car's power supply, the display lights up white and the screen will show 0v. When the probe is touched to the positive circuit, the screen will show the current circuit voltage. (If the device power supply and the circuit being tested are separate, then the ground lead of the device needs to be connected to the negative terminal of the circuit being tested). If the probe touches the negative circuit, the display will light up green, the screen will show 0v, and the device will sound a beep.

2. Diode detection: Connect the ground lead to the negative terminal of the diode and the probe to the positive terminal of the secondary tube, when the icon appears on the display and a voltage value is shown, the diode is good, if the display does not respond or the screen shows green and the device beeps, the diode is bad.

3.Component activation: The activation function can be used to activate components such as the starter fuel pump, solenoid, blower, cooling fan, headlights, etc. Connect the grounding auxiliary clip to the negative terminal of the part, the probe contact to the positive terminal of the part, then press the positive activation button (-), the probe will output a positive voltage, the screen will light up red and display the current activation voltage, and the part will be activated at the same time. Probe can output positive and negative voltage, press the (-) button probe output positive voltage, press the (=) button probe will output negative voltage, activation output maximum current is 8A, more than 16A equipment will start trip protection function.

4.Continuity testing: By using the probe tip and an auxiliary ground wire, continuity testing can be performed on wires and components that are disconnected from the vehicle's electrical system. When the continuity test is passed the display lights up green and the unit beeps. (Note: Do not press the activation switch during the continuity test.)

5.Grounding detection: Use the probe to make contact with the negative terminal of the component. When the ground test is passed, the display will light up green and the device tone will sound. (Note: Do not press the activation switch
Item Specifics
