Six - Digit LED Frequency Display Module: Your Ideal HAM Radio Companion
Description:
Designed with passion for forum HAM radio enthusiasts, this six - digit LED frequency display module is a paragon of cost - effectiveness. It's not just a module; it's an essential tool for every HAM radio setup.
Functionality at a Glance
- Frequency Display: Specifically engineered to showcase the frequency values of transceivers and other related equipment with utmost clarity.
- Regular Frequency Measurement: Capable of performing routine frequency measurements, ensuring your radio operations are always on - point.
Outstanding Features:
- Compact and Elegant: Small in size yet big on functionality, it fits seamlessly into any setup without sacrificing performance.
- Rock - Solid Reliability: Built to endure, offering consistent and trustworthy results, making it a reliable partner for all your radio endeavors.

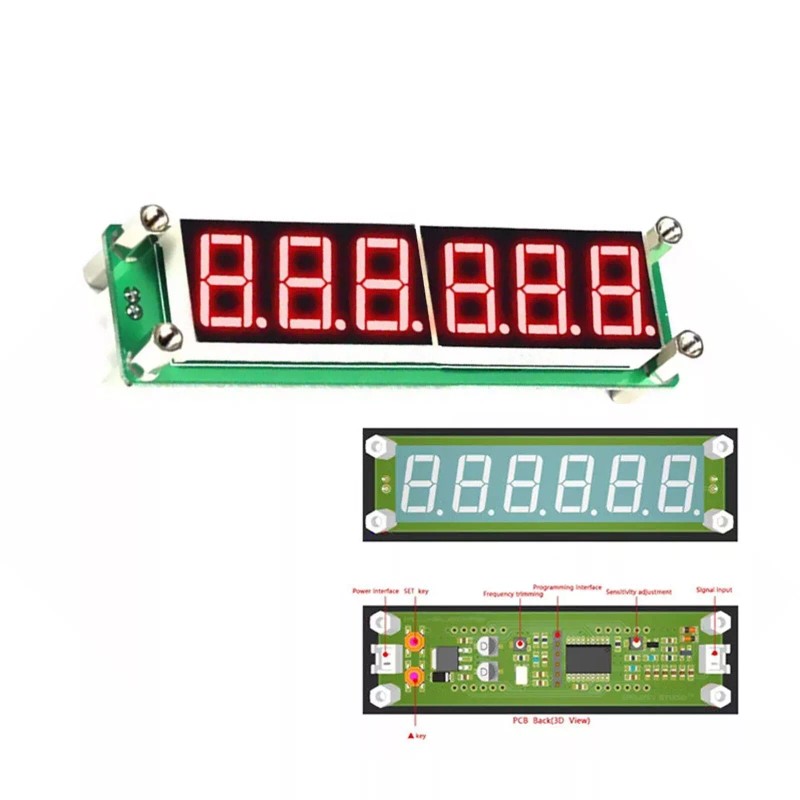

- Exceptional Visual Appeal: The six - digit common anode LED display, with 8 - level adjustable brightness (factory - set at the maximum for immediate vivid visibility), guarantees easy - to - read frequency information, even in challenging lighting conditions.
- Budget - Friendly: High - quality performance comes at an affordable price, making it accessible to HAM radio enthusiasts at all levels.
Technical Specifications:
- Gate Time: A swift 0.1 second, enabling rapid and efficient frequency measurements.
- Measurement Channel
- High Input Impedance: Facilitates stable signal reception, ensuring accurate readings.
- Broad Measuring Range: Spanning from 0.1 MHz to 65 MHz, it covers a wide spectrum of frequencies relevant to HAM radio operations.
- Precision Accuracy: With a measurement accuracy of 10 Hz, you can rely on the module for precise frequency determination.
- High Sensitivity: Sensitive to signals better than 60mVpp, it can pick up even the faintest of frequencies.
- IF Setting
- Advanced Dual IF Design: The independent dual intermediate frequency design provides enhanced flexibility.
- Fine - Tuned Adjustment: The minimum step of intermediate frequency adjustment is a precise 100Hz, within an extensive range of 0 - 99.9999MHz.
- Versatile Modes: Choose between adding or subtracting intermediate frequency modes to suit your specific needs.
- Frequency Reference: Utilizes a 13.000MHz Temperature Compensated Voltage Controlled Crystal Oscillator (VC - TCXO) in a 5032 package, boasting a remarkable frequency stability of ±2.5ppm. This ensures that your frequency readings remain consistent over time.
- Working Voltage
- Safe and Versatile: Operates on DC 8V - 15V with built - in power reverse polarity protection, safeguarding your module from incorrect voltage connections. Additionally, it can work with DC 5V, although this requires simple hardware setting.
- Working Current: With a maximum current draw of 90mA, it's energy - efficient, ensuring long - lasting operation without excessive power consumption.

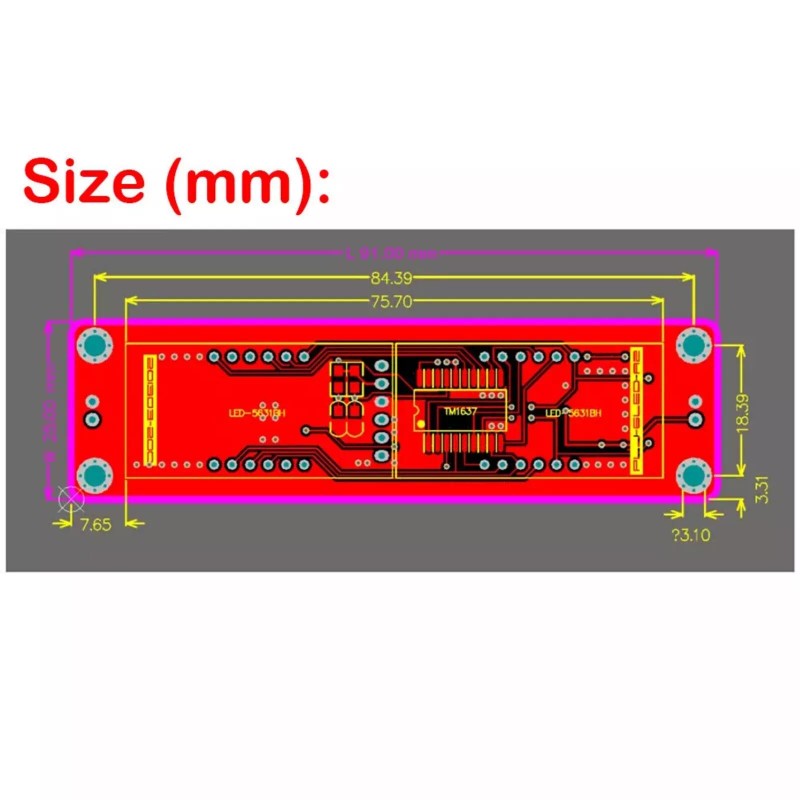

- Physical Dimensions: Measuring 91mm (Length) × 28mm (Width) × 20mm (Height), it's compact enough to fit into the tightest of spaces.

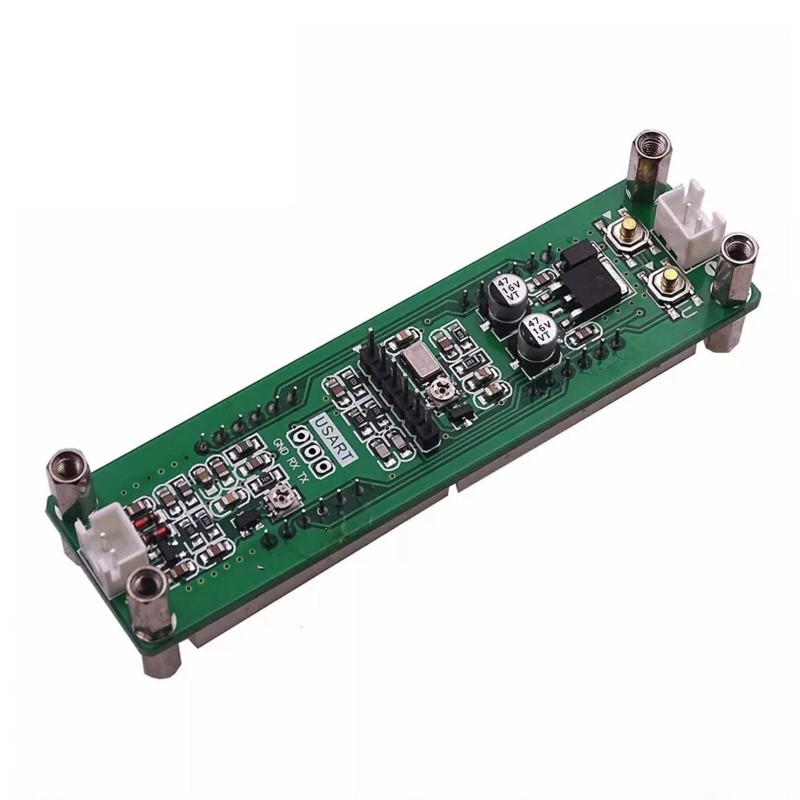

- Onboard Interfaces
- RF IN (Signal Input): Equipped with an HX2.54 - 2P socket for easy connection of signal sources.
- ICSP (Programming Interface): A 2.54 - 6P pin for convenient programming and customization, allowing you to tailor the module to your unique requirements.
- DC IN (Power Interface): An HX2.54 - 2P socket for power input, ensuring a secure and stable power connection.
Package Contents:

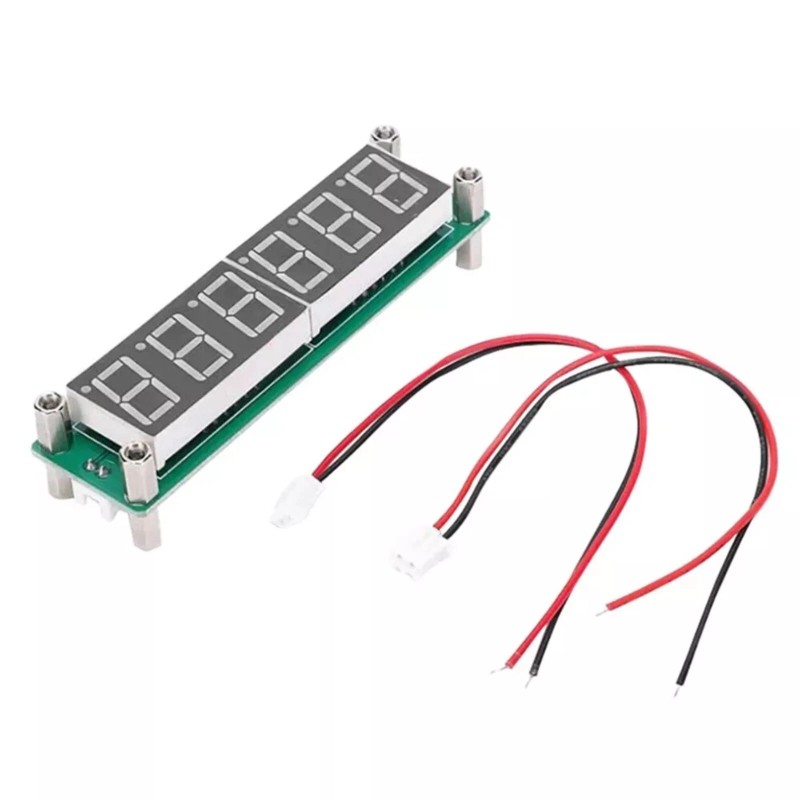

- 1 high - quality frequency counter
- 2 connecting wires, ensuring a hassle
Elevate your HAM radio experience with this feature - rich, reliable, and cost - effective six - digit LED frequency display module.
| Brand: | Unbranded |
|---|---|
| Isin: | IGOZSTHZJEOA |
This product is not available in the selected country
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Six - Digit LED Frequency Display Module: Your Ideal HAM Radio Companion
Description:
Designed with passion for forum HAM radio enthusiasts, this six - digit LED frequency display module is a paragon of cost - effectiveness. It's not just a module; it's an essential tool for every HAM radio setup.
Functionality at a Glance
- Frequency Display: Specifically engineered to showcase the frequency values of transceivers and other related equipment with utmost clarity.
- Regular Frequency Measurement: Capable of performing routine frequency measurements, ensuring your radio operations are always on - point.
Outstanding Features:
- Compact and Elegant: Small in size yet big on functionality, it fits seamlessly into any setup without sacrificing performance.
- Rock - Solid Reliability: Built to endure, offering consistent and trustworthy results, making it a reliable partner for all your radio endeavors.
- Exceptional Visual Appeal: The six - digit common anode LED display, with 8 - level adjustable brightness (factory - set at the maximum for immediate vivid visibility), guarantees easy - to - read frequency information, even in challenging lighting conditions.
- Budget - Friendly: High - quality performance comes at an affordable price, making it accessible to HAM radio enthusiasts at all levels.
Technical Specifications:
- Gate Time: A swift 0.1 second, enabling rapid and efficient frequency measurements.
- Measurement Channel
- High Input Impedance: Facilitates stable signal reception, ensuring accurate readings.
- Broad Measuring Range: Spanning from 0.1 MHz to 65 MHz, it covers a wide spectrum of frequencies relevant to HAM radio operations.
- Precision Accuracy: With a measurement accuracy of 10 Hz, you can rely on the module for precise frequency determination.
- High Sensitivity: Sensitive to signals better than 60mVpp, it can pick up even the faintest of frequencies.
- IF Setting
- Advanced Dual IF Design: The independent dual intermediate frequency design provides enhanced flexibility.
- Fine - Tuned Adjustment: The minimum step of intermediate frequency adjustment is a precise 100Hz, within an extensive range of 0 - 99.9999MHz.
- Versatile Modes: Choose between adding or subtracting intermediate frequency modes to suit your specific needs.
- Frequency Reference: Utilizes a 13.000MHz Temperature Compensated Voltage Controlled Crystal Oscillator (VC - TCXO) in a 5032 package, boasting a remarkable frequency stability of ±2.5ppm. This ensures that your frequency readings remain consistent over time.
- Working Voltage
- Safe and Versatile: Operates on DC 8V - 15V with built - in power reverse polarity protection, safeguarding your module from incorrect voltage connections. Additionally, it can work with DC 5V, although this requires simple hardware setting.
- Working Current: With a maximum current draw of 90mA, it's energy - efficient, ensuring long - lasting operation without excessive power consumption.
- Physical Dimensions: Measuring 91mm (Length) × 28mm (Width) × 20mm (Height), it's compact enough to fit into the tightest of spaces.
- Onboard Interfaces
- RF IN (Signal Input): Equipped with an HX2.54 - 2P socket for easy connection of signal sources.
- ICSP (Programming Interface): A 2.54 - 6P pin for convenient programming and customization, allowing you to tailor the module to your unique requirements.
- DC IN (Power Interface): An HX2.54 - 2P socket for power input, ensuring a secure and stable power connection.
Package Contents:
- 1 high - quality frequency counter
- 2 connecting wires, ensuring a hassle
Elevate your HAM radio experience with this feature - rich, reliable, and cost - effective six - digit LED frequency display module.
- Working current: Max 90mA
- Brand: Unbranded
- Frequency Range: 0.1MHz~65MHz
- Sensitivity: better than 60mVpp
- Analog/Digital: Digital
- Dimensions: 91mm×28mm×20mm
- Display digits: Six-digit
- MPN: Does Not Apply
- Measurement accuracy: 10 Hz
- Working voltage: DC8V~15V
- Display: Red LED
- UPC: Does not apply
