Universal RF Coax Composite Video To VGA Converter Switch
This external analog cable TV tuner is an all-in-1 unit as a video up-converter, video switcher and CATV tuner box with outstanding 1080p or  1920x1200 pixels VGA output with sharp video quality.

TV channel or video input source selection and other functions can be controlled by using the supplied IR remote or push buttons on the unit.

Manual buttons are for basic functions like power on/off, video input selection, TV channel up/down and volume control.

Advanced features like Picture-In-Picture, Mute, On-Screen system menu are available through the IR remote.

This device supports multiple video signal inputs from:

• RF or coax feeds for analog cable TV outlet, modulator,
• Satellite receiver with CH3/CH4 TV out and other RF modulated systems.
• digital media player such as DVD or signage player
• video camera such as camcorder , surveillance camera or DVR
• game consoles such as PS2, PS3, Xbox, Wii, etc.
• desktop/laptop computer
• all other analog video sources such as DVR, A/V receiver, etc.

Universal Analog TV Tuner With VGA Output
The RF input of this TV tuner converter supports worldwide analog RF TV channel frequencies and standards including NTSC, PAL B/G/D/K/I, PAL M/N and SECAM.

It works for all regions in the world and able to decode all standard analog cable TV channels. [Note: This tuner does not support decoding of UHF/VHF channels]

This tuner can provide total of 7 different VGA output resolutions including:

• 1920x1200 pixels
• 1920x1080 pixels
• 1680x1050 pixels
• 1440x900 pixels
• 1280x1024 pixels
• 1024x768 pixels
• 800x600 pixels

RF Coax CATV Channel Demodulator
This TV video converter switch is an easy add-on tuner module for those LCD monitors projectors that do not have TV tuner built in or LCD TV with broken RF terminals.

It can demodulate the RF outputs from cable set top boxes, video modulators, surveillance DVR systems and so on.

This RF TV demodulator can also be used for decoding those modulated TV out from DirecTV, Dish Network and all other satellite receivers.

Multi-Format Analog Video To VGA Scaler Switcher
This multi-function TV video converter unit supports total of 3 video inputs including coax, composite RCA video and VGA Input.

It expands the VGA monitor with video/audio inputs like what a TV has.

This unit is great for various applications including:

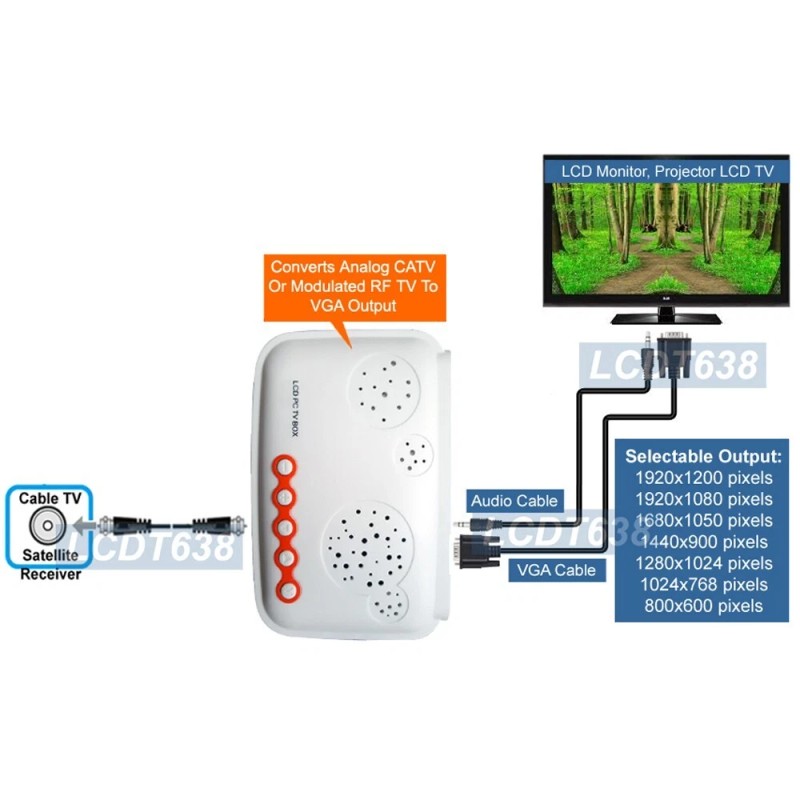

• RF Coax CATV To VGA: decode analog cable TV channels or the satellite coax output to 1920x1080/1920x1200 VGA pixels for display.
• Composite RCA To VGA: up-convert composite RCA video to 1920x1080 or 1920x1200 VGA pixels for display.
• Audio/Video Switch: easy IR remote control for selecting desired RF TV input, RCA video input or VGA input from sources connected for presentation.

Real-Time Picture-In-Picture Video Processor
This unit supports VGA pass-through for hookup with VGA output from computer or DVR.

This allows users to use a regular LCD monitor or projector to display TV channel, DVD movie, surveillance cam or video game while using computer at the same time on one screen as picture-in-picture (PIP).

The available PIP control functions includes:

• PIP Input Selection: Select the desired input video source (TV channel, RCA, VGA) to be displayed on the sub video window.
• PIP Size: Users can re-size the PIP video window screen at 1/16, 1/9, 1/4 and full screen display.
• PIP Location: The PIP video window can be moved around the PC monitor screen to any desired position through IR remote.

Advanced Video Processor Engine
With image enhancement technologies implemented, this converter produces greater detail for a more true-to-life image. Advanced features include:

• Digital color luminance improvement to enhance image definition for crisp and clear images
• Digital transient improvement to reduce color smear for true and brilliant color definition
• Advanced color space conversion with smooth motion picture enhancement
• Adaptive non-linear noise filter to reduce interference between pixels
• Superior video quality with 3:2/2:2 pull-down recovery to remove jitters

Internal Speaker
The audio output of this TV video converter can be played directly through its internal speaker or routed through its 3.5mm audio out when hooked up with external speakers or home stereo system.

Volume level or TV channel up/down can be controlled via the IR remote or the push buttons on the TV tuner unit.

Last Memory
This video image processor will memorize users' settings once configured or adjusted.

The PIP screen mode will be displayed right away in the same configuration after power cycling or power outage. No need to configure again.

• Universal TV tuner design supports worldwide RF frequencies for all NTSC, PAL B/G/D/K/I, PAL-M, PAL-N systems.
• Easy add-on TV tuner module for all VGA-based monitor or projector without coax input.
• Decoding RF coax signals from cable outlet, satellite box, RF modulator or CCTV surveillance camera system to sharp VGA pixels for display.
• 3 selectable video inputs: RF/Coax, RCA A/V and VGA ipnut/pass through.
• Excellent video to VGA converter for converting interlaced video into progressive VGA type for great video clarity and sharpness.
• Selectable 7-level VGA RGBHV output resolutions with maximum output up to 1920 x 1200 and 1920 x 1080 pixels.
• Supports Picture-In-Picture function for watching cable TV or video from a sub-window while the compute takes the main screen.
• PIP TV video sub-window can be resized from 1/16, 1/9, 1/4 screen or full screen display.
• PIP window screen location can be re-positioned to anywhere on the monitor screen.
• Premium motion adaptive de-interlacer built in for minimizing jagged edges noticed on big screen.
• Provides crisp and clear images with true and brilliant color definition.
• Adjustable controls of video color elements for brightness, contrast, hue, saturation, color temperature and picture modes.
• Supports all NTSC and PAL systems with automatic video mode detection.
• Full-function IR remote controller.
• Featured with internal speaker for direct audio output.
• Easy operation by IR remote provided or manual push buttons on the converter unit.

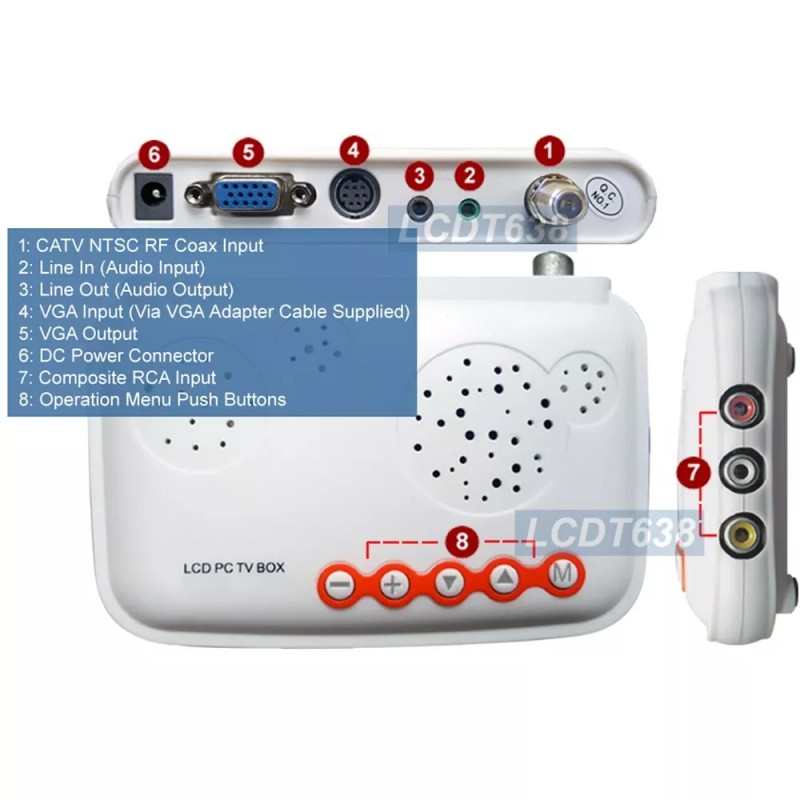

• TV Tuner Type: Universal Type for all NTSC, PAL B/G/D/K/I, PAL-M, PAL-N, SECAM systems
• 3 Video Inputs:
  • Video 1 Input: Coaxial (RF) for cable TV input [not supporting UHF/VHF coax input]
  • Video 2 Input: Composite RCA video Input
  • Video 3 Input: computer VGA input via mini Din adapter cable
• Video Output: 15 pin D-sub VGA
• 2 Audio Inputs:
  • Audio 1 Input: Composite RCA L/R connectors for RCA input
  • Audio 2 Input: 3.5 mm stereo phone jack x 1 for PC VGA input
• Audio Output: 3.5 mm stereo phone jack x 1
• Video Output Resolutions:
  • 1920x1200 pixels
  • 1920x1080 pixels
  • 1680x1050 pixels
  • 1440x900 pixels
  • 1280x1024 pixels
  • 1024x768 pixels
  • 800x600 pixels
• Video Adjustment  Support: Brightness, Contrast, Color, Hue, Sharpness, Tint
• TV Audio Support: stereo, mono, mute
• Power Supply: DC 5V 1A out, center positive

• TV video converter/tuner unit
• IR remote controller
• 5V DC power adapter (US plug)
• RF coax adapter
• VGA input adapter cable
• 3.5mm stereo cable
• Vertical stand
• User manual
