Uniview NSW5110-24GT4G
Uniview NSW5110-24GT4G
Support RJ45 Auto-MDI/MDIX;
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Introduction
NSW5110 series products provide a rich layer two plus functions, with excellent performance and friendly management interface, can fully meet the needs of users, including system configuration, port configuration, MAC binding, MAC filtering, VLAN configuration, SNMP configuration, ACL configuration, IP QOS configuration, basic configuration, AAA IGMP Snooping configuration, Static routing configuration, MSTP configuration, GMRP configuration, EAPS configuration, RMON configuration, cluster management, ERPS configuration, log management and so on.
Model | NSW5110-24GT4GP-IN |
Ports | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
Switching capacity | 56Gbps |
Forwarding performance | 41.66Mpps |
Packet Buffer | 4Mbit |
MAC | 8K |
Dimensions (W×D×H) | 440*208*44mm |
Weight | 3.6<kg |
Power supply | AC: 100-240V, 50/60Hz |
Mean Time Between Failure (MTBF) | >50000 hours |
Operating temperature | 0°C-40°C (32°F-104°F) |
Operating humidity | 10%~90% (noncondensing) |
Storage humidity | 5%~90% (noncondensing) |

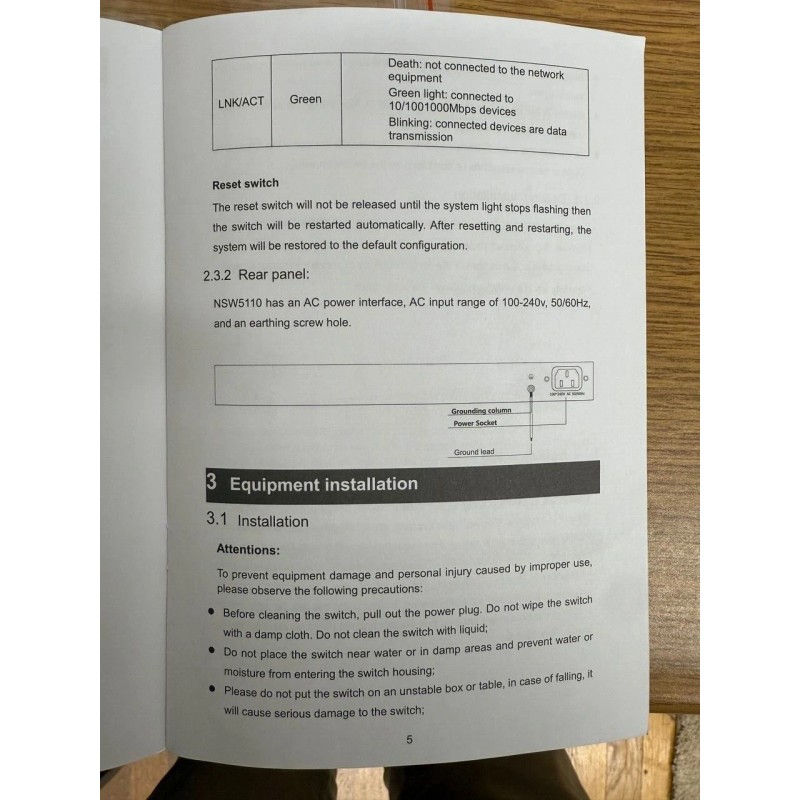

Indicatorlight | PWR: Death: switch does not power on Permanent: the switch is powered on |
LINK/ACT: Death: not connected to the network equipment Green light: connected to 1000Mbps devices Blinking:connected devices are data transmission | |
System: Blinking: the system works Out: the system is starting or has nopower |
Software Specification
Ethernet | support Frame format:Ethernet II |
support Gigabit SFP 100 Gigabit compatible | |
support flow control | |
support Line order(MDIX/MDI) | |
support link aggregation | |
support Jumbo Frame length 9K | |
support Port rate adjustment auto 10Mfull、half 100Mfull、half 1000Mfull | |
support Port information statistics | |
support Port Description | |
IEEE802.1d STP | support IEEE802.1d STP |
IEEE802.1w RSTP | support IEEE802.1w RSTP |
MSTP | support standard 802.1s MSTP |
support64 MSTP instance | |
STP Optional Features | support PORT FAST |
support BPDU FILTER | |
support BPDU GUARD | |
support hello-time | |
support Max Age | |
support Forward Delay | |
support Max hops | |
support TC ignore | |
support TC GUARD | |
mstp Port Optional Features | support PORT FAST |
support BPDU FILTER | |
support BPDU GUARD | |
support TC GUARD | |
support TC filter | |
support Auto Edge | |
support TC PROTECTION | |
support Compatibility mode | |
support ROOT GUARD | |
support point to point | |
AP | support Flow-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address |
support Maximum number of Aps | |
support AP member port that is included in each AP. | |
storm control | support broadcast storm control |
support multicast storm control | |
support unicast storm control | |
support Control granularity (percentage and kbps are values for 64-byte datagram) 64kbps | |
mirroring | support Many-to-one mirror |
support Stream-based mirroring | |
support Number of mirror groups4 SESSION | |
VLAN | support Whether to allow VLAN 1 to be deleted on the trunk port |
support Port based VLAN | |
support GVRP | |
support The number of VLANs that can support be created 4094 | |
support mac-vlan | |
support subnet-vlan | |
support protocol vlan | |
supportvlan maps | |
support Allow specified VLAN ID range 1-4094 | |
MAC address | support global MAC address qualities 8K |
support static MAC address qualities 1024 | |
support filtering MAC address qualities 1024 | |
support Check and delete address table | |
support Static address and dynamic learning address | |
support filtering address | |
LLDP | support LLDP |
ONVIF | support ONVIF Detect |
support ONVIF Server | |
IGMP Snooping | support IGMP SNOOPING Groups qualities |
support IGMP V1,V2 snooping | |
support source IP check | |
support Multicast policy and filtering | |
support IGMP Fast Leave | |
Port limit | support Egress speed limit granularity |
support Ingress speed limit | |
support Egress speed limit | |
ARP | support Anti-ARP gateway spoofing |
support filtering IP Port | |
support Free ARP protection | |
support Source MAC check | |
support ARP detection | |
supportip and mac Static binding | |
supportarp trust Port | |
Network Tool | support Ping |
supportTraceroute | |
ACE capacities | support The input direction is associated with the physical port |
ACL | support IP standard ACL |
support IP extended ACL | |
support MAC extended ACL | |
support professional ACL | |
support global ACL | |
support time-range ACL | |
QoS | support QOS hardware queues qualities |
support Determine the exit queue according to 802.1p, DSCP, port | |
support Stream-based 802.1p re-marking | |
support Stream-based queue maps | |
support SP | |
support WRR | |
support RR | |
support WFQ | |
Port Security | support Mac filtering time support Whitelist data support clear mac address table support Mac address binding support Max mac qualities settings support Blacklist data support Violation mode |
Port isolate | |
LOOPBACK | |
DAI | support software DAI entry qualities |
SNMP | Supporting version(SNMPV1,V2c,V3) |
Web management | support Web management |
support HTTP V1.1 | |
support HTTPS | |
RMON | support RMON(1,2,3,9) |
system upgrade | support System upgrade or page upgrade via tftp |
save Configuration | support save Configuration |
Configuration management | support Import, export, backup configuration, restore factory configuration |
Syslog/Debug | support Syslog/Debug |
Security function | |
Basic characteristics | support login authentication(password, none) |
Password security | support Static password encryption transmission, storage |
support Strong password and password minimum length check | |
Radius | support Radius |
support Specify multiple groups of servers ip | |
Tacacs+ | support TACACS+ |
support Specify multiple groups of servers ip | |
ssh | support SSHv2.0 |
Anti-dos attack | support Interrupting Land attack packets and illegal TCP packets |
dot1x | support 802.1X |
support port base | |
support mac base | |
support MAB | |
support Multiple account switching | |
Defense gateway ARP spoofing | support Defense gateway ARP spoofing |
IP SOURCE GUARD | support IP SOURCE GUARD |
CPP | support hardware CPP |
ARP Check | support IP+MAC data binding using DHCP SNOOPING |
support Leverage 1X IP+MAC data binding | |
support leverage IP+MAC data binding of IP SOURCE GUARD | |
support Trusted ARP | |
Web management | support HTTP Access |
DHCP Relay | support Allow configuration of the number of servers |
DHCP snooping | support Option82 |
Supportrust Port Configuration | |
SupportIP、MAC binding table(ip source guard) | |
SupportBind to logical ports (including physical interfaces) | |
SupportSoftware binding database capacity | |
Supportbind to VLAN | |
DHCP server | Support binding table Configuration |
Support Address pool configuration | |
Telnet | Support Telnet |
Support Maximum number of connections | |
TFTP | Support TFTP Client |
FTP | Support FTP Server |
Support FTP Client | |
ERPS | Support Delete ERPS Loop |
SupportErps Loop Configuration | |
SupportErps time Configuration | |
static and dynamic lacp link aggregation | SupportLacp Configuration |
Support Load-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address | |
Support link aggregation groups qualities | |
Support max link aggregation qualities of each link aggregation group | |
Support link aggregation port configuration |
Brand: | Uniview |
---|---|
Isin: | I5NERV9WWQLY |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Support RJ45 Auto-MDI/MDIX;
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Introduction
NSW5110 series products provide a rich layer two plus functions, with excellent performance and friendly management interface, can fully meet the needs of users, including system configuration, port configuration, MAC binding, MAC filtering, VLAN configuration, SNMP configuration, ACL configuration, IP QOS configuration, basic configuration, AAA IGMP Snooping configuration, Static routing configuration, MSTP configuration, GMRP configuration, EAPS configuration, RMON configuration, cluster management, ERPS configuration, log management and so on.
Model | NSW5110-24GT4GP-IN |
Ports | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
Switching capacity | 56Gbps |
Forwarding performance | 41.66Mpps |
Packet Buffer | 4Mbit |
MAC | 8K |
Dimensions (W×D×H) | 440*208*44mm |
Weight | 3.6<kg |
Power supply | AC: 100-240V, 50/60Hz |
Mean Time Between Failure (MTBF) | >50000 hours |
Operating temperature | 0°C-40°C (32°F-104°F) |
Operating humidity | 10%~90% (noncondensing) |
Storage humidity | 5%~90% (noncondensing) |
Indicatorlight | PWR: Death: switch does not power on Permanent: the switch is powered on |
LINK/ACT: Death: not connected to the network equipment Green light: connected to 1000Mbps devices Blinking:connected devices are data transmission | |
System: Blinking: the system works Out: the system is starting or has nopower |
Software Specification
Ethernet | support Frame format:Ethernet II |
support Gigabit SFP 100 Gigabit compatible | |
support flow control | |
support Line order(MDIX/MDI) | |
support link aggregation | |
support Jumbo Frame length 9K | |
support Port rate adjustment auto 10Mfull、half 100Mfull、half 1000Mfull | |
support Port information statistics | |
support Port Description | |
IEEE802.1d STP | support IEEE802.1d STP |
IEEE802.1w RSTP | support IEEE802.1w RSTP |
MSTP | support standard 802.1s MSTP |
support64 MSTP instance | |
STP Optional Features | support PORT FAST |
support BPDU FILTER | |
support BPDU GUARD | |
support hello-time | |
support Max Age | |
support Forward Delay | |
support Max hops | |
support TC ignore | |
support TC GUARD | |
mstp Port Optional Features | support PORT FAST |
support BPDU FILTER | |
support BPDU GUARD | |
support TC GUARD | |
support TC filter | |
support Auto Edge | |
support TC PROTECTION | |
support Compatibility mode | |
support ROOT GUARD | |
support point to point | |
AP | support Flow-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address |
support Maximum number of Aps | |
support AP member port that is included in each AP. | |
storm control | support broadcast storm control |
support multicast storm control | |
support unicast storm control | |
support Control granularity (percentage and kbps are values for 64-byte datagram) 64kbps | |
mirroring | support Many-to-one mirror |
support Stream-based mirroring | |
support Number of mirror groups4 SESSION | |
VLAN | support Whether to allow VLAN 1 to be deleted on the trunk port |
support Port based VLAN | |
support GVRP | |
support The number of VLANs that can support be created 4094 | |
support mac-vlan | |
support subnet-vlan | |
support protocol vlan | |
supportvlan maps | |
support Allow specified VLAN ID range 1-4094 | |
MAC address | support global MAC address qualities 8K |
support static MAC address qualities 1024 | |
support filtering MAC address qualities 1024 | |
support Check and delete address table | |
support Static address and dynamic learning address | |
support filtering address | |
LLDP | support LLDP |
ONVIF | support ONVIF Detect |
support ONVIF Server | |
IGMP Snooping | support IGMP SNOOPING Groups qualities |
support IGMP V1,V2 snooping | |
support source IP check | |
support Multicast policy and filtering | |
support IGMP Fast Leave | |
Port limit | support Egress speed limit granularity |
support Ingress speed limit | |
support Egress speed limit | |
ARP | support Anti-ARP gateway spoofing |
support filtering IP Port | |
support Free ARP protection | |
support Source MAC check | |
support ARP detection | |
supportip and mac Static binding | |
supportarp trust Port | |
Network Tool | support Ping |
supportTraceroute | |
ACE capacities | support The input direction is associated with the physical port |
ACL | support IP standard ACL |
support IP extended ACL | |
support MAC extended ACL | |
support professional ACL | |
support global ACL | |
support time-range ACL | |
QoS | support QOS hardware queues qualities |
support Determine the exit queue according to 802.1p, DSCP, port | |
support Stream-based 802.1p re-marking | |
support Stream-based queue maps | |
support SP | |
support WRR | |
support RR | |
support WFQ | |
Port Security | support Mac filtering time support Whitelist data support clear mac address table support Mac address binding support Max mac qualities settings support Blacklist data support Violation mode |
Port isolate | |
LOOPBACK | |
DAI | support software DAI entry qualities |
SNMP | Supporting version(SNMPV1,V2c,V3) |
Web management | support Web management |
support HTTP V1.1 | |
support HTTPS | |
RMON | support RMON(1,2,3,9) |
system upgrade | support System upgrade or page upgrade via tftp |
save Configuration | support save Configuration |
Configuration management | support Import, export, backup configuration, restore factory configuration |
Syslog/Debug | support Syslog/Debug |
Security function | |
Basic characteristics | support login authentication(password, none) |
Password security | support Static password encryption transmission, storage |
support Strong password and password minimum length check | |
Radius | support Radius |
support Specify multiple groups of servers ip | |
Tacacs+ | support TACACS+ |
support Specify multiple groups of servers ip | |
ssh | support SSHv2.0 |
Anti-dos attack | support Interrupting Land attack packets and illegal TCP packets |
dot1x | support 802.1X |
support port base | |
support mac base | |
support MAB | |
support Multiple account switching | |
Defense gateway ARP spoofing | support Defense gateway ARP spoofing |
IP SOURCE GUARD | support IP SOURCE GUARD |
CPP | support hardware CPP |
ARP Check | support IP+MAC data binding using DHCP SNOOPING |
support Leverage 1X IP+MAC data binding | |
support leverage IP+MAC data binding of IP SOURCE GUARD | |
support Trusted ARP | |
Web management | support HTTP Access |
DHCP Relay | support Allow configuration of the number of servers |
DHCP snooping | support Option82 |
Supportrust Port Configuration | |
SupportIP、MAC binding table(ip source guard) | |
SupportBind to logical ports (including physical interfaces) | |
SupportSoftware binding database capacity | |
Supportbind to VLAN | |
DHCP server | Support binding table Configuration |
Support Address pool configuration | |
Telnet | Support Telnet |
Support Maximum number of connections | |
TFTP | Support TFTP Client |
FTP | Support FTP Server |
Support FTP Client | |
ERPS | Support Delete ERPS Loop |
SupportErps Loop Configuration | |
SupportErps time Configuration | |
static and dynamic lacp link aggregation | SupportLacp Configuration |
Support Load-Balance Method dst-ip Destination IP address dst-mac Destination MAC address src-dst-ip Source and destination IP address src-dst-mac Source and destination MAC address src-ip Source IP address src-mac Source MAC address | |
Support link aggregation groups qualities | |
Support max link aggregation qualities of each link aggregation group | |
Support link aggregation port configuration |
- Brand: Uniview
- Form Factor: Rack Mountable
- Type: Ethernet Switch
- Maximum LAN Data Rate: 1000 Mbps/1 Gbps
- Maximum Data Transfer Rate: 56 GBPS
- Network Connectivity: Wired-Ethernet (RJ-45)
- Network Management Type: Fully Managed

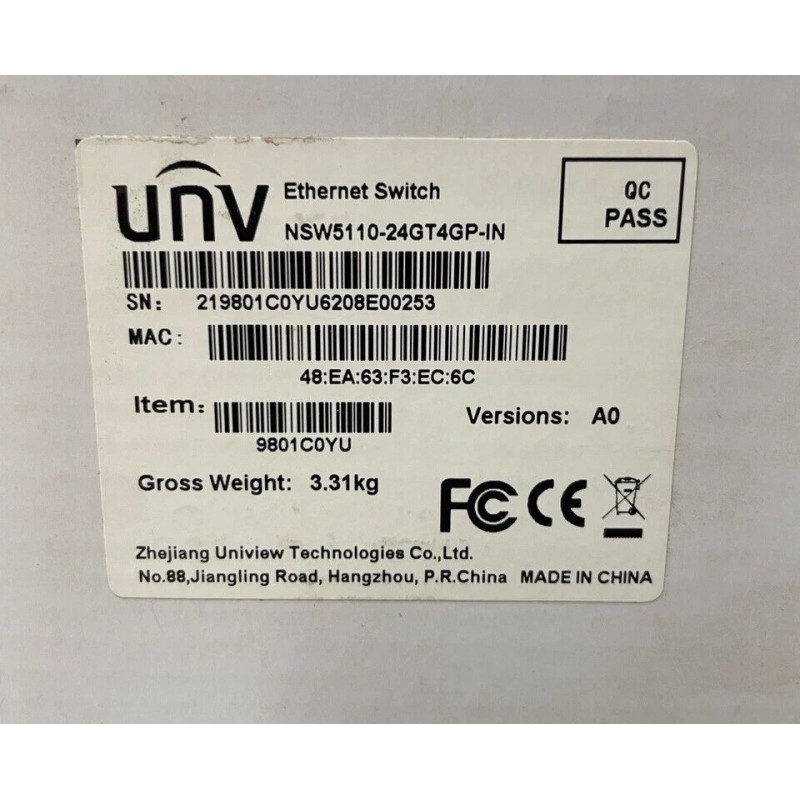

- Model: NSW5110-24GT4GP-IN
- MPN: NSW5110-24GT4GP
- Number of LAN Ports: 24
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
Shipping Method | Estimated Delivery | Cost |
---|---|---|
Free Shipping (US) | 5–10 business days | Free, available on eligible items |
Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
