uxcell AXK1024+2AS Needle Roller Thrust Bearing and Bearing Washer 0.4 inch (10 mm) Bore Diameter 0.9 inch (24 mm) OD 0.2 inch (4 mm) Total Thickness for Lawn Mower Truck Power Steering
uxcell AXK1024+2AS Needle Roller Thrust Bearing and Bearing Washer 0.4 inch (10 mm) Bore Diameter 0.9 inch (24 mm) OD 0.2 inch (4 mm) Total Thickness for Lawn Mower Truck Power Steering
uxcell AXK1024+2AS Needle Roller Thrust Bearing and Bearing Washer 0.4 inch (10 mm) Bore Diameter 0.9 inch (24 mm) OD 0.2 inch (4 mm) Total Thickness for Lawn Mower Truck Power Steering
- Size & Package: Bearing number is AXK1024 and bearing washer number AS1024. Bearings are 10mm / 0.39" bore diameter and 24mm / 0.93" outer diameter. Total thickness is 4mm / 0.16" and washer thickness is 1mm / 0.04". Package includes 8 bearings and 16 bearing washers
- [Material]: These needle roller bearings are made of chrome steel with high precision, rust and heat resistance, strong and durable. Washers are made of hardened spring steel and polished on both sides, can be used as a race way
- [FEATURES]: These bearings handle heavy peak loads due to low diameter fluctuations between rollers. Thrust bearings can be combined with washers if adjacent parts do not function as a raceway. Removable parts are replaceable and provide versatility. Low noise operation, long service life and easy maintenance
- [Easy Installation]: Loosen the shaft and apply grease to bearings and washers. Replace washers with our roller bearings and washers and re-tighten the nut
- [Wide Range of Use]: These needle low rust bearings provide high rigidity within the smallest space and are used in a variety of applications from agricultural machinery to shipping equipment, lawn mowers, robotics, elevators, rollers, ships, aggregate crushers
| Brand: | uxcell |
|---|---|
| Color: | silver-tone |
| Manufacturer: | uxcell |
| Part Number: | S8Y987B |
| Isin: | I3WGB3X5ILMO |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
MATERIAL - These needle roller bearings are made of chrome steel with high precision, rust and heat resistance, strong and durable. Washers are made of double polished 65Mn spring steel and can be used as a raceway.
FEATURES - These bearings handle heavy peak loads due to low diameter fluctuations between rollers. Thrust bearings can be combined with washers if adjacent parts do not function as a raceway. Removable parts are replaceable and provide versatility. Low noise operation, long service life and easy to maintain.
EASY TO INSTALL - Loosen the shaft and apply grease to bearings and washers. Replace washers with our roller bearings and washers and re-tighten the nuts.
WIDE RANGE OF USE - These needle raw rust bearings provide high rigidity within the smallest space and are used in a variety of applications from agricultural machinery to shipping equipment, lawn mowers, robotics, elevators, rollers, ships, aggregate crushers and more.
Specifications:

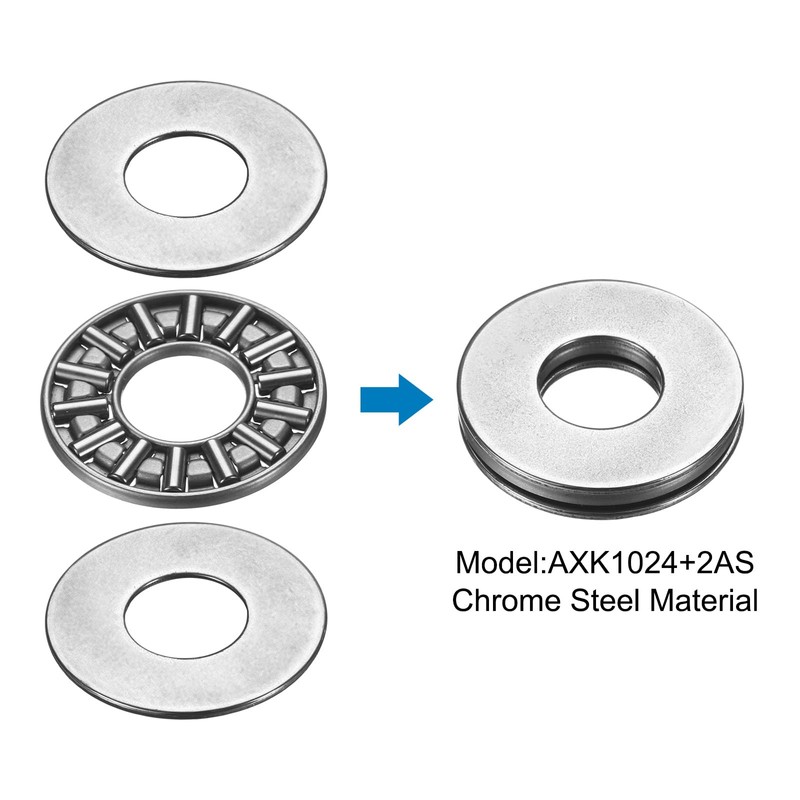

Bearing Number: AXK1024
Bearing Washer Number: AS1024
Needle Roller Material: Chrome Steel
Bearing Washer Material: 65Mn Spring Steel

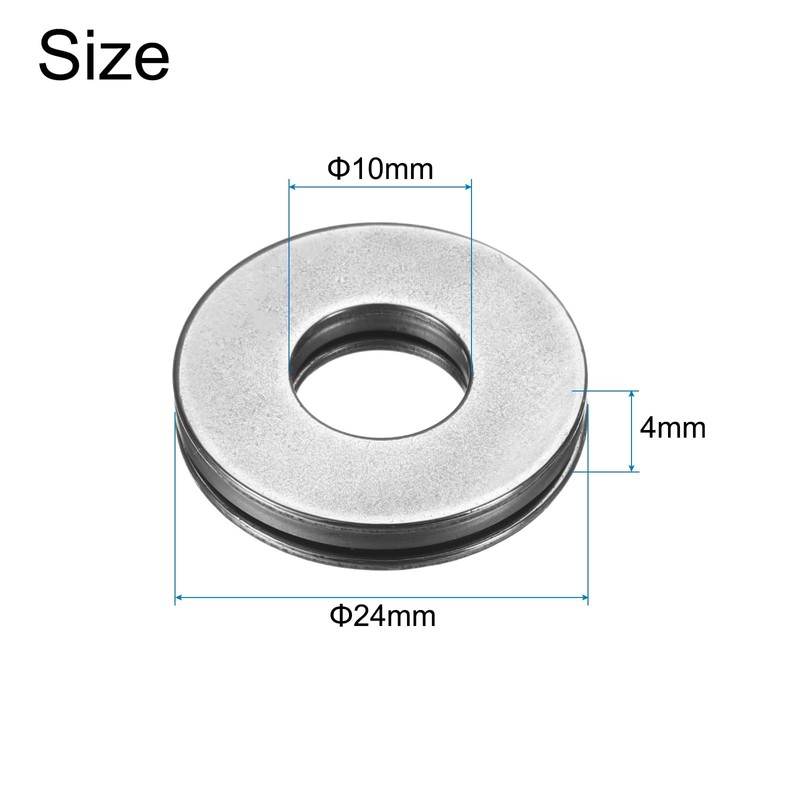

Bore diameter: 0.39 in (10 mm)
Outer Diameter: 24mm / 0.93"
Washer Thickness: 1mm / 0.04"
Total Thickness: 4mm / 0.16"

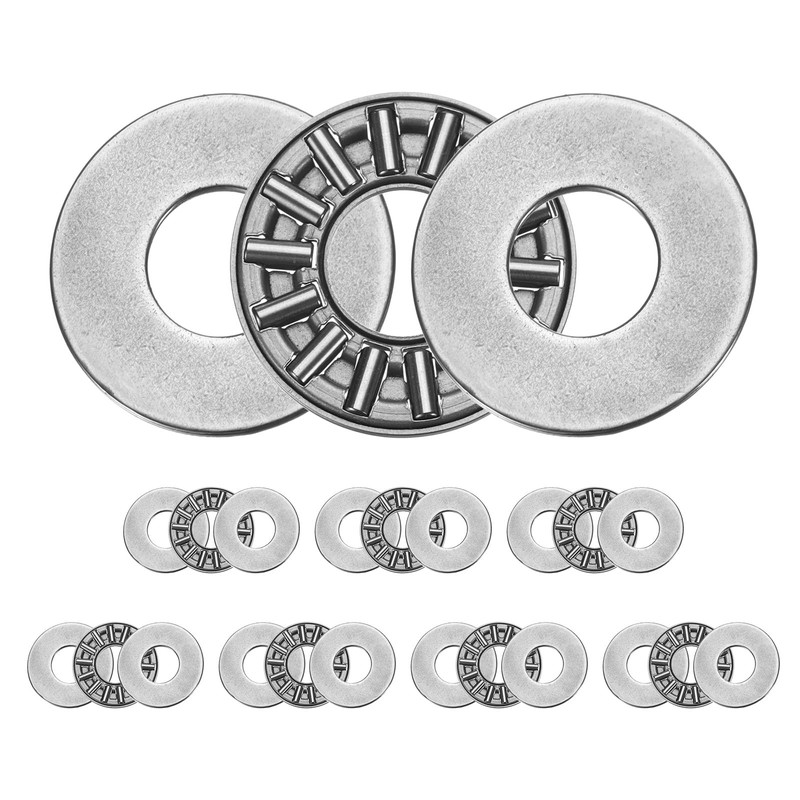

Package Content:
8 x Bearings
16 x Bearing Washers
