VONETS 5GHz Industrial Mini WLAN Router Bridge Repeater, LAN to WLAN Adapter, Wireless Bridge Converts RJ45 Connection to Wireless, 2 External Antennas, VAP11S-5G with Intelligent Cooling Fan
VONETS 5GHz Industrial Mini WLAN Router Bridge Repeater, LAN to WLAN Adapter, Wireless Bridge Converts RJ45 Connection to Wireless, 2 External Antennas, VAP11S-5G with Intelligent Cooling Fan
VONETS 5GHz Industrial Mini WLAN Router Bridge Repeater, LAN to WLAN Adapter, Wireless Bridge Converts RJ45 Connection to Wireless, 2 External Antennas, VAP11S-5G with Intelligent Cooling Fan

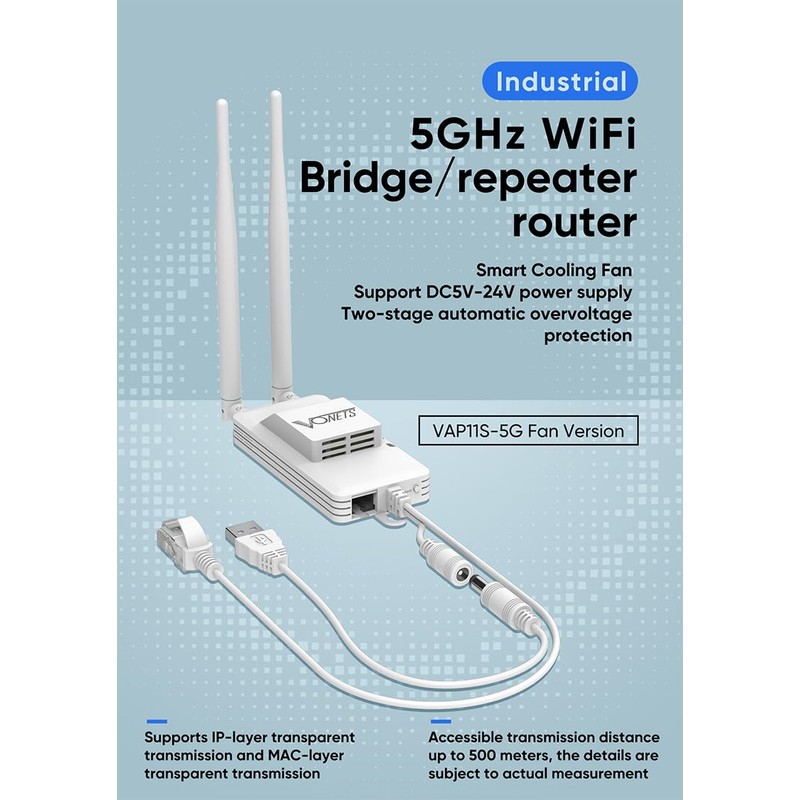

- 5 GHz WLAN bridge/repeater/router: Industrial 5GHz WLAN bridge/mini router/WiFi signal cover, LAN to WLAN adapter, WLAN amplifier LAN connection, access points; wireless bridge converts RJ45 port to wireless; with intelligent cooling fan, 5GHz WiFi external antenna x 2 pieces.
- Connect your wired device to WiFi: With this 5GHz WiFi bridge/repeater/router, Ethernet to wireless adapter, your Ethernet-enabled devices can reach the Internet via a wireless connection.

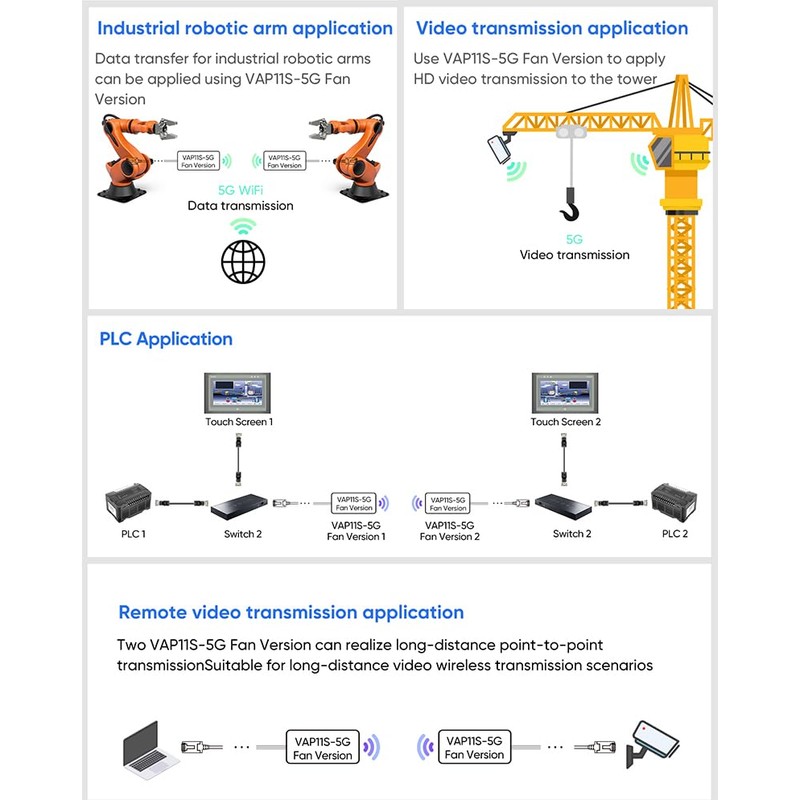

- Works with all WiFi/Ethernet-enabled devices: This WiFi to Ethernet adapter supports monitoring, DVR, IP camera, medical devices, IoT devices, video transmission, industrial PLC, AGV, NVR, network printer, Ethernet switch or computer, etc
- Multi-function mode: WiFi bridge: convert WiFi to wired (IP layer or Mac layer transparent transmission); WiFi repeater (wireless signal repeater): can extend the range of the WiFi signal, WiFi transmission and the WiFi access point (WiFi AP hotspots); router mode (supports WiFi WAN uplink and WAN/LAN exchange);
- Power and parameters: Power supply via wide voltage DC5V-24V (typical 5V/2A or 12V/1A, ripple under 100mV), two-stage automatic surge protection (protection voltage upper limit 27V), optional USB or DC power supply mode; 1 mounting kit and 1 industrial DC connector, more suitable for industrial applications
- Better WiFi signal: the Ethernet wireless adapter comes with 2 adjustable external smart WiFi antennas that receive a stronger WiFi signal than the internal antennas, supports WiFi 802.11a/ac/n, WiFi rate: 900Mbit/s; two adaptive 10/100Mbps Ethernet ports (1 RJ45 socket and 1 cable with RJ45 connector).
- Point to point transmission distance: maximum can be up to 200 metres when without obstacles and small data (after 802.11a, enhanced power), 20 to 100 metres when used for video transmission; WiFi Tx power: 19 dBm/23 dBm optional (enhanced power)
- Smart cooling fan for heat dissipation: this device is a mini high-power 5GHz WiFi bridge/repeater/router, small size, high power leads to VAP11S-5G heat, with intelligent automatic start and stop of the fan: after 5-10 minutes of normal operation, the fan cooling function will be automatically switched on, and the mini wireless bridge for intelligent automatic start and shutdown of the fan
- ★【Warm Tips】Please check the manual or configuration video in detail before use, so that a one-time configuration success, if you have any questions, please contact us: skyfoxcn@vip.163.com
| Brand: | Vonets |
|---|---|
| Manufacturer: | Shenzhen HouTian Network Communication Technology Co., Ltd. |
| Part Number: | F5T7NZF |
| Isin: | IWSQIWVTASGB |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product description:
1. Support 802.11A/AC/N transmission protocol.
2. 5 GHz wireless bandwidths are 900 Mbps. Transmission rate with external antenna faster and more stable.
3. 2 x 5G external antennas, transmitting power: 19dBm/23dBm adjustable.
4. WiFi hotspot memory, maximum memory 100 hotspots.
5. Support for simultaneous connection of more than 20 WiFi devices.
6. Built-in 2 high-performance FEM, built-in intelligent cooling fan with automatic start and stop.
7. Support SSA signal strength detection report function to realise mobile WiFi positioning.

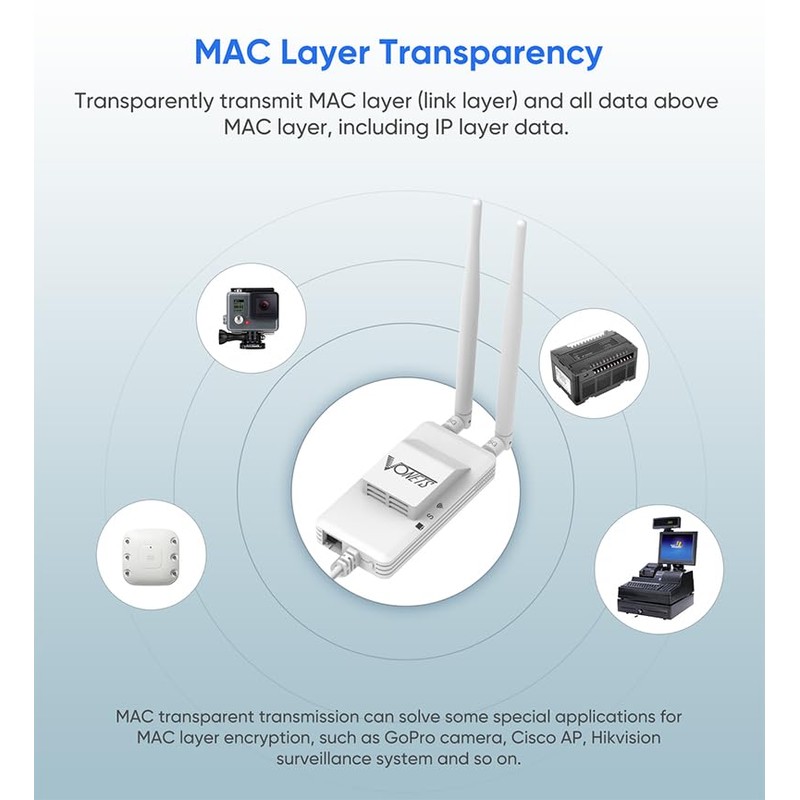

8. Supports IP layer transparent transmission and MAC layer transparent transmission.
9. Working environment temperature: -20°C to 50°C;
External interface:
1) USB/DC power supply cable.
2) 10/100 Mbps adaptive Ethernet cable.
3) 10/100 Mbps adaptive Ethernet port (a dedicated Ethernet port expander can be used).
LED status display:
Ethernet port (cable) status light (yellow);
WiFi connection status light (green).
System status light (blue).

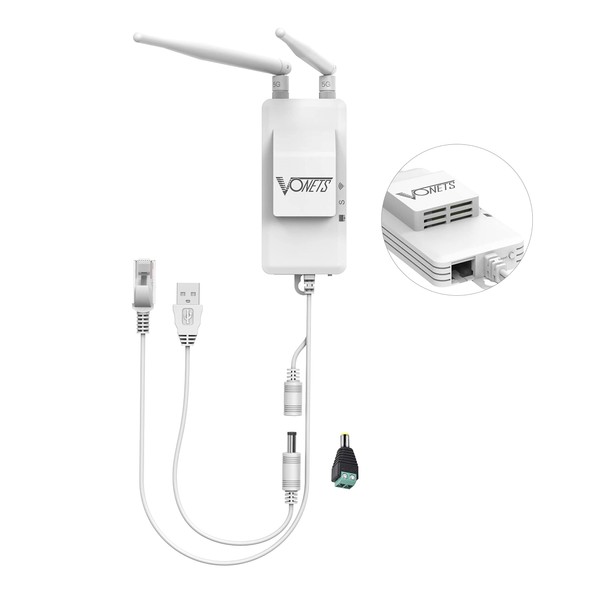

Package contents:
1 x VAP11S-5G.
2 x 5G external antennas.
1 x mounting kit.
1 x industrial DC connection.
1 x user manual.
1 x retail packaging.
