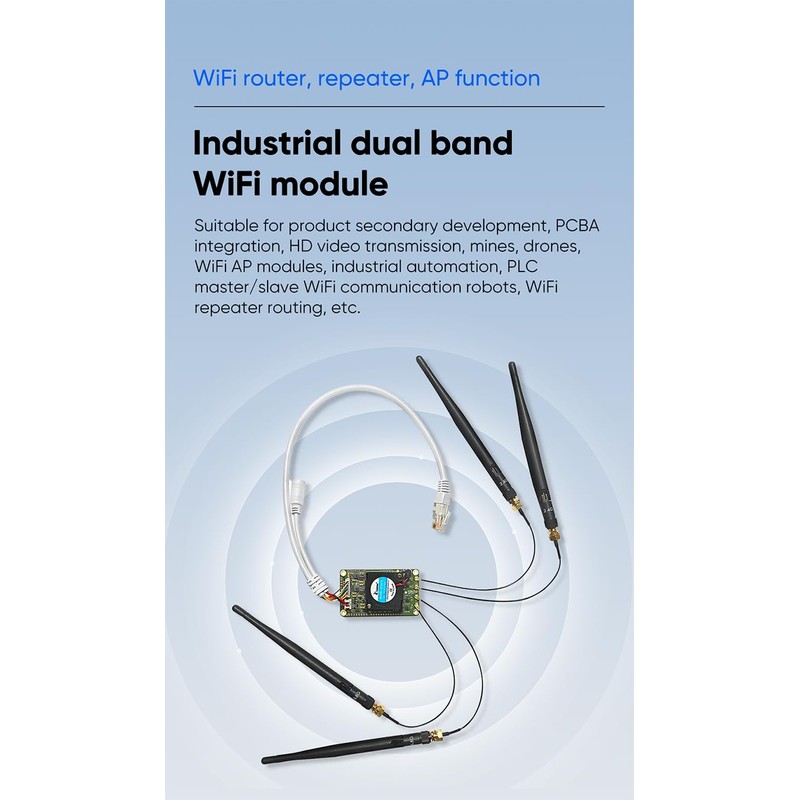

VONETS Dual Band 2.4G/5G WiFi Module WLAN Bridge Wireless Router Ethernet WiFi Hotspot Extender RJ45 LAN Adapter DIY Industrial Engineering Network Device with 4 Antennas with Cooling Fan
VONETS Dual Band 2.4G/5G WiFi Module WLAN Bridge Wireless Router Ethernet WiFi Hotspot Extender RJ45 LAN Adapter DIY Industrial Engineering Network Device with 4 Antennas with Cooling Fan
VONETS Dual Band 2.4G/5G WiFi Module WLAN Bridge Wireless Router Ethernet WiFi Hotspot Extender RJ45 LAN Adapter DIY Industrial Engineering Network Device with 4 Antennas with Cooling Fan
- 【Dual band Module/Bridge/Router】 Industrial Mini 2.4GHz/5GHz AC1200 Dual Band WiFi Module/Wireless Bridge/Router/WiFi to Ethernet Adapter/WiFi Hotspot with Ethernet port with Smart Cooling fan; can achieve WiFi to wired or wired to WiFi function (WiFi to Ethernet or Ethernet to WiFi convert)
- 【Multiple applications】 Router mode (support WiFi WAN uplink and WAN/LAN exchange of wired network ports); WiFi smart bridge repeater mode: can achieve WiFi to wired, wired to WiFi function ( IP layer or MAC layer transparent transmission); WiFi transfer and WiFi access point (WiFi AP hotspots)
- 【Suitable for WiFi or RJ45 Ethernet DIY Devices】 Great ideal for Network Printer, Monitoring, DVR, IP camera, Medical devices, IoT devices, Video transmission, POS Cash Register, PS3, Robot, Doll Machine, Electronic Scales, PLC, and more DIY Engineering network devices and applications.
- 【Powered & Parameters 】 Powered by wide voltage DC5V-24V(Typical12V/1A), two-stage automatic overvoltage protection (Protection voltage upper limit 29V), DC or USB power cable powered mode; It is convenient to share power supply with other devices and more suitable for industrial applications;
- 【Smart Cooling Fan for heat dissipation】 This device is a mini high-power dual-band WiFi Module Bridge, small size, high power will lead to VM5G heat, built with smart automatic start and stop of cooling fan: after 5-10 minutes of normal operation, the fan cooling function will be automatically turned on, and the mini Wireless Bridge/Router for smart automatic startup and shutdown of the cooling fan, more stable operation.
- 【Hardware】 One 10/100Mbps adaptive Ethernet port/cable (RJ45 male) and one USB/DC power cable(30cm); 2 pcs 2.4GHz and 2pcs 5GHz external antennas; 10/100Mpbs network port.
- 【Warm Tips】 Please check the Manual or Configuration Video in detail before use, so that a one-time configuration success, if you have any questions, contact us: skyfoxcn@vip.163.com
| Brand: | Vonets |
|---|---|
| Manufacturer: | Shenzhen HouTian Network Communication Technology Co., Ltd. |
| Part Number: | WXS5FHB |
| Product Dimensions: | 5.12 x 3.94 x 0.87 inches; 3.52 ounces |
| Isin: | I2K29SDONITW |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Function Features:
1. Support Router and Bridge mode.
(1) In Router mode, support WiFi WAN Access and WAN/LAN exchange; WAN/LAN switching of wired network ports;
(2) WiFi smart Bridge Mode: can achieve WiFi to wired, wired to WiFi function;
WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;
2. The output power of the power supply is not less than 10W (typical power supply 12V/1A);
3. Support UART/UDP data transmission;
4. Built-in intelligent automatic start/stop cooling fan, can dissipate heat better, more stable operation, built-in 2 high-performance FEM.
5. Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
6. WiFi hotspot memory, maximum memory 10 hotspots. Support connecting more than 20pcs WiFi terminal at the same time;
7. Support SSA protocol, built-in hot spot signal strength detection and reporting function to realize WiFi mobile positioning.
8. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications.
Hardware Features:
1. Support wide voltage DC5V-24V power supply (typical 12V/1A).
2. The module built-in LNA, the receiving sensitivity is 14dBi
3. Provide a TTL level UART data transparent transmission interface.
4. Work Environment temperature: -20℃ to 50℃.
Application Method:
(WiFi signal Repeater), can extend WiFi transmission distance;
WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission;
WiFi access point (AP);
Router mode, support WiFi WAN access and WAN/LAN exchange;
Hardware Specification:
External interface: 1 USB/DC power cable;
A set of 10/100Mbps adaptive Ethernet cable;
Reset button:
Long press 5 seconds then release (During operation, the product can not be powered down, otherwise it may cause damage to the product.)
LED Status instruction
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);
Package:
VM5G-fan *1
2.4GHz external antennas *2
5GHz external antennas *2
Industrial DC Connector *1
Fixing kit *1
User manual *1
Retail box*1
