VONETS Industrial Dual Band 2.4GHz/5GHz WiFi Serial Port Server/WiFi Bridge Wireless Repeater Mini Router, WiFi Signal Extender Hotspot Cover for Medical Devices, AGV, Network Devices VAP11S-D232
VONETS Industrial Dual Band 2.4GHz/5GHz WiFi Serial Port Server/WiFi Bridge Wireless Repeater Mini Router, WiFi Signal Extender Hotspot Cover for Medical Devices, AGV, Network Devices VAP11S-D232
VONETS Industrial Dual Band 2.4GHz/5GHz WiFi Serial Port Server/WiFi Bridge Wireless Repeater Mini Router, WiFi Signal Extender Hotspot Cover for Medical Devices, AGV, Network Devices VAP11S-D232
- đ¶ ăDual band WiFi Serial Port Server/BridgeăIndustrial Dual band 2.4GHz/5GHz Serial Port Server WiFi Bridge Wireless Repeater WiFi to Ethernet Adapter; can achieve WiFi to Wired or Wired to WiFi function; Support 802.11b/g/n/a/ac, WiFi rate: 2.4GHz: 300Mbps+5GHz: 900Mbps (theoretical value);
- đăMultiple Application MethodsăSerial port mode, support WiFi Serial port conversion (the forwarding function is enabled by default (instant forwarding, UDP protocol, broadcasting allowed); WiFi Bridge: WiFi to Wired convert; WiFi Repeater (Wireless Signal Repeater): can extend the distance of WiFi signal coverage, WiFi transfer and WiFi access point (WiFi AP hotspots); Router mode (support WiFi WAN uplink and WAN/LAN exchange)
- đăSuitable for WiFi/Wired or Serial Port DevicesăGood Partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, video transmission, Industrial PLC, AGV, PS3, Network Printer, Robots, Telescope and more with RJ45 Ethernet port or WiFi Network devices and RS-232 Port Serial interface Device Server applications.
- đăPower & ParametersăUSB or DC optional powered mode, Support wide voltage DC5V-24V power supply, Typical Standard 5V/2A or 12V/1A (ripple less than 100mV), two-level automatic overvoltage protection, 27V overvoltage protection point;
- đăNetwork Ports & Serial portsăDual UART serial ports (TTL level), One 10/100Mbps adaptive Ethernet port, one RJ45 motherboard (UART serial port: supporting TTL level (LVTTL-3.3V) or CMOS level -3.3V), VDB9-232 (optional): RJ45 to DB9 motherboard (line built-in chip to RS232 level), RJ45 to 5Pin wiring base, VRJ45-422-1 (built-in RS485/RS422 chip, with toggle switch switching, supporting TTL level (3.3V).
- đ„ăFunction & Technical Applicationă Serial transparent transmission (serial data to Ethernet packet) supports one-to-one transparent transmission and one-to-many transparent transmission, ordinary transparent transmission modules only support one-to-one transparent transmission, Support IP layer (default) and MAC layer transparent transmission in two bridge modes, can solve some special application for MAC layer encryption
- â ăWarm Tipsă Please check the manual or configuration video in detail before use, so that a one-time configuration success, if you have any questions, contact us: skyfoxcn@vip.163.com
Brand: | Vonets |
---|---|
Color: | 2.4G+5G Serial Port/Bridge/Router |
Manufacturer: | Shenzhen HouTian Network Communication Technology Co., Ltd. |
Part Number: | 3H28Q5V |
Isin: | IIFOMCEEIQR2 |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Basic functions

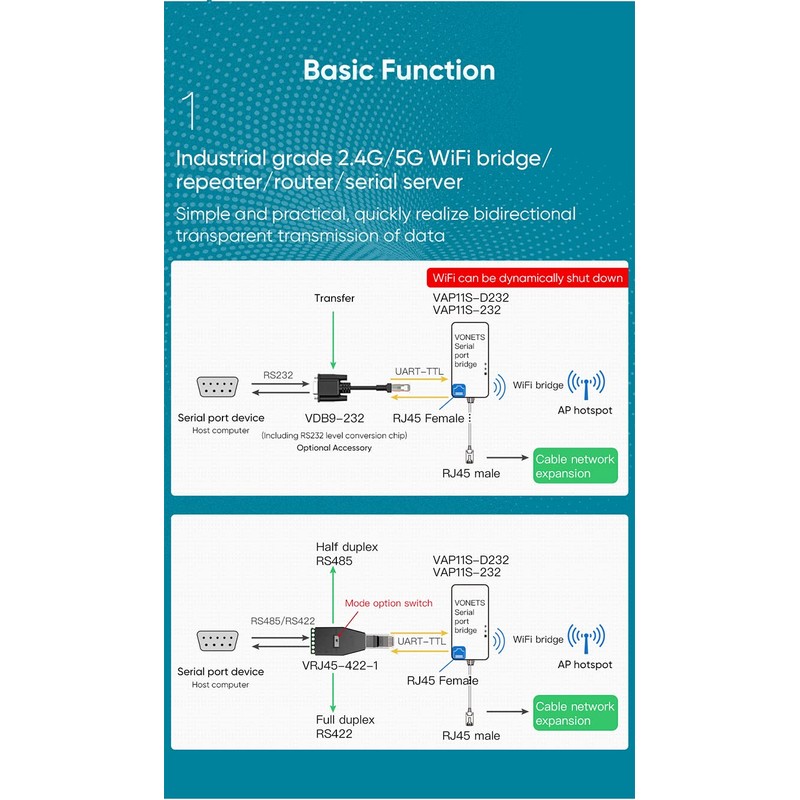

1) Serial port mode, support WiFi, Serial port conversion (the forwarding function is enabled by default (instant forwarding, UDP protocol, broadcasting allowed);
2) WiFi Bridge Mode: Transparent bridge (IP layer transparent transmission, MAC layer transparent transmission);
3) Routing mode, support WiFi access;
4) WiFi transmission protocol: 802.11a/ac/n/b/g;
5) Transmission power: 2.4G is 15dBm, 5G is 19dBm/23dBm, optional 6) WiFi hotspots automatically reconnect, two hotspot matching methods: full matching authentication mode, SSID and password authentication mode;
7) WiFi hotspot memory, up to 100 hotspots;
8) SSA signal strength detection and reporting function;
Application method
WiFi Serial Server;
WiFi Repeater (WiFi signal Repeater), can extend WiFi transmission distance;
WiFi Bridge: WiFi to wired convert;
WiFi access point (AP);
LED Status indication:
Ethernet port (line) status light (yellow);
2.4G WiFi connection status light (blue);
5G WiFi connection status light (green);
External interface
1) DC/USB power supply line;
2) 10/100M adaptive Ethernet cable;
3) One RJ45 female socket (UART serial port: support TTL level (LVTTL-3.3V) or CMOS level -3.3V), optional: VDB9-232 (optional accessory), VDB9-232X2 (optional accessory), VRJ45-COM -2 (option) VRJ45-422-1 (option);
Optional accessories:
Support RS232: DB9-232, VDB9-232-X2 (built-in RS232 chip); Support RS485/RS422: VRJ45-422-1 (built-in RS485/RS422 chip, with toggle switch); Support TTL level (3.3V): VRJ45-5P adapter;
Packages:
VAP11S-D232*1
Fixing kit*1
Industrial DC connector*1
User manual*1
Retail Box*1
