Vonets VM300-H Module WiFi Bridge Ethernet/WLAN Repeater/Mini Router 2.4GHz Industrial-Grade with 2 External Antennas, Suitable for Industrial Integration and Secondary Development
Vonets VM300-H Module WiFi Bridge Ethernet/WLAN Repeater/Mini Router 2.4GHz Industrial-Grade with 2 External Antennas, Suitable for Industrial Integration and Secondary Development
Vonets VM300-H Module WiFi Bridge Ethernet/WLAN Repeater/Mini Router 2.4GHz Industrial-Grade with 2 External Antennas, Suitable for Industrial Integration and Secondary Development

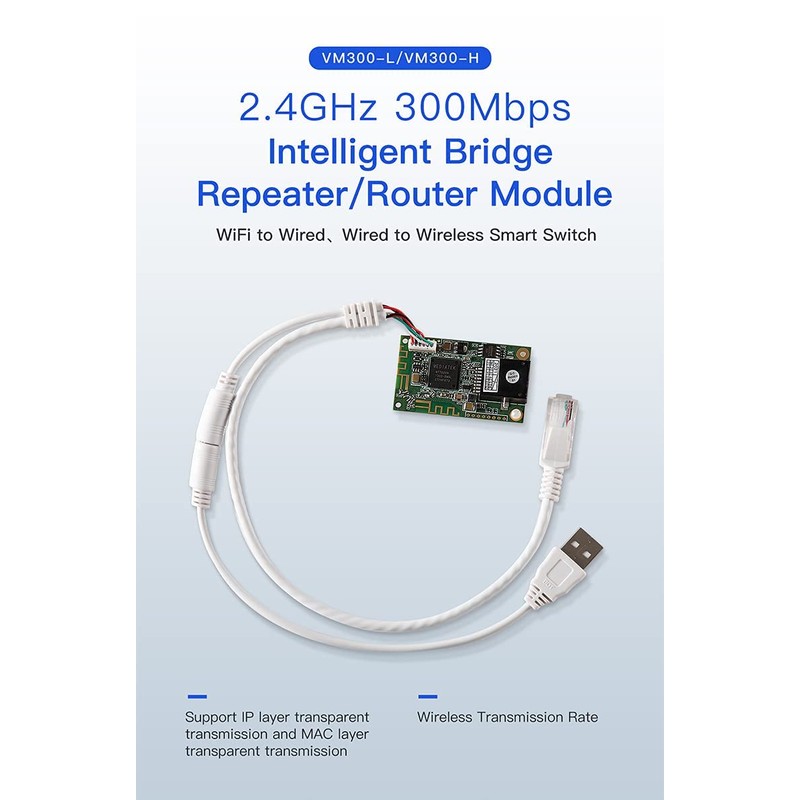

- ✅【Modular Industrial WiFi Bridge/Router】 2.4GHz Modular Industrial WiFi Mini Router/Bridge/Repeater/WiFi Access Point/Wireless to Ethernet RJ45/Wireless Adapter for WiFi to Wired or Wired to WiFi
- ✅【Configuration Parameters】 2.4GHz WiFi frequency: 300 Mbps, 802.11b/g/n protocol support; supports wide voltage DC 5V-15V (typical 5V/1A, ripple less than 100mV); Equipped with 1 * DC or optional USB port, 1 * 30cm power cable
- ✅【RF Power and Transmission Distance】 RF output power of the module: 14.5dBm/16dBm (two-level output power adjustable); Transmission distance (2.4G point-to-point barrier-free, small data transmission): about 80 meters
- ✅【Mini Size and Modular Type】 Card type size takes up less space and is easy to carry; the module type is more suitable for industrial integration and secondary development
- ✅【Scope of Application】 Applicable to most of the devices that need to be connected to the internet, such as robots, claw machines, electronic scales, cameras, game consoles and most other WiFi network applications
| Brand: | Vonets |
|---|---|
| Color: | 2,4 GHz. |
| Manufacturer: | Shenzhen Houtian Network Communication Technology Co.,Ltd |
| Part Number: | NN3VLS7 |
| Isin: | IFPMVB4AN7UM |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
VM300-H es un puente, repetidor y enrutador profesional de 2,4 GHz con mini módulo, cuidadosamente desarrollado por Houtian Network. Cuenta con tecnología de control de frecuencia automático (TAFC) con compensación de temperatura y la señal WiFi es más estable y no se cae fácilmente.
Características:
1. Soporte para modo de router y puente.
2. Soporta modo 802.11b/g/n.
3. Soporta 1 – 14 canales WiFi;
4. Soporta la reconexión automática de puntos de acceso WiFi, dos métodos de personalización de puntos de acceso: modo de autenticación completo, autenticación SSID y modo de contraseña.
5. Almacenamiento de puntos de acceso WiFi, almacenamiento máximo de 100 puntos de acceso.
6. Soporta conectar más de 20 terminales WiFi al mismo tiempo.
7. Soporte de reenvío de puertos TTL seriales: soporte de transmisión transparente de datos UART / UDP, UART / TCP
8. El tipo de módulo soporta el desarrollo secundario; < br>
Características del hardware:
1. Amplio voltaje de funcionamiento de la unidad de alimentación: DC5V - 15V;

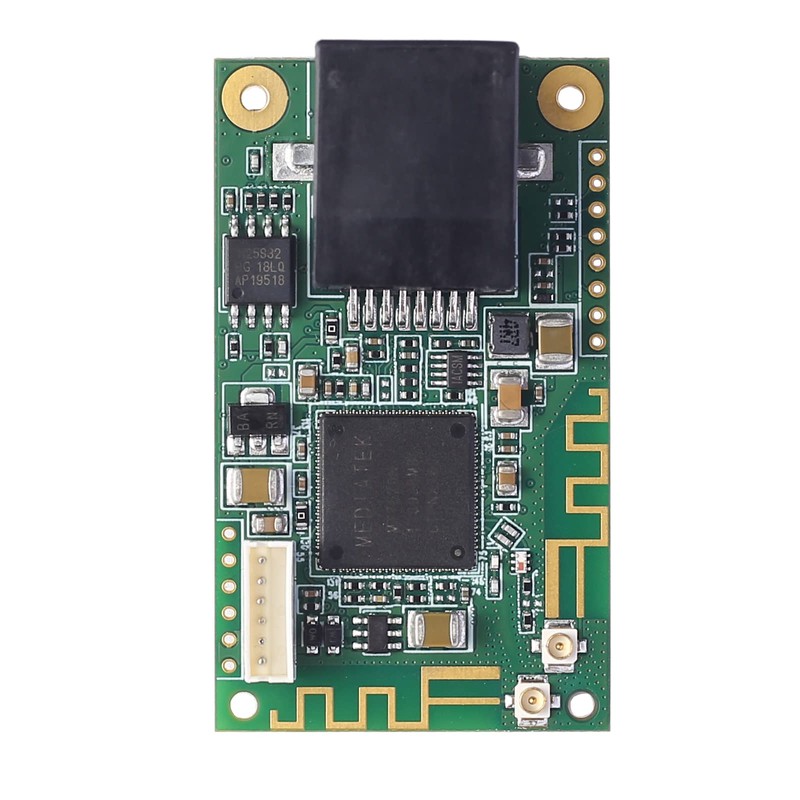

2. Chip principal: MT7620N, 580MHz;
3. 32 MB SDRAM, se puede ampliar a 64 MB; 4 MB SPI Flash, se puede ampliar a 16 MB (byte);
4. Temperatura del entorno de trabajo: -25 ℃ - 55 ℃;
5. Indicador de estado LED:
Visualización de estado del puerto Ethernet (verde);
Luz indicadora de estado de conexión WiFi 2.4G (azul);

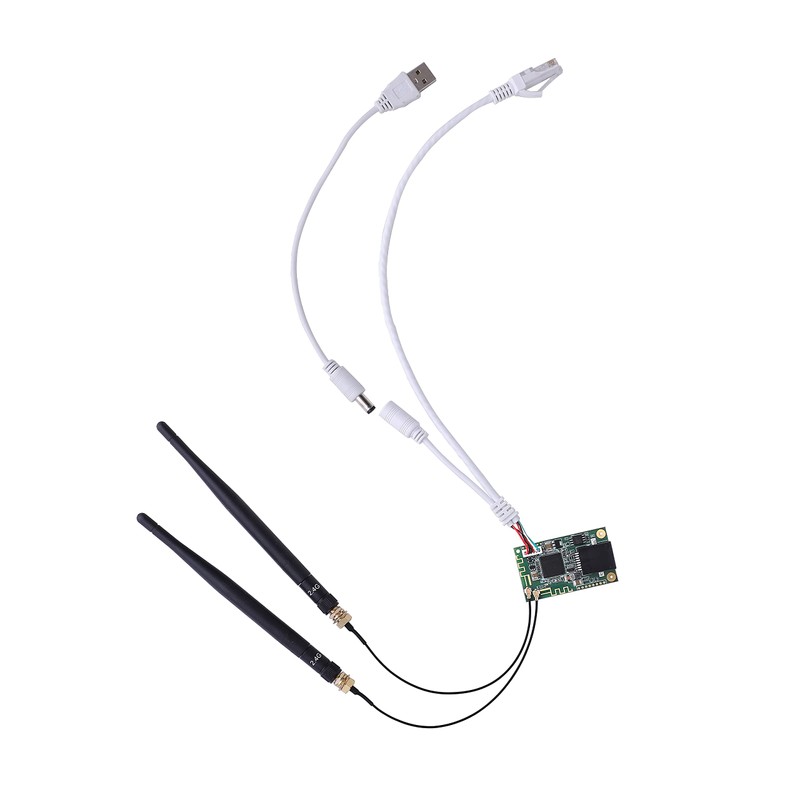

6. Interfaz de antena: 2 x 3dBi 2.4G antena externa;
7. Proporciona interfaz de transmisión transparente de datos UART de nivel TTL.
8. Botón de reinicio (mantén pulsado la liberación después de 5 segundos y espera un minuto, el dispositivo restaura automáticamente la configuración de fábrica).
Paquete:
1 VM300-H.
2 antenas 3dBi 2,4G;
1 manual de instrucciones.
< b> Si tienes alguna pregunta, por favor envía un correo electrónico htxeu2021@163.com, puedes resolver la pregunta rápidamente
