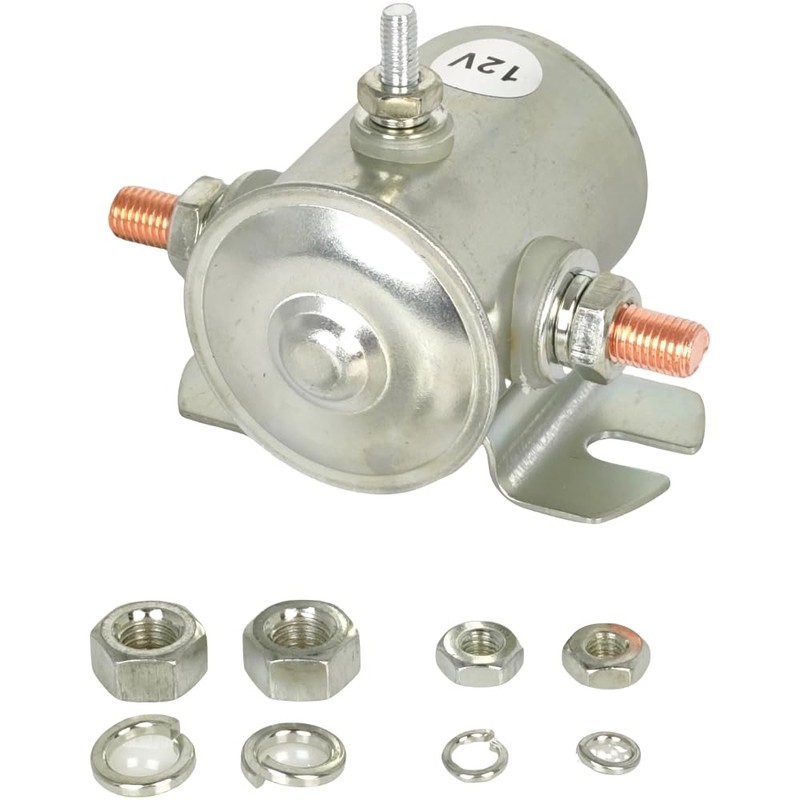

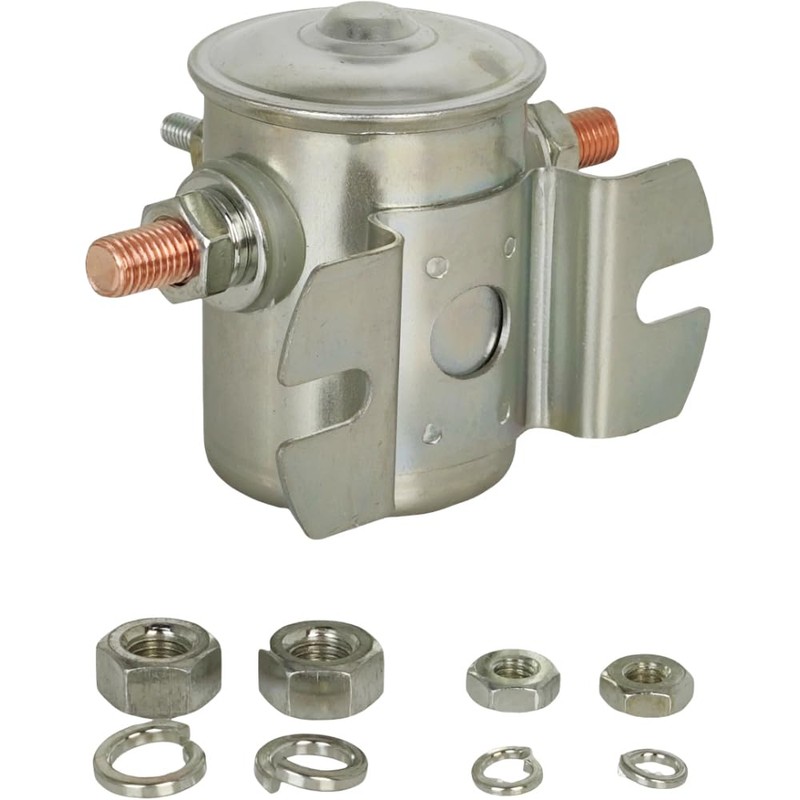

XYZIL 12V 3 Terminal Continuous Solenoid Relay 1114240 Compatible with Winch Marine Golf Cart SPST Max 200A 1114241 1114538 97240-X 70091714 974-1215-10-16934-1215-010-16 007277 SPST Grounded
XYZIL 12V 3 Terminal Continuous Solenoid Relay 1114240 Compatible with Winch Marine Golf Cart SPST Max 200A 1114241 1114538 97240-X 70091714 974-1215-10-16934-1215-010-16 007277 SPST Grounded
XYZIL 12V 3 Terminal Continuous Solenoid Relay 1114240 Compatible with Winch Marine Golf Cart SPST Max 200A 1114241 1114538 97240-X 70091714 974-1215-10-16934-1215-010-16 007277 SPST Grounded
- Part Number: 1114240, 1114241, 1114538, 97240-X, 70091714, 974-1215-10-16, 934-1215-010-16, 934121501016, 9341215010, 007277, SO51175, 15-139, SAS4208
- This relay can be used for the following applications: Marine equipment, Winches, Military vehicles, Hydraulic control units, Golf carts, Factory machines.
- Voltage: 12VDC
- Continuous Duty
- Max Transient Flash Current: 200Amp, Continuous Working Current: Under 80Amp
- Number of Terminals: 3
- Contact Material: Copper
- Contact Studs: 5/16 -24 Studs Standard & Long, Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.
| Brand: | XYZIL |
|---|---|
| Manufacturer: | XYZIL |
| Part Number: | 8QM9181 |
| Isin: | IEQWTJ7LXVTL |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1114240, 1114241, 1114538, 97240-X, 70091714, 974-1215-10-16, 934-1215-010-16, 934121501016, 9341215010, 007277
Specification:
Voltage: 12VDC
Continuous Duty
Max Transient Flash Current: 200Amp
Continuous Working Current: Under 80Amp
Resistance: 14.4Ω
Number of Terminals: 3
Contact Material: Copper
Contact Studs: 5/16 -24 Studs Standard & Long
Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.
This relay can be used for the following applications:
Marine equipment
Winches
Military vehicles
Hydraulic control units
Golf carts
Factory machines
Installation:
One side goes to Battery, opposite side to starter, top screw which is smaller goes to switch or key start only. It is already grounded internal.
When wiring the system, please note:
For an energizing circuit typically using 16/18 AWG wire, suggest a 5amp fuse for protection.
If using 10 AWG wire, suggest a 30 amp automatic circuit breaker.
For an 8 AWG wire connected to a high output alternator, recommend a 50 Amp automatic circuit breaker.
Package List: 1X Solenoid Relay
