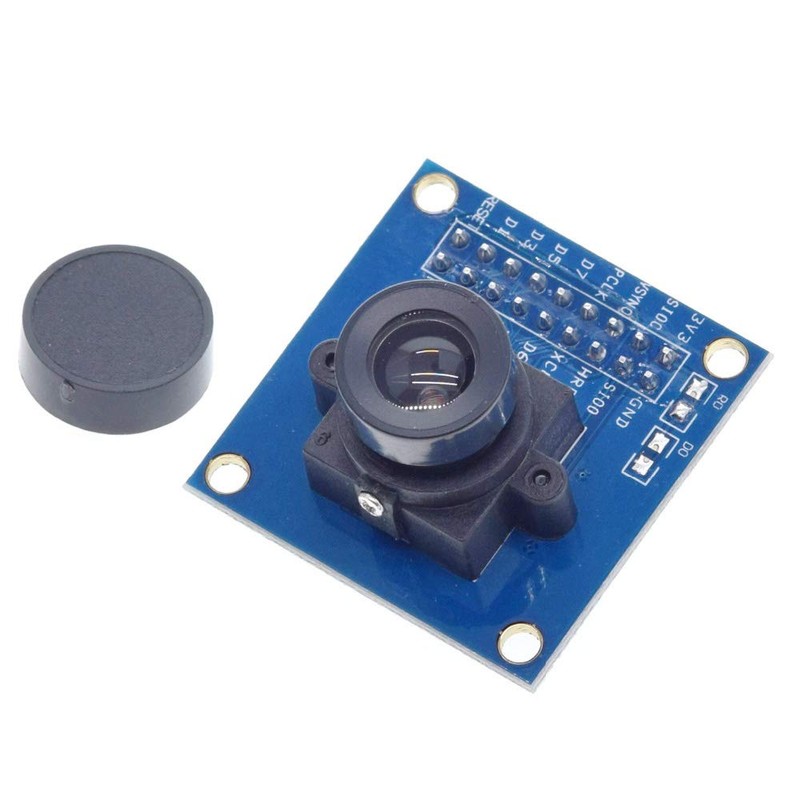

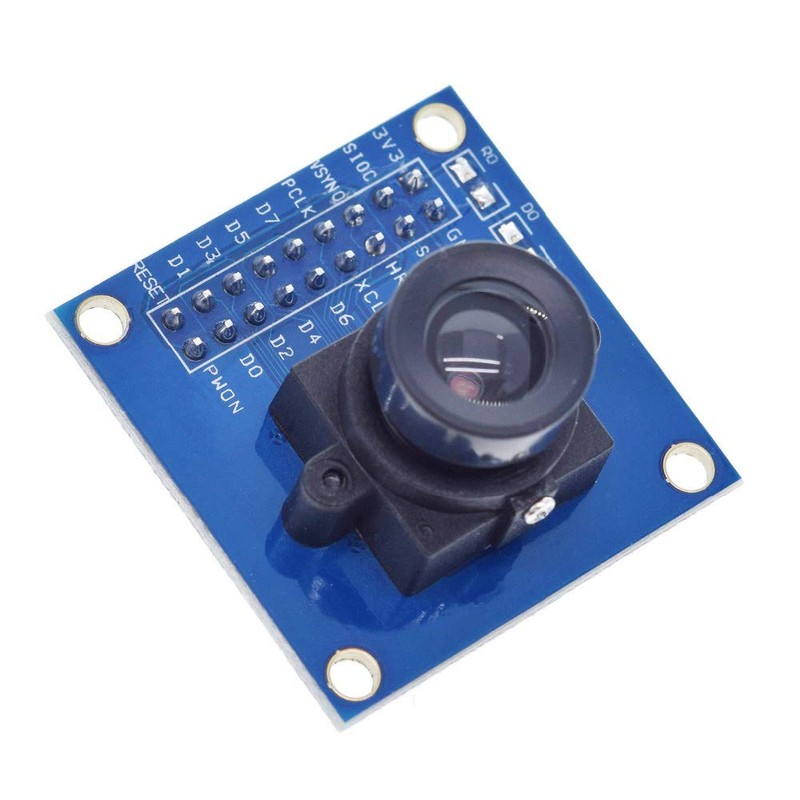

Youmile 2pcs OV7670 Camera Module 640x480 0.3Mega 300KP VGA CMOS I2C Module for Arduino ARM with Dupont Cable
Youmile 2pcs OV7670 Camera Module 640x480 0.3Mega 300KP VGA CMOS I2C Module for Arduino ARM with Dupont Cable
Youmile 2pcs OV7670 Camera Module 640x480 0.3Mega 300KP VGA CMOS I2C Module for Arduino ARM with Dupont Cable
- Resolution: 640 x 480 VGA; IO Voltage: 2.5 V to 3.0 V (internal LDO power to core); Power operation: 60 mW / 15 fps VGAYUV
- The process of imaging capabilities such as gamma curve, white balance, saturation and saturation can be done through the SCCB programming interface. OmmiVision image sensor application with sensor technology provides a crisp and stable color image by improving image quality by using fixed pattern noise, tail, raised etc
- Low automatic control features such as automatic exposure control, automatic gain control, automatic white balance, auto removal of light stripes, black level calibration. ANTI_BLOOM for image quality control including saturation, hue, gamma, and sharpness
- RawRGB, RGB(GRB4:2:2, RGB565 / 555/444), YUV(4:2:2) and YCbCr(4:2:2) output format. Second place supports VGA, CIF, and CIF up to 40 times of various sizes
- Package Contents: 2 x OV7670 Camera Module, 1 x 11.8" Male to Male Dupont Cable 40PIN
| Brand: | Youmile |
|---|---|
| Manufacturer: | Youmile |
| Part Number: | SM1H6FK |
| Isin: | IA5LOEZOEUYS |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Function:
1 Low sensitivity for low-light applications
2. Low voltage is suitable for embedded applications
3 Low standard SCCB interface compatible with I2C interface
4 RawRGB, RGB(GRB4:2:2, RGB565 / 555/444), YUV(4:2:2), YCbCr(4:2:2) output format.
5 The second rank supports VGA, CIF, and CIF to 40x of various sizes
6 Low VarioPixel Sampling Method
7 Low ISP eliminates noise and bad point correction
8 Low support image zoom
9 Low Lens Light Correction
10 Low 50/60Hz automatic detection
11 Automatically adjusts low saturation (UV)
12 Low Edge Enhancement Automatic Adjustment
13 Automatically adjusts low noise reduction
Parameter:
1 Sensitive Array 640x480
2. 2.5V to 3.0V IO voltage (1.8V from internal " to nuclear power)
3. Power loss work 60mw / 15 fpsvgayuv
4. Less than 20 mu A
5. Operating temperature: -30C to 70C
6. Stable operation 0C - 50C
7. Output format (8 bit)? YUV / YCbCr4:2-2 RGB565 / 555/444 GRB4:2-2 RGB Data
8. Optical Size: 1/6"
9 25° viewing angle
10 Maximum performance world rate: 30 FPS VGA
11 Sensitivity of 1.3V / (Lux-SEC)
12 46 dB SNR
13 52dB dynamic range
14 Refers to the mode one by one line
15 Electronic Exposure Line 1 to 510
16 3.6μm x 3.6 micron pixel area
17 Dark Current: 12 mV / s (60C)
Package Includes:
2 x OV7670 Camera Module
1 x 11.8" Male to Male Dupont Cable 40 Pin
1 Low sensitivity for low-light applications
2. Low voltage is suitable for embedded applications
3 Low standard SCCB interface compatible with I2C interface
4 RawRGB, RGB(GRB4:2:2, RGB565 / 555/444), YUV(4:2:2), YCbCr(4:2:2) output format.
5 The second rank supports VGA, CIF, and CIF to 40x of various sizes
6 Low VarioPixel Sampling Method
7 Low ISP eliminates noise and bad point correction
8 Low support image zoom
9 Low Lens Light Correction
10 Low 50/60Hz automatic detection
11 Automatically adjusts low saturation (UV)
12 Low Edge Enhancement Automatic Adjustment
13 Automatically adjusts low noise reduction
Parameter:
1 Sensitive Array 640x480
2. 2.5V to 3.0V IO voltage (1.8V from internal " to nuclear power)
3. Power loss work 60mw / 15 fpsvgayuv
4. Less than 20 mu A
5. Operating temperature: -30C to 70C
6. Stable operation 0C - 50C
7. Output format (8 bit)? YUV / YCbCr4:2-2 RGB565 / 555/444 GRB4:2-2 RGB Data
8. Optical Size: 1/6"
9 25° viewing angle
10 Maximum performance world rate: 30 FPS VGA
11 Sensitivity of 1.3V / (Lux-SEC)
12 46 dB SNR
13 52dB dynamic range
14 Refers to the mode one by one line
15 Electronic Exposure Line 1 to 510
16 3.6μm x 3.6 micron pixel area
17 Dark Current: 12 mV / s (60C)
Package Includes:
2 x OV7670 Camera Module
1 x 11.8" Male to Male Dupont Cable 40 Pin
